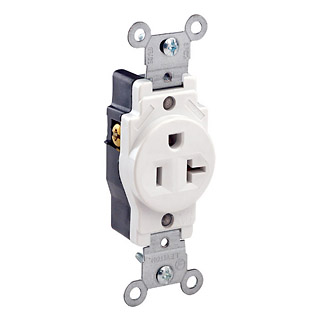

Leviton® 5891-W Straight Blade Single Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Leviton® 5891-W Straight Blade Single Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU72534
MFGR #5891-W
Your Cost: $15.44/ea
List: Leviton® line of Heavy Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Leviton® line of Heavy Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 5891-W Connection Back and Side Wired Country of Origin MX Currency USD Depth 16 in Dielectric Strength 2000 (Min.) V Dimensions 46 in H x 1.38 in W x 16 in D Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 0.1700 lb Gross Weight per Pack Metric 0.08 Gross Weight UOM Metric kg Height 10.0000 in Height [Metric] 10.4775 cm Horsepower 1 hp Length 20.0000 in Length [Metric] 4.7625 cm Material Nylon Mounting Wall Box NEMA Rating 5-20R Number Of Poles 2 Phase 1 Size 46 H x 1.38 W x 16 D in Standard NEMA (WD-2, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) Standards ANSI (C-73), CSA C22.2 NO 42 (File 152105), NEMA (WD-2, WD-6), NOM Certified (057), RoHS Compliant, UL Fed Spec WC-596 (File E13399), UL Listed 498 (File E13399) Temperature Rating -40 to +60 °C Terminal Type Back/Side Wired Type Straight Blade;Single Outlet UNSPSC 39121406 UPC 11 07847725137 UPC 12 078477251379 Width 1.38 in Width [Metric] 3.4925 cm Wire Size 14-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color White Number of Wires 3 Voltage Rating 125 V Commercial Wallbox mounting Grounding 1-phase Heavy duty Narrow body 2000 V (min) dielectric strength UL 94 V-2 flammability rating Zinc plated steel strap 14 - 10 AWG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5891-W |
| Connection | Back and Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 16 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 46 in H x 1.38 in W x 16 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 0.1700 lb |
| Gross Weight per Pack Metric | 0.08 |
| Gross Weight UOM Metric | kg |
| Height | 10.0000 in |
| Height [Metric] | 10.4775 cm |
| Horsepower | 1 hp |
| Length | 20.0000 in |
| Length [Metric] | 4.7625 cm |
| Material | Nylon |
| Mounting | Wall Box |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 46 H x 1.38 W x 16 D in |
| Standard | NEMA (WD-2, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| Standards | ANSI (C-73), CSA C22.2 NO 42 (File 152105), NEMA (WD-2, WD-6), NOM Certified (057), RoHS Compliant, UL Fed Spec WC-596 (File E13399), UL Listed 498 (File E13399) |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back/Side Wired |
| Type | Straight Blade;Single Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847725137 |
| UPC 12 | 078477251379 |
| Width | 1.38 in |
| Width [Metric] | 3.4925 cm |
| Wire Size | 14-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Wallbox mounting |
| Grounding |
| 1-phase |
| Heavy duty |
| Narrow body |
| 2000 V (min) dielectric strength |
| UL 94 V-2 flammability rating |
| Zinc plated steel strap |
| 14 - 10 AWG |
