Leviton®

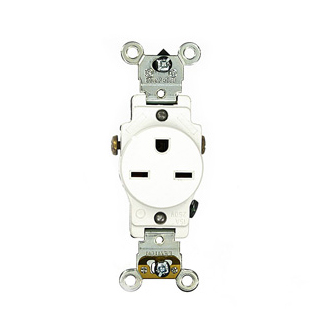

Leviton® 5651-W 1-Phase Heavy Duty Single Straight Blade Receptacle, 250 VAC, 15 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Leviton®
Leviton® 5651-W 1-Phase Heavy Duty Single Straight Blade Receptacle, 250 VAC, 15 A, 2 Poles, 3 Wires, White
SKU1287387
MFGR #5651-W
Your Cost: $8.26/ea
List: Leviton®, 5651-W, Straight Blade Receptacle, 1-Phase Heavy Duty Single, 250 VAC, 15 A, 1-1/2 hp, 2 Pole, 3 Wires, NEMA 6-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Polypropylene/Thermoplastic, White, 46 in H x 1.31 in W x 16 in D Dimensions
Leviton®, 5651-W, Straight Blade Receptacle, 1-Phase Heavy Duty Single, 250 VAC, 15 A, 1-1/2 hp, 2 Pole, 3 Wires, NEMA 6-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Polypropylene/Thermoplastic, White, 46 in H x 1.31 in W x 16 in D Dimensions
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 5651-W Connection Side Wired Country of Origin MX Currency USD Depth 16 in Dielectric Strength 2000 (Min.) Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Gross Weight Per Pack 0.1700 lb Gross Weight per Pack Metric 0.08 Gross Weight UOM Metric kg Hazard Class N Height 8.7500 in Height [Metric] 10.4775 cm Length 12.2500 in Length [Metric] 4.7625 cm Material Thermoplastic;Polypropylene Mounting Wallbox NEMA Rating 6-15R Phase 1 Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) Type Single Outlet;Straight Blade UNSPSC 39121406 UPC 11 07847783390 UPC 12 078477833902 Width 1.38 in Width [Metric] 3.4925 cm Wire Size 14-10 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Number of Wires 3 Voltage Rating 250 Commercial Impact resistant thermoplastic nylon cover and body Four corner latches securely fasten face Large triple wipe, brass T contacts for superior contact and conductivity Back and side wiring options Brass terminal screws to reduce conductor oxidation Break-OFF tabs allow easy 2-circuit conversion Apron barrier to prevent accidental contact between terminal screw heads and metal box Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity Wire lead receptacles for fast and easy installation Self-grounding 1-phase
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5651-W |
| Connection | Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 16 in |
| Dielectric Strength | 2000 (Min.) |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.1700 lb |
| Gross Weight per Pack Metric | 0.08 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 8.7500 in |
| Height [Metric] | 10.4775 cm |
| Length | 12.2500 in |
| Length [Metric] | 4.7625 cm |
| Material | Thermoplastic;Polypropylene |
| Mounting | Wallbox |
| NEMA Rating | 6-15R |
| Phase | 1 |
| Standard | ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| Type | Single Outlet;Straight Blade |
| UNSPSC | 39121406 |
| UPC 11 | 07847783390 |
| UPC 12 | 078477833902 |
| Width | 1.38 in |
| Width [Metric] | 3.4925 cm |
| Wire Size | 14-10 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Number of Wires | 3 |
| Voltage Rating | 250 |
| Commercial |
| Impact resistant thermoplastic nylon cover and body |
| Four corner latches securely fasten face |
| Large triple wipe, brass T contacts for superior contact and conductivity |
| Back and side wiring options |
| Brass terminal screws to reduce conductor oxidation |
| Break-OFF tabs allow easy 2-circuit conversion |
| Apron barrier to prevent accidental contact between terminal screw heads and metal box |
| Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity |
| Wire lead receptacles for fast and easy installation |
| Self-grounding |
| 1-phase |
