Leviton®

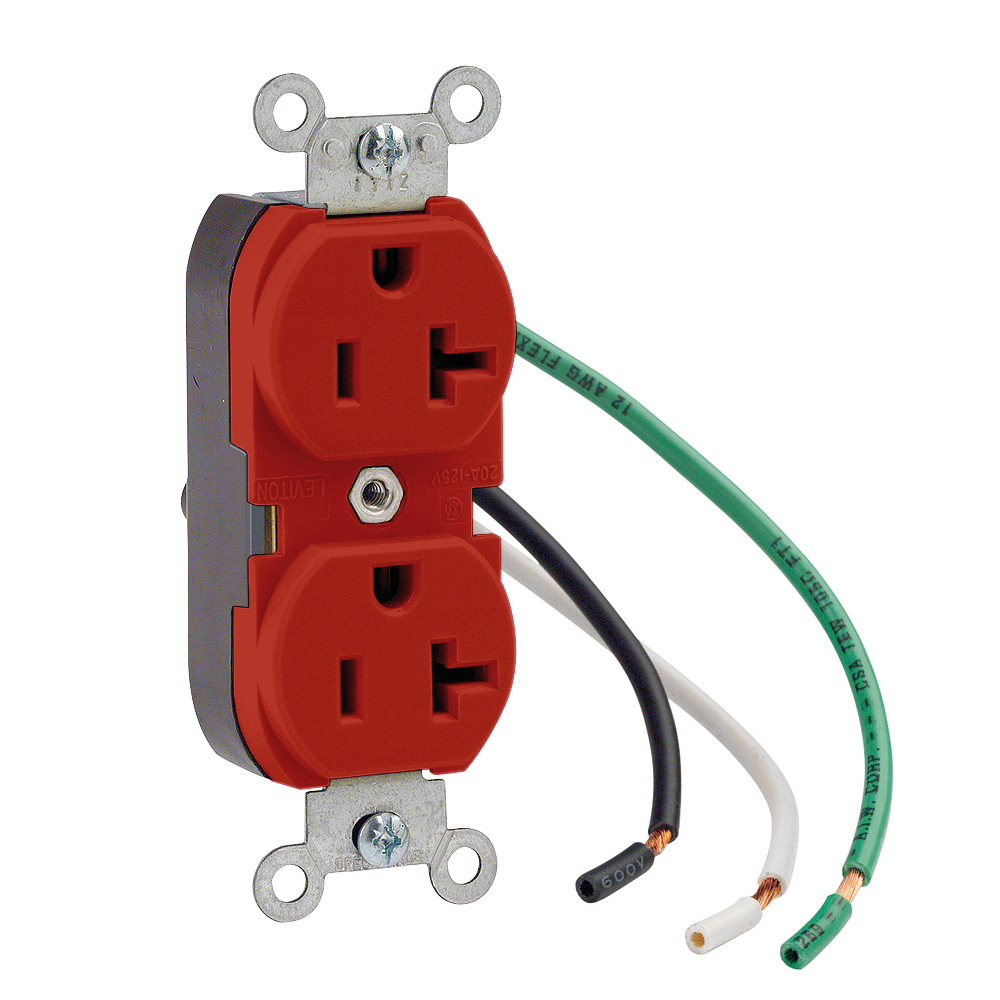

Leviton® 5362-LR 1-Phase Duplex Heavy Duty Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Custom_Product_Images_Illustration
Leviton®
Leviton® 5362-LR 1-Phase Duplex Heavy Duty Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
SKU1287414
MFGR #5362-LR
$/ea
Leviton®, 5362-LR, Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Red, 46 in H x 1.53 in W x 1.11 in D Dimensions
Leviton®, 5362-LR, Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Red, 46 in H x 1.53 in W x 1.11 in D Dimensions
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 5362-LR Connection Back and Side Wired Country of Origin MX Currency USD Depth 1.11 in Dielectric Strength 2000 (Min.) Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Gross Weight Per Pack 22.8600 lb Gross Weight UOM Metric kg Hazard Class N Height 9.1250 in Length 20.0000 in Material Thermoplastic Mounting Wall Box NEMA Rating 5-20R Phase 1 Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-6, WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) Temperature Rating -40 to +60 °C Type Duplex Outlet;Straight Blade UNSPSC 39121406 UPC 11 07847725980 UPC 12 078477259801 Width 1.53 in Wire Size 14-10 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Number of Wires 3 Voltage Rating 125 Commercial Impact resistant thermoplastic nylon cover and body Four corner latches securely fasten face Large triple wipe, brass T contacts for superior contact and conductivity Back and side wiring options Brass terminal screws to reduce conductor oxidation Break-OFF tabs allow easy 2-circuit conversion Apron barrier to prevent accidental contact between terminal screw heads and metal box Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity Wire lead receptacles for fast and easy installation Grounding 1-phase
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5362-LR |
| Connection | Back and Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.11 in |
| Dielectric Strength | 2000 (Min.) |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 22.8600 lb |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 9.1250 in |
| Length | 20.0000 in |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | 5-20R |
| Phase | 1 |
| Standard | ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-6, WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| Temperature Rating | -40 to +60 °C |
| Type | Duplex Outlet;Straight Blade |
| UNSPSC | 39121406 |
| UPC 11 | 07847725980 |
| UPC 12 | 078477259801 |
| Width | 1.53 in |
| Wire Size | 14-10 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Number of Wires | 3 |
| Voltage Rating | 125 |
| Commercial |
| Impact resistant thermoplastic nylon cover and body |
| Four corner latches securely fasten face |
| Large triple wipe, brass T contacts for superior contact and conductivity |
| Back and side wiring options |
| Brass terminal screws to reduce conductor oxidation |
| Break-OFF tabs allow easy 2-circuit conversion |
| Apron barrier to prevent accidental contact between terminal screw heads and metal box |
| Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity |
| Wire lead receptacles for fast and easy installation |
| Grounding |
| 1-phase |
