Leviton®

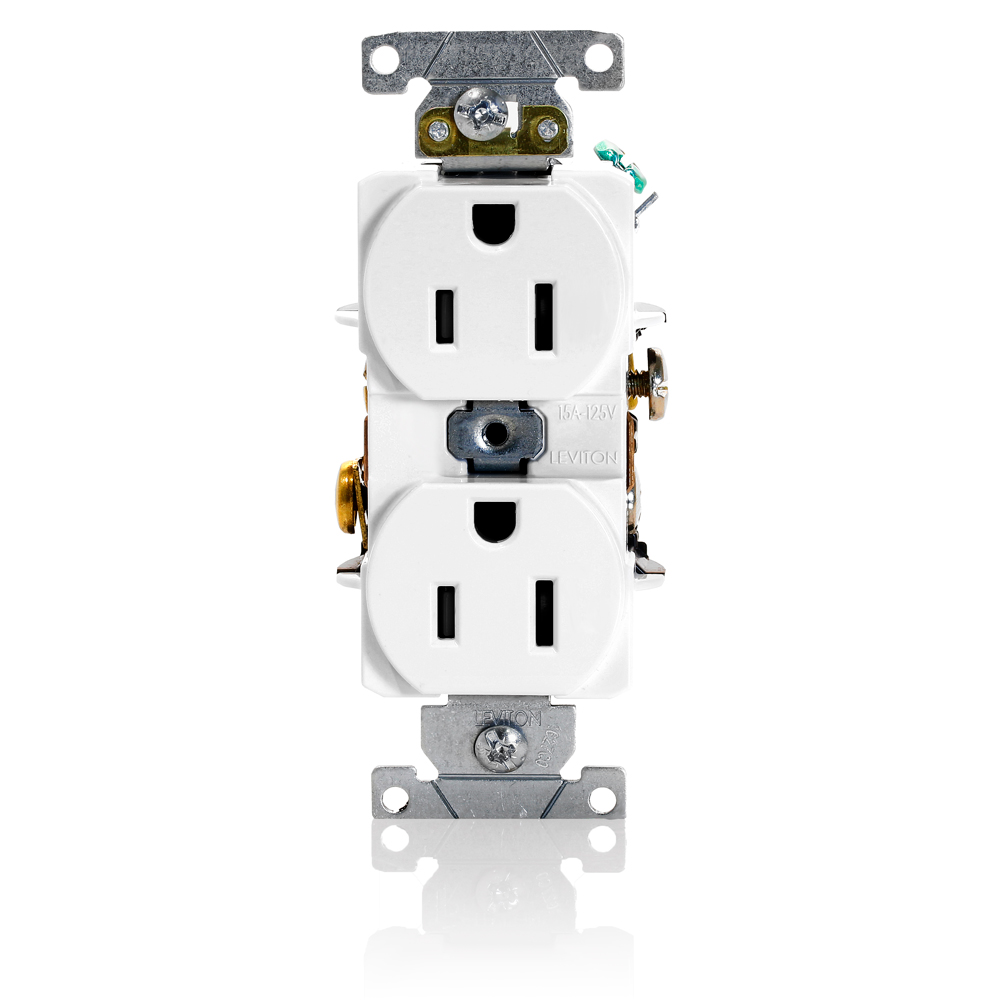

Leviton® 5252-W Heavy Duty Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Leviton®
Leviton® 5252-W Heavy Duty Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
SKU1288224
MFGR #5252-W
$/ea
Leviton®, 5252-W, Straight Blade Duplex Receptacle, Heavy Duty, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial/Specification Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 4.06 in H x 1.55 in W x 1.12 in D Dimensions
Leviton®, 5252-W, Straight Blade Duplex Receptacle, Heavy Duty, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial/Specification Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 4.06 in H x 1.55 in W x 1.12 in D Dimensions
Application Commercial Applications ARRA Compliant C Buy American Compliant C Catalog Number 5252-W Connection Back and Side Wired Country of Origin MX Currency USD Depth 1.12 in Dielectric Strength 2000 (Min.) Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Gross Weight Per Pack 10.9500 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Hazard Class N Height 8.5000 in Length 12.7500 in Material Thermoplastic Mounting Wall Box NEMA Rating 5-15R Phase 1 Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) Temperature Rating -40 to +60 DEG C Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847781956 UPC 12 078477819562 Width 1.55 in Wire Size 14-10 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Number of Wires 3 Voltage Rating 125 Commercial Applications Impact resistant thermoplastic nylon cover and body Smooth face does not collect dirt Four corner latches securely fasten face Large, triple-wipe, brass T contacts for superior contact and conductivity Back and side wiring options Brass terminal screws to reduce conductor oxidation Break-off tabs for easy two-circuit conversion Apron barrier to prevent accidental contact between terminal screw heads and metal box Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity Wallbox mounting Self-groundi
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5252-W |
| Connection | Back and Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.12 in |
| Dielectric Strength | 2000 (Min.) |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 10.9500 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 8.5000 in |
| Length | 12.7500 in |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | 5-15R |
| Phase | 1 |
| Standard | ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| Temperature Rating | -40 to +60 DEG C |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847781956 |
| UPC 12 | 078477819562 |
| Width | 1.55 in |
| Wire Size | 14-10 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Number of Wires | 3 |
| Voltage Rating | 125 |
| Commercial Applications |
| Impact resistant thermoplastic nylon cover and body |
| Smooth face does not collect dirt |
| Four corner latches securely fasten face |
| Large, triple-wipe, brass T contacts for superior contact and conductivity |
| Back and side wiring options |
| Brass terminal screws to reduce conductor oxidation |
| Break-off tabs for easy two-circuit conversion |
| Apron barrier to prevent accidental contact between terminal screw heads and metal box |
| Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity |
| Wallbox mounting |
| Self-groundi |
