Leviton®

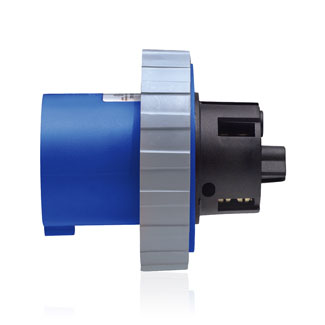

Leviton® 5100B9W Series II North American Configuration Watertight Pin And Sleeve Inlet, 120/208 VAC, 100 A, 4 Poles, 5 Wires, Blue
Custom_Product_Images_Illustration
Leviton®
Leviton® 5100B9W Series II North American Configuration Watertight Pin And Sleeve Inlet, 120/208 VAC, 100 A, 4 Poles, 5 Wires, Blue
SKU1288346
MFGR #5100B9W
$/ea
Leviton®, 5100B9W, Pin And Sleeve Inlet, North American Configuration Watertight, Series: Series II, 120/208 VAC, 100 A, 50/60 Hz Frequency, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Blue, 5.71 in L Dimensions
Leviton®, 5100B9W, Pin And Sleeve Inlet, North American Configuration Watertight, Series: Series II, 120/208 VAC, 100 A, 50/60 Hz Frequency, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Blue, 5.71 in L Dimensions
Action FP Application Industrial Applications ARRA Compliant C Buy American Compliant C Catalog Number 5100B9W Country of Origin CZ Currency USD Dimensions 5.71 in L Enclosure IP67 Environmental Conditions Humidity (32 DEG C, 93 PCT, 168 HR);Flammability (Rated UL94 V-2) EU RoHS Indicator C Frequency Rating 50/60 Grade Industrial Gross Volume Per Pack 60.00 Gross Volume per Pack Metric 1.70 Gross Weight Per Pack 2.3500 lb Gross Weight per Pack Metric 1.07 Gross Weight UOM Metric kg Hazard Class N Height 4.8130 in Height [Metric] 12.8600 cm Length 6.3130 in Length [Metric] 16.0350 cm Material Valox® 357 Mounting Flange Mount Number Of Poles 4 Replaced Catalog Number 5100B9WLEV Series Series II Size 5.71 L IN Standard UL Listed 1682 and 1686, CSA Certified C22.2 No 182.1, Per low voltage directives 73\23\EEC, 93\68\EEC, IEC Rated 60309-1 and 60309-2 Temperature Rating -40 to 60 Terminal Type Screw Type North American Configuration Watertight UNSPSC 39122208.0 UPC 11 07847783845 UPC 12 078477838457 Width 4.81 in Width [Metric] 12.2250 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 100 A Color Blue Number of Wires 5 Voltage Rating 120/208 VAC Industrial Applications Rugged housing, made of superior performance PBT, provides maximum corrosion protection and makes the device more resistant to impact, abuse and temperature extremes and V-0 flam Solid brass pins Reinforced nylon contact carrier Stainless steel terminal screws on 100 A devices Certified for current interrupting at full rated current
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | FP |
| Application | Industrial Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5100B9W |
| Country of Origin | CZ |
| Currency | USD |
| Dimensions | 5.71 in L |
| Enclosure | IP67 |
| Environmental Conditions | Humidity (32 DEG C, 93 PCT, 168 HR);Flammability (Rated UL94 V-2) |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 |
| Grade | Industrial |
| Gross Volume Per Pack | 60.00 |
| Gross Volume per Pack Metric | 1.70 |
| Gross Weight Per Pack | 2.3500 lb |
| Gross Weight per Pack Metric | 1.07 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 4.8130 in |
| Height [Metric] | 12.8600 cm |
| Length | 6.3130 in |
| Length [Metric] | 16.0350 cm |
| Material | Valox® 357 |
| Mounting | Flange Mount |
| Number Of Poles | 4 |
| Replaced Catalog Number | 5100B9WLEV |
| Series | Series II |
| Size | 5.71 L IN |
| Standard | UL Listed 1682 and 1686, CSA Certified C22.2 No 182.1, Per low voltage directives 73\23\EEC, 93\68\EEC, IEC Rated 60309-1 and 60309-2 |
| Temperature Rating | -40 to 60 |
| Terminal Type | Screw |
| Type | North American Configuration Watertight |
| UNSPSC | 39122208.0 |
| UPC 11 | 07847783845 |
| UPC 12 | 078477838457 |
| Width | 4.81 in |
| Width [Metric] | 12.2250 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 100 A |
| Color | Blue |
| Number of Wires | 5 |
| Voltage Rating | 120/208 VAC |
| Industrial Applications |
| Rugged housing, made of superior performance PBT, provides maximum corrosion protection and makes the device more resistant to impact, abuse and temperature extremes and V-0 flam |
| Solid brass pins |
| Reinforced nylon contact carrier |
| Stainless steel terminal screws on 100 A devices |
| Certified for current interrupting at full rated current |
