Leviton®

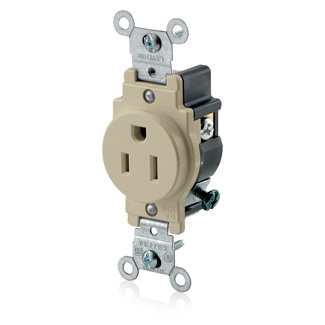

Leviton® 5015-IJ Straight Blade Single Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Custom_Product_Images_Illustration
Leviton®
Leviton® 5015-IJ Straight Blade Single Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
SKU428167
MFGR #5015-IJ
Your Cost: $5.60/ea
List: Leviton® line of Heavy Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Leviton® line of Heavy Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Application Commercial ARRA Compliant C Average Life 8000 hr Buy American Compliant C Catalog Number 5015-IJ Connection Side Wired Country of Origin MX Currency USD Depth 16 in Dielectric Strength 2000 (Min.) V Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Gross Weight Per Pack 0.1300 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Height 8.6250 in Length 12.1250 in Mounting Wall Box NEMA Rating 5-15R Number Of Poles 2 Phase 1 Size 46 H x 1.38 W x 16 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA Certified (File 152105);UL Listed (File E-13399);UL Listed 498 Standards ANSI (C-73), CSA Certified (File 152105), NEMA (WD-1, WD-6), NOM Certified (057), RoHS Compliant, UL Listed 498, UL Listed (File E-13399) Temperature Rating -40 to +60 °C Type Straight Blade;Single Outlet UNSPSC 39121406 UPC 11 07847738383 UPC 12 078477383834 Width 1.38 in Wire Size 14-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color Ivory Number of Wires 3 Voltage Rating 125 V Commercial Wallbox mounting 2000 V (min) dielectric strength UL 94 V-2 flammability rating Specification grade 14 - 10 AWG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Average Life | 8000 hr |
| Buy American Compliant | C |
| Catalog Number | 5015-IJ |
| Connection | Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 16 in |
| Dielectric Strength | 2000 (Min.) V |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.1300 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Height | 8.6250 in |
| Length | 12.1250 in |
| Mounting | Wall Box |
| NEMA Rating | 5-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 46 H x 1.38 W x 16 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA Certified (File 152105);UL Listed (File E-13399);UL Listed 498 |
| Standards | ANSI (C-73), CSA Certified (File 152105), NEMA (WD-1, WD-6), NOM Certified (057), RoHS Compliant, UL Listed 498, UL Listed (File E-13399) |
| Temperature Rating | -40 to +60 °C |
| Type | Straight Blade;Single Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847738383 |
| UPC 12 | 078477383834 |
| Width | 1.38 in |
| Wire Size | 14-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | Ivory |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Wallbox mounting |
| 2000 V (min) dielectric strength |
| UL 94 V-2 flammability rating |
| Specification grade |
| 14 - 10 AWG |
