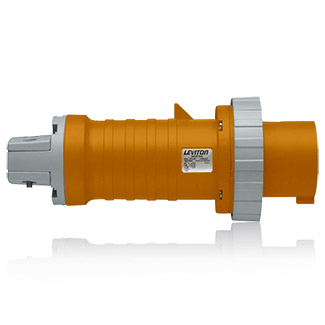

Leviton® 4100P12W Pin & Sleeve Plug, 125/250 VAC, 100 A, 3 Poles, 4 Wires, Orange
Custom_Product_Images_Illustration
Leviton® 4100P12W Pin & Sleeve Plug, 125/250 VAC, 100 A, 3 Poles, 4 Wires, Orange
SKU282528
MFGR #4100P12W
Your Cost: $556.83/ea
Leviton® Pin & Sleeve Plug, 125/250 VAC, 100 A, 3 Pole, 4 Wires, Grade: Industrial, IP67 Enclosure, 30 deg C, Screw Terminal, Valox® 357, Orange, 5 in Dia x 12.3 in L
Leviton® Pin & Sleeve Plug, 125/250 VAC, 100 A, 3 Pole, 4 Wires, Grade: Industrial, IP67 Enclosure, 30 deg C, Screw Terminal, Valox® 357, Orange, 5 in Dia x 12.3 in L
Application Industrial ARRA Compliant C Buy American Compliant C Catalog Number 4100P12W Connection Screw Terminal Country of Origin CZ Currency USD Dimensions 5 in Dia x 12.3 in L Enclosure IP67/IP69K Environmental Conditions Flammability (Rated V-2 per UL94);Humidity (32?C, 93%, 168 Hours) EU RoHS Indicator C Frequency Rating 50/60 Hz Grade Industrial Gross Volume Per Pack 25.00 Gross Volume per Pack Metric 0.71 Gross Weight Per Pack 3.4000 lb Gross Weight per Pack Metric 1.54 Gross Weight UOM Metric kg Height 5.2500 in Height [Metric] 13.3350 cm Horsepower 3 Length 13.2500 in Length [Metric] 33.6550 cm Material Valox 357 (Housing) Mounting Cable Number Of Poles 3 Replaced Catalog Number 4100P12WLEV Series Watertight Plug Size 5 Diameter x 12.3 L IN Standard CSA Certified (C22.2 No 182.1);UL Listed (1682 and 1686);IEC Rating (60309-1 and 60309-2);CE Marking (Per low voltage directives 73/23/EEC, 93/68/EEC) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE 73/23/EEC/93/68/EECCSA C22.2 No. 182.1IEC 60309-1/60309-2UL 1682/1686UL94 V-2 Flammability Rating Temperature Rating -40 to 60 °C Terminal Type Screw Type Watertight Plug UNSPSC 39121404.0 UPC 11 07847783887 UPC 12 078477838877 Width 5.25 in Width [Metric] 13.3350 cm Wire Size 3-1 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 100 A Color Orange Number of Wires 4 Voltage Rating 125/250 VAC Industrial Certified for current interrupting at full rated current Humidity (93%, 168 hours) 2000 V dielectric voltage Certified for current interrupting at full rated current Cable mounting North American-rated Maximum 30 deg C after 50 cycles OL at 150 percent rated current temperature rise 12 hour clock position 0.95 - 1.875 in cord diameter 3 - 1 AWG Flammability (rated V-2 per UL94)
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 4100P12W |
| Connection | Screw Terminal |
| Country of Origin | CZ |
| Currency | USD |
| Dimensions | 5 in Dia x 12.3 in L |
| Enclosure | IP67/IP69K |
| Environmental Conditions | Flammability (Rated V-2 per UL94);Humidity (32?C, 93%, 168 Hours) |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Grade | Industrial |
| Gross Volume Per Pack | 25.00 |
| Gross Volume per Pack Metric | 0.71 |
| Gross Weight Per Pack | 3.4000 lb |
| Gross Weight per Pack Metric | 1.54 |
| Gross Weight UOM Metric | kg |
| Height | 5.2500 in |
| Height [Metric] | 13.3350 cm |
| Horsepower | 3 |
| Length | 13.2500 in |
| Length [Metric] | 33.6550 cm |
| Material | Valox 357 (Housing) |
| Mounting | Cable |
| Number Of Poles | 3 |
| Replaced Catalog Number | 4100P12WLEV |
| Series | Watertight Plug |
| Size | 5 Diameter x 12.3 L IN |
| Standard | CSA Certified (C22.2 No 182.1);UL Listed (1682 and 1686);IEC Rating (60309-1 and 60309-2);CE Marking (Per low voltage directives 73/23/EEC, 93/68/EEC) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE 73/23/EEC/93/68/EECCSA C22.2 No. 182.1IEC 60309-1/60309-2UL 1682/1686UL94 V-2 Flammability Rating |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Watertight Plug |
| UNSPSC | 39121404.0 |
| UPC 11 | 07847783887 |
| UPC 12 | 078477838877 |
| Width | 5.25 in |
| Width [Metric] | 13.3350 cm |
| Wire Size | 3-1 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 100 A |
| Color | Orange |
| Number of Wires | 4 |
| Voltage Rating | 125/250 VAC |
| Industrial |
| Certified for current interrupting at full rated current |
| Humidity (93%, 168 hours) |
| 2000 V dielectric voltage |
| Certified for current interrupting at full rated current |
| Cable mounting |
| North American-rated |
| Maximum 30 deg C after 50 cycles OL at 150 percent rated current temperature rise |
| 12 hour clock position |
| 0.95 - 1.875 in cord diameter |
| 3 - 1 AWG |
| Flammability (rated V-2 per UL94) |
