Leviton®

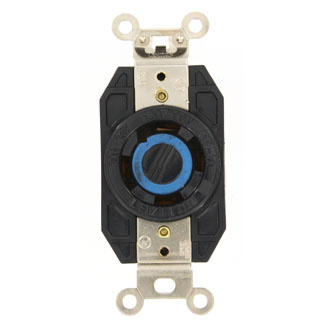

Leviton® 2750 3-Phase Y Non-Grounding Locking Receptacle, 120/208 VAC, 30 A, 4 Poles, 4 Wires, Black
Custom_Product_Images_Illustration
Leviton®
Leviton® 2750 3-Phase Y Non-Grounding Locking Receptacle, 120/208 VAC, 30 A, 4 Poles, 4 Wires, Black
SKU1180987
MFGR #2750
Your Cost: $72.46/ea
List: Leviton®, 2750, Locking Receptacle, 3-Phase Y Non-Grounding, 120/208 VAC, 30 A, 3 hp, 4 Pole, 4 Wires, NEMA L18-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
Leviton®, 2750, Locking Receptacle, 3-Phase Y Non-Grounding, 120/208 VAC, 30 A, 3 hp, 4 Pole, 4 Wires, NEMA L18-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
Application Industrial Applications ARRA Compliant C Buy American Compliant C Catalog Number 2750 Connection Back Wired;Side Wired Country of Origin MX Currency USD Depth 1.31 in Dielectric Strength 2000 (Min.) Environmental Conditions Flammability (Rated V-2, Rated V-0 per UL94) EU RoHS Indicator C Gross Weight Per Pack 0.3200 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 9.7500 in Height [Metric] 10.4775 cm Length 13.3750 in Length [Metric] 4.6050 cm Material PBT Mounting Box NEMA Rating L18-30R Phase 3 Standard ANSI (C-73);CSA C22.2 No.42;NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 Temperature Rating -40 to +60 DEG C Type Flush Mount Locking Receptacle UNSPSC 39121406 UPC 11 07847704592 UPC 12 078477045923 Width 1.88 in Width [Metric] 4.7625 cm Wire Size 14-8 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 30 AMP Number of Wires 4 Voltage Rating 120;208 Industrial Applications Box mounting 14 to 8 AWG terminal accommodation Flush mount
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 2750 |
| Connection | Back Wired;Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.31 in |
| Dielectric Strength | 2000 (Min.) |
| Environmental Conditions | Flammability (Rated V-2, Rated V-0 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3200 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Height | 9.7500 in |
| Height [Metric] | 10.4775 cm |
| Length | 13.3750 in |
| Length [Metric] | 4.6050 cm |
| Material | PBT |
| Mounting | Box |
| NEMA Rating | L18-30R |
| Phase | 3 |
| Standard | ANSI (C-73);CSA C22.2 No.42;NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 |
| Temperature Rating | -40 to +60 DEG C |
| Type | Flush Mount Locking Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 07847704592 |
| UPC 12 | 078477045923 |
| Width | 1.88 in |
| Width [Metric] | 4.7625 cm |
| Wire Size | 14-8 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 30 AMP |
| Number of Wires | 4 |
| Voltage Rating | 120;208 |
| Industrial Applications |
| Box mounting |
| 14 to 8 AWG terminal accommodation |
| Flush mount |
