Leviton®

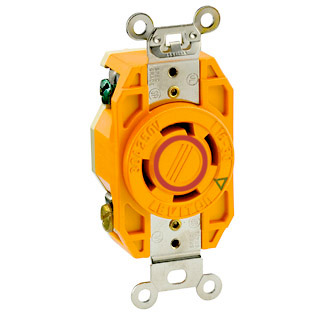

Leviton® 2720-IG Isolated Grounding Locking Receptacle, 250 VAC, 30 A, 3 Poles, 4 Wires, Orange
Custom_Product_Images_Illustration
Leviton®
Leviton® 2720-IG Isolated Grounding Locking Receptacle, 250 VAC, 30 A, 3 Poles, 4 Wires, Orange
SKU1184639
MFGR #2720-IG
$/ea
Leviton®, 2720-IG, Isolated Grounding Locking Receptacle, 250 VAC, 30 A, 3 hp, 3 Pole, 4 Wires, NEMA L15-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Orange, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
Leviton®, 2720-IG, Isolated Grounding Locking Receptacle, 250 VAC, 30 A, 3 hp, 3 Pole, 4 Wires, NEMA L15-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Orange, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
Application Commercial Applications ARRA Compliant C Buy American Compliant C Catalog Number 2720-IG Connection Back Wired;Side Wired Country of Origin MX Currency USD Depth 1.31 in Dielectric Strength 2000 (Min.) Dimensions 3.63 in H x 1.69 in W x 1.31 in D Environmental Conditions Flammability (Rated V-2, Rated V-0 per UL94) EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 9.8400 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 9.7500 in Height [Metric] 10.4775 cm Horsepower 3 Length 13.3750 in Length [Metric] 4.6050 cm Material Polybutylene Terephthalate Mounting Box NEMA Rating NEMA L15-30R Number Of Poles 3 Phase 3 Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No.42;UL Fed Spec WC-596 (File E13399);UL Listed 498 Temperature Rating -40 to 60 DEG C Terminal Type Back/Side Wired Type 3-Phase Y Isolated Grounding UNSPSC 39121406 UPC 11 07847780964 UPC 12 078477809648 Width 1.88 in Width [Metric] 4.7625 cm Wire Size 14-8 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 30 A Color Orange Number of Wires 4 Voltage Rating 250 Commercial Applications Box mounting 14 to 8 AWG terminal accommodation Flush mount
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 2720-IG |
| Connection | Back Wired;Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.31 in |
| Dielectric Strength | 2000 (Min.) |
| Dimensions | 3.63 in H x 1.69 in W x 1.31 in D |
| Environmental Conditions | Flammability (Rated V-2, Rated V-0 per UL94) |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 9.8400 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Height | 9.7500 in |
| Height [Metric] | 10.4775 cm |
| Horsepower | 3 |
| Length | 13.3750 in |
| Length [Metric] | 4.6050 cm |
| Material | Polybutylene Terephthalate |
| Mounting | Box |
| NEMA Rating | NEMA L15-30R |
| Number Of Poles | 3 |
| Phase | 3 |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No.42;UL Fed Spec WC-596 (File E13399);UL Listed 498 |
| Temperature Rating | -40 to 60 DEG C |
| Terminal Type | Back/Side Wired |
| Type | 3-Phase Y Isolated Grounding |
| UNSPSC | 39121406 |
| UPC 11 | 07847780964 |
| UPC 12 | 078477809648 |
| Width | 1.88 in |
| Width [Metric] | 4.7625 cm |
| Wire Size | 14-8 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 30 A |
| Color | Orange |
| Number of Wires | 4 |
| Voltage Rating | 250 |
| Commercial Applications |
| Box mounting |
| 14 to 8 AWG terminal accommodation |
| Flush mount |
