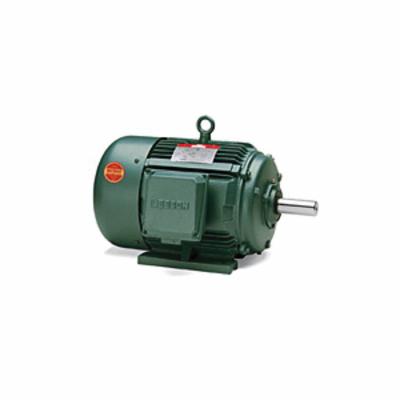

Leeson® 170001.60 170001.6 Type TF Continuous Duty AC Motor, 20 hp, 208 to 230/460 VAC, 66/33/53.4/26.7 A, 50/60 Hz, 3, 280 Frame
Leeson® 170001.60 170001.6 Type TF Continuous Duty AC Motor, 20 hp, 208 to 230/460 VAC, 66/33/53.4/26.7 A, 50/60 Hz, 3, 280 Frame
SKUPDW~6586967
MFGR #170001.60
Your Cost: $7,734.21/ea
LEESON® AC Motor, Type TF Continuous Duty, Application Type: Compressor Motor, Fan & Blower Motor, Special Features: 6-Pole, B NEMA Design, 20 hp, 208 to 230/460 VAC, 66/33/53.4/26.7 A, 50/60 Hz, 3, 1185/980 rpm, 1 Speed, TEFC, 280 Frame, 1-7/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, Rigid Mount, 40 deg C, Insulation Class: Class F, Cast Iron, 27.83 in L
LEESON® AC Motor, Type TF Continuous Duty, Application Type: Compressor Motor, Fan & Blower Motor, Special Features: 6-Pole, B NEMA Design, 20 hp, 208 to 230/460 VAC, 66/33/53.4/26.7 A, 50/60 Hz, 3, 1185/980 rpm, 1 Speed, TEFC, 280 Frame, 1-7/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, Rigid Mount, 40 deg C, Insulation Class: Class F, Cast Iron, 27.83 in L
Amperage Rating 66/33/53.4/26.7 A Application Type Compressor Motors, Fan & Blower Motors Bearing Type Ball Catalog Number 170001.60 Dimensions 27.83 in L Enclosure Type Totally Enclosed Fan Cooled (TEFC) Frequency Rating 50/60 Hz Gross Weight Per Pack 406.0000 lb Insulation Class Class F Material Cast Iron Mounting Type Rigid Number of Speeds 1 Rotation Reversible Service Factor 1 Shaft Size 1-7/8 in Dia Speed 1185/980 rpm Standards CSA CertifiedUL Listed Temperature Rating 40 °C Type Type TF Continuous Duty UPC 11 69172002773 Stock Status NONSTOCK Brand LEESON® Manufacturer Regal Beloit Corporation Frame 280 Horsepower 20 hp Voltage Rating 208 to 230/460 VAC 6-Pole, B NEMA Design Standard, EPACT and premium efficiency Wattsaver® motor Shielded ball bearings for direct coupled applications Dynamically balanced rotors torques exceed NEMA performance standards Continuous duty Dynamically balanced rotors torques exceed NEMA performance standards 6-poles Tstats (N/C) thermal protector B NEMA design Across the line start method Squirrel cage induction run electrical type G KVA code F5-insulation 75% power factor 92.4% standard full load efficiency at 60 Hz
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 66/33/53.4/26.7 A |
| Application Type | Compressor Motors, Fan & Blower Motors |
| Bearing Type | Ball |
| Catalog Number | 170001.60 |
| Dimensions | 27.83 in L |
| Enclosure Type | Totally Enclosed Fan Cooled (TEFC) |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 406.0000 lb |
| Insulation Class | Class F |
| Material | Cast Iron |
| Mounting Type | Rigid |
| Number of Speeds | 1 |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Size | 1-7/8 in Dia |
| Speed | 1185/980 rpm |
| Standards | CSA CertifiedUL Listed |
| Temperature Rating | 40 °C |
| Type | Type TF Continuous Duty |
| UPC 11 | 69172002773 |
| Stock Status | NONSTOCK |
| Brand | LEESON® |
| Manufacturer | Regal Beloit Corporation |
| Frame | 280 |
| Horsepower | 20 hp |
| Voltage Rating | 208 to 230/460 VAC |
| 6-Pole, B NEMA Design |
| Standard, EPACT and premium efficiency Wattsaver® motor |
| Shielded ball bearings for direct coupled applications |
| Dynamically balanced rotors torques exceed NEMA performance standards |
| Continuous duty |
| Dynamically balanced rotors torques exceed NEMA performance standards |
| 6-poles |
| Tstats (N/C) thermal protector |
| B NEMA design |
| Across the line start method |
| Squirrel cage induction run electrical type |
| G KVA code |
| F5-insulation |
| 75% power factor |
| 92.4% standard full load efficiency at 60 Hz |
