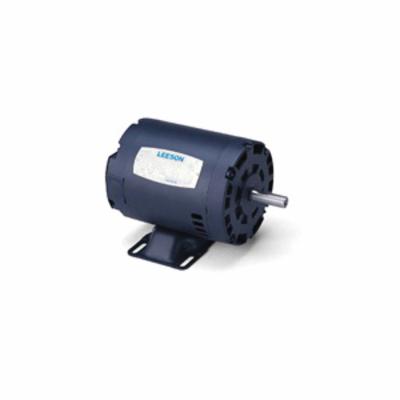

Leeson® 100028.00 100028 Type TD Continuous Duty AC Motor, 0.33 hp, 208 to 230/460 VAC, 1.7 to 1.8/0.9 A, 60 Hz, 3, 48 Frame
General Purpose Motor AC
PDW~6585329
MFG #: 100028.00
LEESON®
336.00000
/ ea
LEESON® AC Motor, Type TD Continuous Duty, Application Type: Compressor Motor, Fan & Blower Motor, Special Features: 4-Pole, B NEMA Design, 0.33 hp, 208 to 230/460 VAC, 1.7 to 1.8/0.9 A, 60 Hz, 3, 1725 rpm, 1 Speed, DP, 48 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.35, Ball Bearing, Rigid Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 9.49 in L
- Catalog URL - LEESON_110035_00_Catalog.pdf(Catalog URL)
- Full Eng Drawing URL - LEESON_110035_00_Full_Engineering_Drawing.pdf(Full Eng Drawing URL)
- Tech Drawing 1 URL - LEESON_100028_00_Technical_Drawing.pdf(Tech Drawing 1 URL)
- Video - https://www.youtube.com/embed/-x3syiRkH-k(Video)
- Warranty 1 URL - LEESON_110035_00_Warranty.pdf(Warranty 1 URL)
- Features
| 4-Pole, B NEMA Design |
| Standard, EPACT and premium efficiency motor |
| Shielded ball bearings for direct coupled applications |
| Dynamically balanced rotors torques exceed NEMA performance standards |
| Continuous duty |
| Dynamically balanced rotors torques exceed NEMA performance standards |
| 4-pole |
| B NEMA design |
| Across the line start method |
| Squirrel cage induction run electrical type |
| M KVA code |
| B3 insulation |
| 61.1-power factor |
| 64.3% standard full load efficiency at 60 Hz |
