The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
- 360 Degree View URL - index.html?pid=12055&id=10766397360Den&ext=webp&rows=1&cols=48(360 Degree View URL)
- http://www.TNB.com(Seller Home Page URL)
- Install Instructions 1 URL - 12055_KEX8HBI1WA50SZV4.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - TA01025-TB2.pdf(Install Instructions 1 URL)
- Install Instructions URL - TA01025-TB2.pdf(Install Instructions URL)

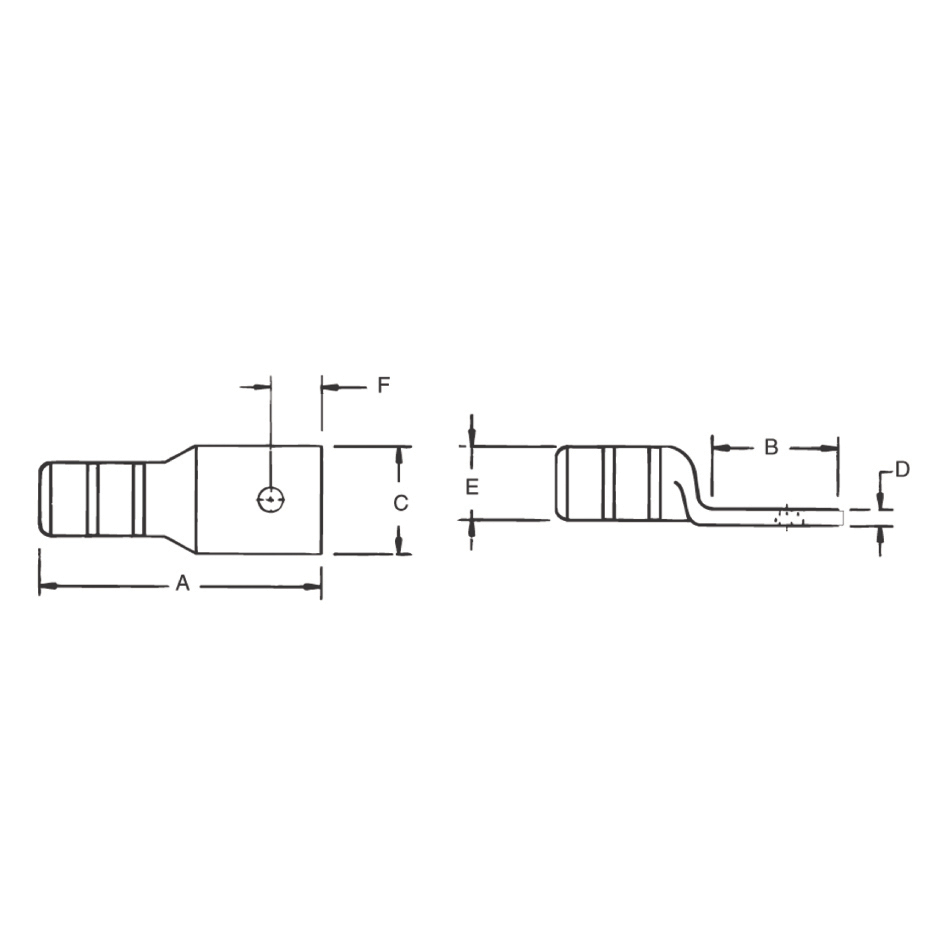

- Line Drawing URL - 54114ub_ca2ld_1(Line Drawing URL)
- ROHS Compliance URL - Color_Keyed_54951BE_RoHS_Sheet.pdf(ROHS Compliance URL)
- Spec Sheet URL - 007_CAT3_F25.pdf(Spec Sheet URL)
- Spec Sheet URL - 12055_RI78D3TEHU450OAM.pdf(Spec Sheet URL)
- Tech Drawing URL - WSD-002190.pdf(Tech Drawing URL)
- Features
| Connectors have colored bands or colored dots that correspond to color markings on the dies |
| Color-Keyed® connectors are banded by colored stripes or engraving to indicate location of die on connector for compression |
| Connection by compression |
| High quality connection at a low installed cost |
| High conductivity wrought copper construction |
| 1/2 in hole center to end |
| Tin plated finish |
| 1/2 in Hole Center to End |
