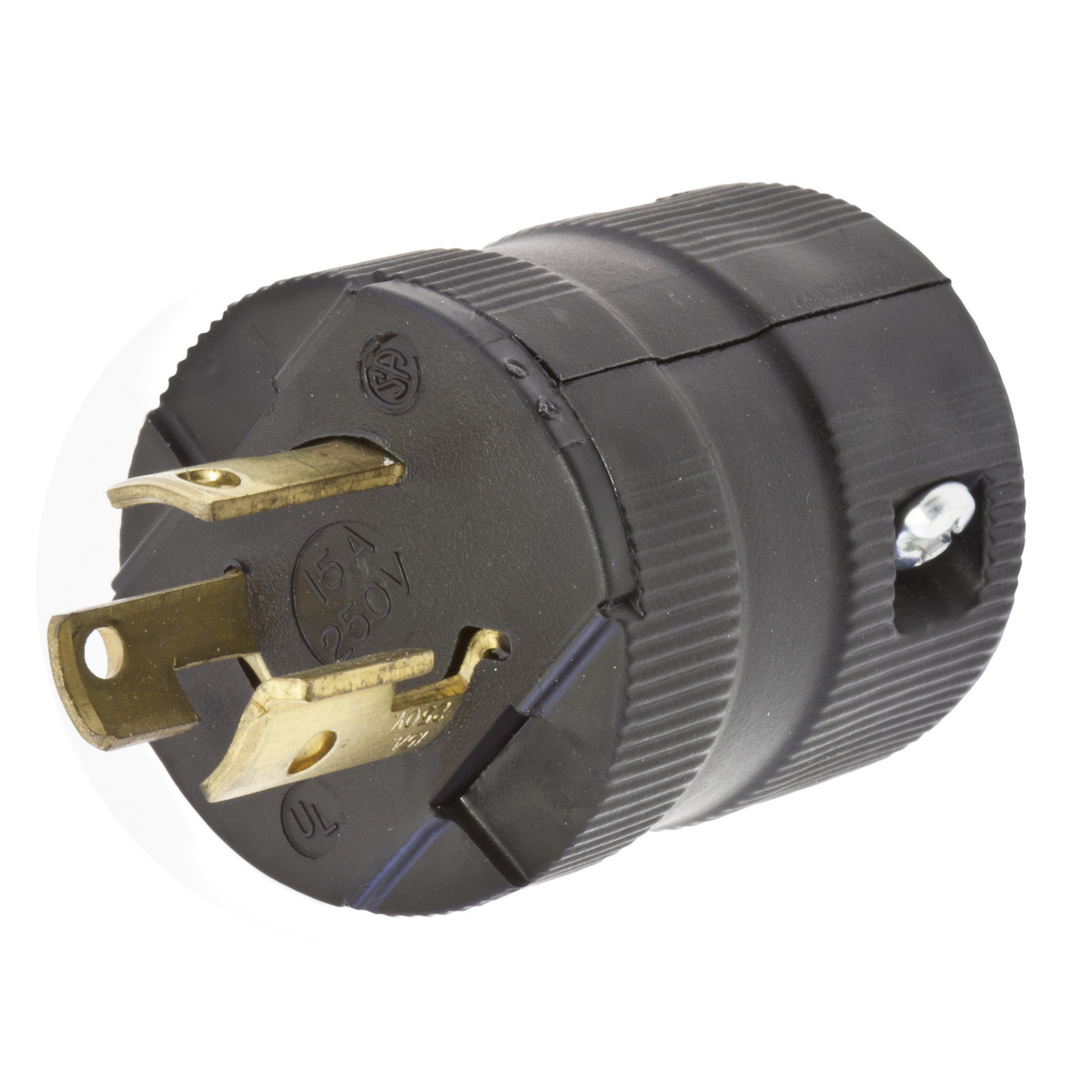

LKG VAL PLUG, 15A 250V, L6-15P, BK
Locking Plugs
91615
MFG #: HBL4573VBK
Hubbell Wiring Device-Kellems
16.85000
/ ea
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Valise, MalePlug, 15A 250V, 2-Pole 3-Wire Grounding, L6-15P, Screw Terminal, Blackand White
- http://www.hubbell-wiring.com/(WEB SELLER HOME PAGE URL)
- Install Instructions 1 URL - WIRING_PD1237_INSTALLINST.pdf(Install Instructions 1 URL)
- Line Drawing URL - WDK_HBL4573VBK_DRAWING_PDF.pdf(Line Drawing URL)
- WEB SPEC SHEET URL - WIRING_HBL4573VBK_spec.pdf(WEB SPEC SHEET URL)
- WEB TECH DRAWING URL - IDW_DOCUMENT_1487177424062.pdf(WEB TECH DRAWING URL)
- Applications
- Features
| Power Connection |
| Valise |
| Natural (white) nylon cord clamp, nylon blade holder |
| Cold rolled steel nickel plated terminal clamp |
| Brass blade |
| #8 to 32 steel (copper flash, nickel plate & molykote) terminal screw |
| #8 to 32 steel (green finish) ground screw |
| Steel zinc plated cord clamp/body holding screw |
| Molded in or stamped on ratings |
| 2000 VAC minimum dielectric withstand voltage |
| Certified for current interrupting at full rated current |
| 20 A, 12 AWG terminal accommodation |
| HB or better flammability |
| Two captive multiple drive assembly screws |
| Totally insulated impact and crush-resistant nylon body |
| Powerful cord grips prevent conductor slippage and strain on wiring terminals |
| Wire grounding plug |
| Valise style |
