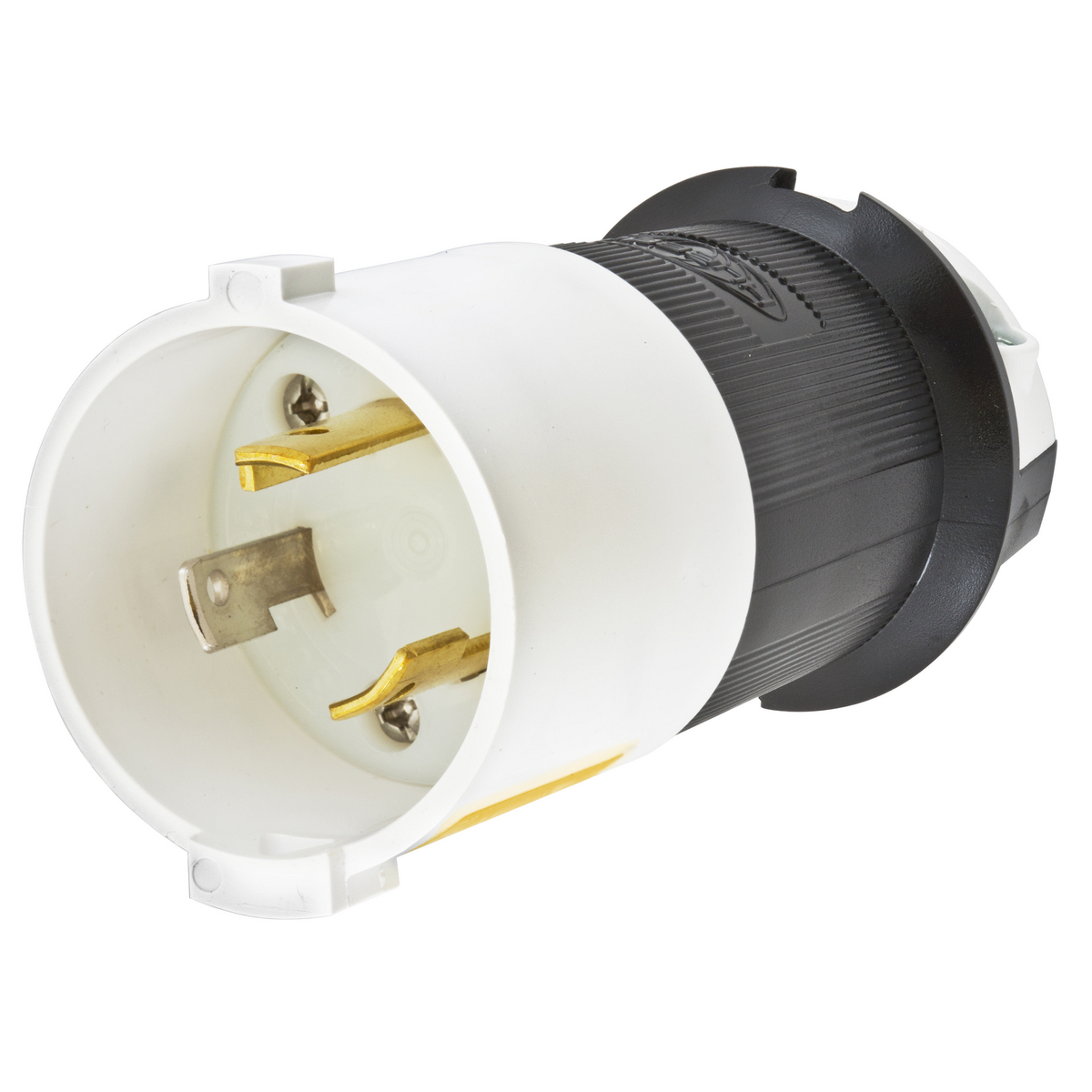

LKG S/SHRD PLUG, 30A 125V, L5-30P, B/W
Locking Plugs
371580
MFG #: HBL2611S
Hubbell Wiring Device-Kellems
49.37000
/ ea
Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Plug, 1-Phase Grounding Male Standard, 125 VAC, 30 A, 2 hp, 2 Poles, 3 Wires, NEMA L5-30P, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Cord Dia, -40 to 75 deg C, Screw Terminal, Brass/Clear Polycarbonate/Composite/Nylon/Polybutylene Terephthalate, Black/White, 2.26 in Dia x 4.21 in L
- Catalog URL - Wiring_Device_Kellems_HBL2830SW_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_7NUCT5YODR30X2LH.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1742_INSTALLINST.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_EIF7NDL4KZHGXP12.pdf(Line Drawing URL)
- Line Drawing URL - WDK_HBL2611S_DRAWINGS_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_8RV9UMJS6DIA7Q4K.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL2611S_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - Wiring_Device_Kellems_HBL2411SA_Technical_Drawing.pdf(Tech Drawing URL)
- Tech Drawing URL - WIRING_HBL2611S_M8358_ACAD_DRAWING.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/cXi_GcGBWpc(Video)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Extra Heavy Duty Industrial |
| Standard Product |
| Ribbed nylon housing provides a secure grip and impact and chemical resistance |
| Superior cord grip design protects terminations from excess strain |
| Integral dust shield protects wiring chamber from dust or contaminants |
| Natural white nylon blade holder, cord clamp |
| Clear polycarbonate terminal retainer |
| Brass blade |
| 0.08 in brass-nickel plated terminal clamp |
| #10 to 32 bronze (white finish on neutral screw when used) multi-drive terminal screw |
| #10 to 32 bronze (green finish) multi-drive ground screw |
| Stainless steel cord clamp/ body holding screw |
| Molded in or stamped on ratings |
| 2000 VAC minimum dielectric with stand voltage |
| Certified for current interrupting at full rated current |
| Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| 30 A, 10 AWG terminal accommodation |
| HB or better flammability |
| Wire grounding plug |
| Shrouded style |
