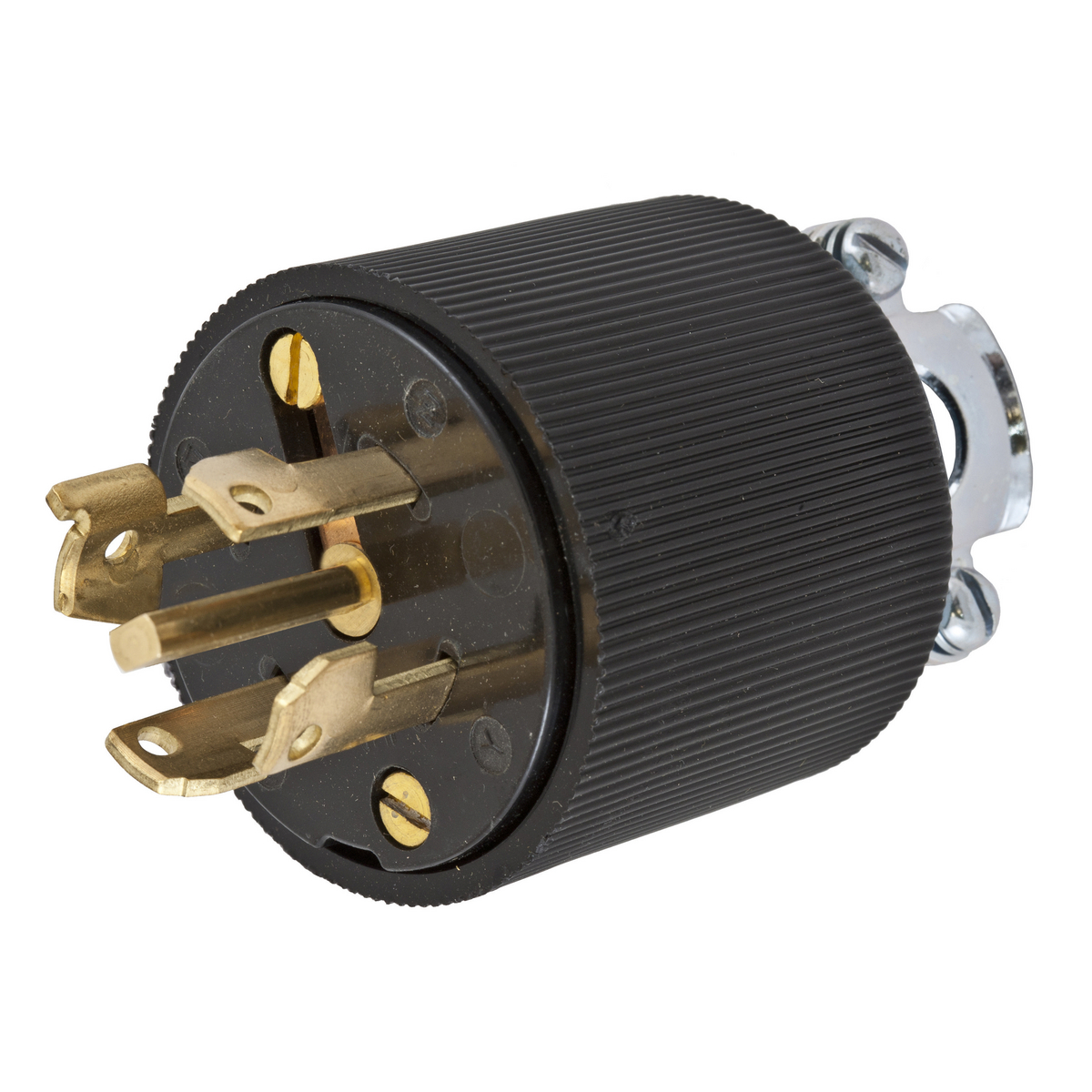

LKG PLUG, VARILOAD, 4P5W, 30A 600V
Locking Plugs
26617
MFG #: HBL45115
Hubbell Wiring Device-Kellems
147.86000
/ ea
Wiring Device-Kellems Twist-Lock® Variload® Locking Plug, Grounding Heavy Duty Male Standard, 250/600 VAC, 30 A, 4 Poles, 5 Wires, Industrial Grade, 5/8 to 1 in Cord Dia, -40 to 75 deg C, Screw Terminal, Brass/Composite/Molded Thermoset, Black, 2-1/8 in Dia
- Catalog URL - Wiring_Device_Kellems_HBL2830SW_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_9DGLICTXAZ72SMQ1.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_P05UW3OTB6ESD7AL.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_M5PT2O4UAYCJW6DL.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/cXi_GcGBWpc(Video)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial |
| Unique Center Pin |
| Heat-resistant thermoset construction |
| Non-interchangeable center pin configuration to be designated to different circuits |
| Brass blade |
| Brass terminal screw |
| Steel (green finish) ground screw |
| Steel zinc plated cord clamp/body holding screw |
| Molded in or stamped on ratings |
| 2000 VAC minimum dielectric withstand voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| 30 A, 10 AWG terminal accommodation |
| HB or better flammability |
| Heat-resistant thermoset construction |
| Non-interchangeable center pin configuration to be designated to different circuits |
| Wire grounding plug |
