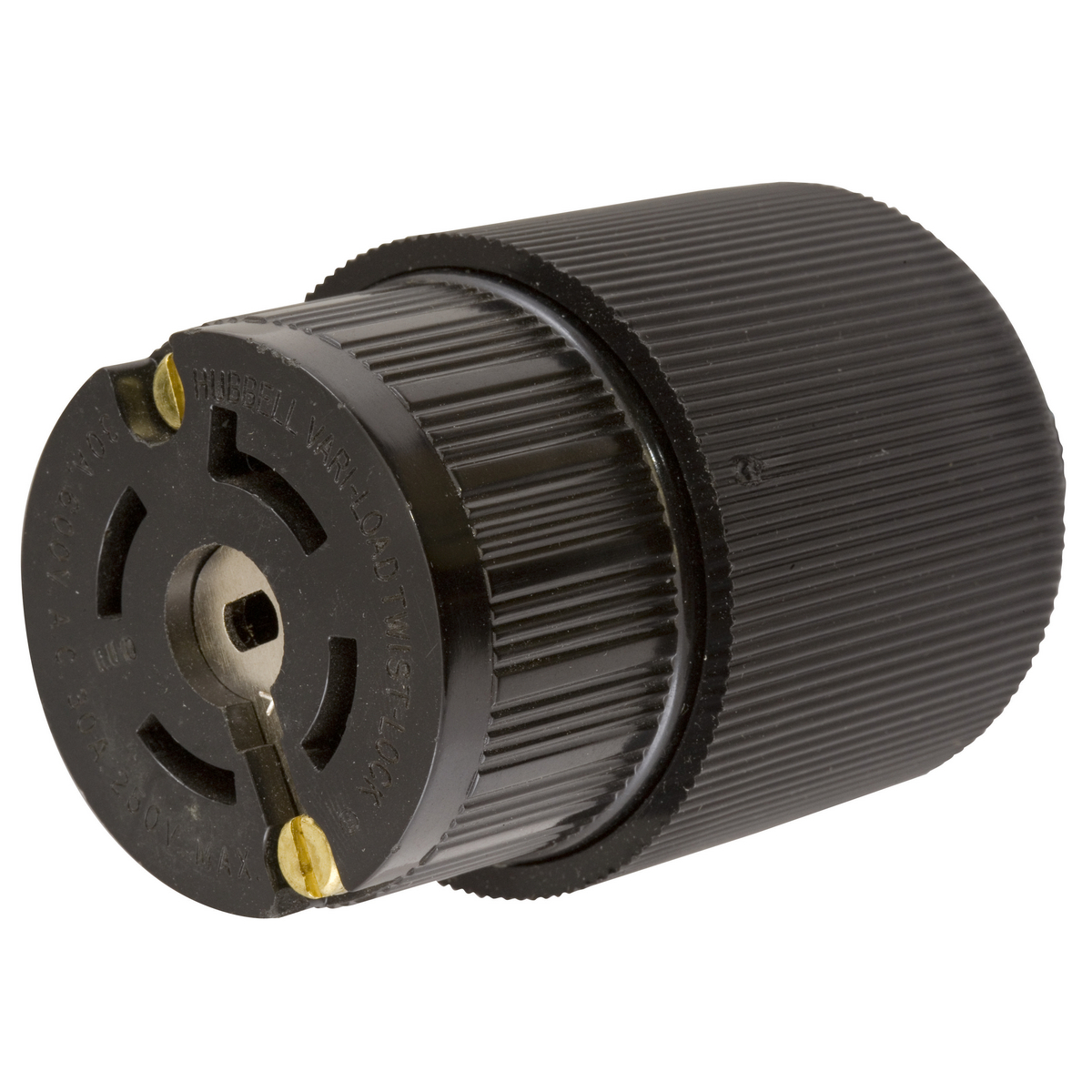

LKG CONN, VARILOAD, 4P5W, 30A 600V
Locking Connectors
261771
MFG #: HBL45135
Hubbell Wiring Device-Kellems
299.28000
/ ea
Wiring Device-Kellems Twist-Lock® VariLoad® Female Connector, Heavy Duty Standard Sized VariLoad Isolated Grounding, 250 VAC/VDC/600 VAC, 30 A, 4 Pole, 5 Wires, Industrial Grade, 5/8 to 1 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Thermoset, Black, 3.79 in L x 2.12 in W x 1.84 in H
- http://www.hubbell-wiring.com/(WEB SELLER HOME PAGE URL)
- Install Instructions 1 URL - WIRING_PD1189_INSTALLINST.pdf(Install Instructions 1 URL)
- Line Drawing URL - WDK_HBL45135_DRAWING_PDF.pdf(Line Drawing URL)
- Warrantly URL - Wiring_WDK_Warranty.pdf(Warrantly URL)
- WEB CATALOG URL - Wiring_Device_Kellems_HBL21CM414B_Catalog.pdf(WEB CATALOG URL)
- WEB FULL ENG DRAWING URL - Wiring_Device_Kellems_HBL45105_Technical_Drawing.pdf(WEB FULL ENG DRAWING URL)
- WEB SPEC SHEET URL - WIRING_HBL45135_spec.pdf(WEB SPEC SHEET URL)
- Applications
- Features
| Heavy Duty Industrial |
| Unique Center Pin |
| Heat resistant thermoset construction |
| Non-interchangable center pin configuration to be designated to different circuits |
| Unique "A" center pin |
