Hubbell Wiring Device-Kellems

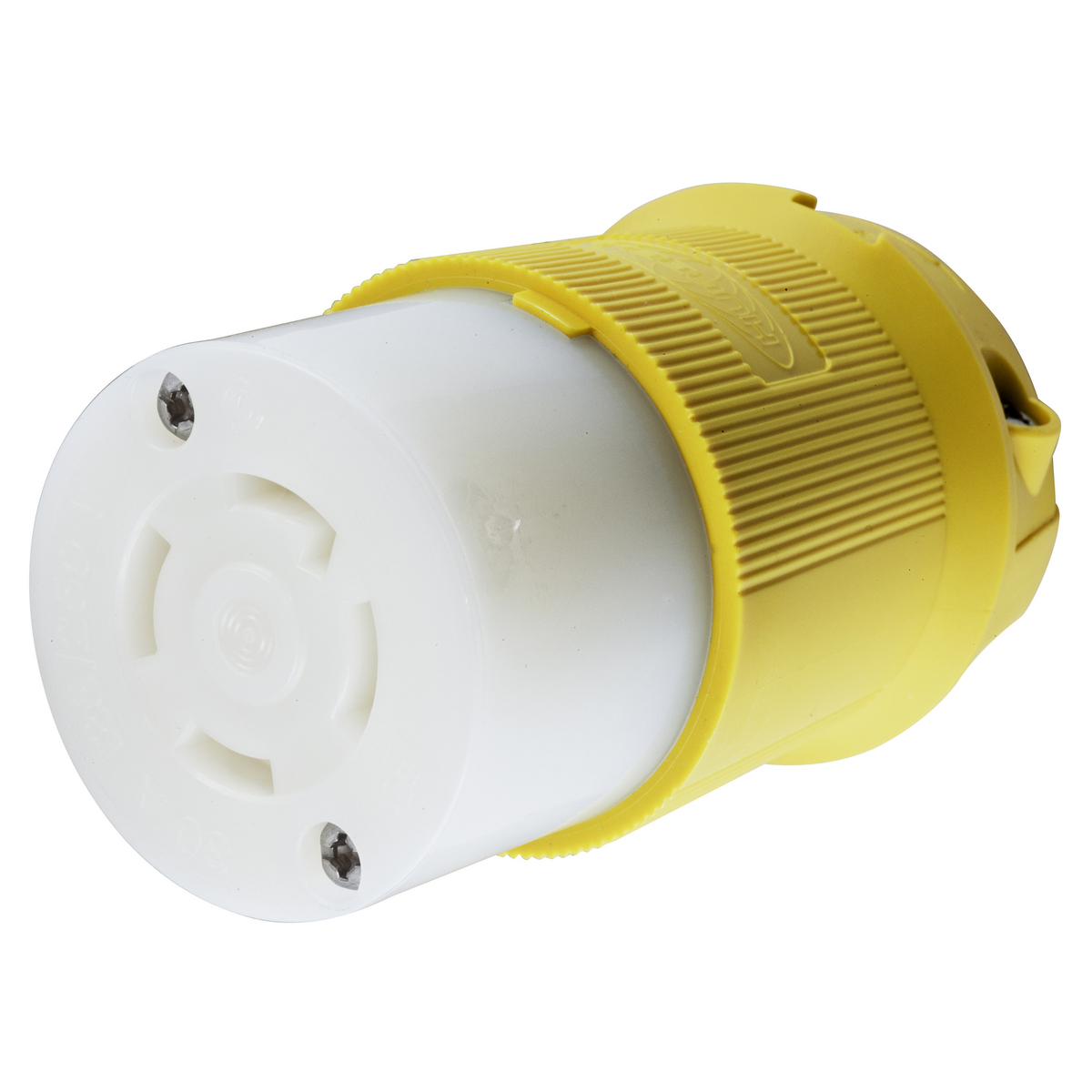

LKG CONN, CM, 30A 125/250V L14-30R
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
LKG CONN, CM, 30A 125/250V L14-30R
SKU753669
MFGR #HBL27CM13
$/ea
Hubbell® Twist-Lock® Insulgrip® Connector, Grounding, 125/250 VAC, 30 A, 3 Pole, 4 Wires, NEMA L14-30R, Grade: Industrial, IP20 Enclosure, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Screw Terminal, Nylon, Yellow/White, 2.33 in Dia x 3.88 in L
Hubbell® Twist-Lock® Insulgrip® Connector, Grounding, 125/250 VAC, 30 A, 3 Pole, 4 Wires, NEMA L14-30R, Grade: Industrial, IP20 Enclosure, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Screw Terminal, Nylon, Yellow/White, 2.33 in Dia x 3.88 in L
Application Heavy Duty Industrial/Marine ARRA Compliant C Buy American Compliant C Catalog Number HBL27CM13 Conductor Range #12AWG to #8AWG Connection Pressure Screw Terminal Cord Diameter 0.35 to 1.15 in Country of Origin US Currency USD Dimensions 3.86 in L x 2.21 in W x 2.33 in H Enclosure IP20 Environmental Conditions Corrosion Resistant EU RoHS Indicator Y Grade Industrial/Marine Gross Weight Per Pack 0.4500 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 2.40 in Height [Metric] 6.0960 cm Horsepower 2 hp Insulation Insulated Body Length 4.20 in Length [Metric] 10.6680 cm Material Nylon Mounting Cord Mounted NEMA Rating L14-30R Number Of Conductors 4-Wire Grounding Number Of Poles 3 Returnable Y Size 2.33 in x 2.33 in x 3.86 in Standard Listed to UL 498;Fed.Spec. W-C-596;Certified to CSA C22.2 No.42 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498Federal Specification W-C-596CSA C22.2 No. 42 Sub Brand Twist-Lock Temperature Rating Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C Terminal Type Pressure Screw Type Connector Body UNSPSC 39121421 UPC 11 78358503956 UPC 12 783585039565 Width 2.50 in Width [Metric] 6.3500 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 30 A Color Yellow Number of Wires 4 Voltage Rating 125/250 VAC Heavy Duty Industrial/Marine Corrosion Resistant Nickel plated contacts and stainless steel screws provide maximum corrosion resistance Ribbed nylon housing provides a secure grip and impact and chemical resistance Superior cord grip design for flat cable protects terminations from excess strain Integral dust shield protects wiring chamber from dust or contaminants Corrosion resistant
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Heavy Duty Industrial/Marine |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL27CM13 |
| Conductor Range | #12AWG to #8AWG |
| Connection | Pressure Screw Terminal |
| Cord Diameter | 0.35 to 1.15 in |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 3.86 in L x 2.21 in W x 2.33 in H |
| Enclosure | IP20 |
| Environmental Conditions | Corrosion Resistant |
| EU RoHS Indicator | Y |
| Grade | Industrial/Marine |
| Gross Weight Per Pack | 0.4500 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 2.40 in |
| Height [Metric] | 6.0960 cm |
| Horsepower | 2 hp |
| Insulation | Insulated Body |
| Length | 4.20 in |
| Length [Metric] | 10.6680 cm |
| Material | Nylon |
| Mounting | Cord Mounted |
| NEMA Rating | L14-30R |
| Number Of Conductors | 4-Wire Grounding |
| Number Of Poles | 3 |
| Returnable | Y |
| Size | 2.33 in x 2.33 in x 3.86 in |
| Standard | Listed to UL 498;Fed.Spec. W-C-596;Certified to CSA C22.2 No.42 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498Federal Specification W-C-596CSA C22.2 No. 42 |
| Sub Brand | Twist-Lock |
| Temperature Rating | Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C |
| Terminal Type | Pressure Screw |
| Type | Connector Body |
| UNSPSC | 39121421 |
| UPC 11 | 78358503956 |
| UPC 12 | 783585039565 |
| Width | 2.50 in |
| Width [Metric] | 6.3500 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 30 A |
| Color | Yellow |
| Number of Wires | 4 |
| Voltage Rating | 125/250 VAC |
| Heavy Duty Industrial/Marine |
| Corrosion Resistant |
| Nickel plated contacts and stainless steel screws provide maximum corrosion resistance |
| Ribbed nylon housing provides a secure grip and impact and chemical resistance |
| Superior cord grip design for flat cable protects terminations from excess strain |
| Integral dust shield protects wiring chamber from dust or contaminants |
| Corrosion resistant |
