Hubbell Wiring Device-Kellems

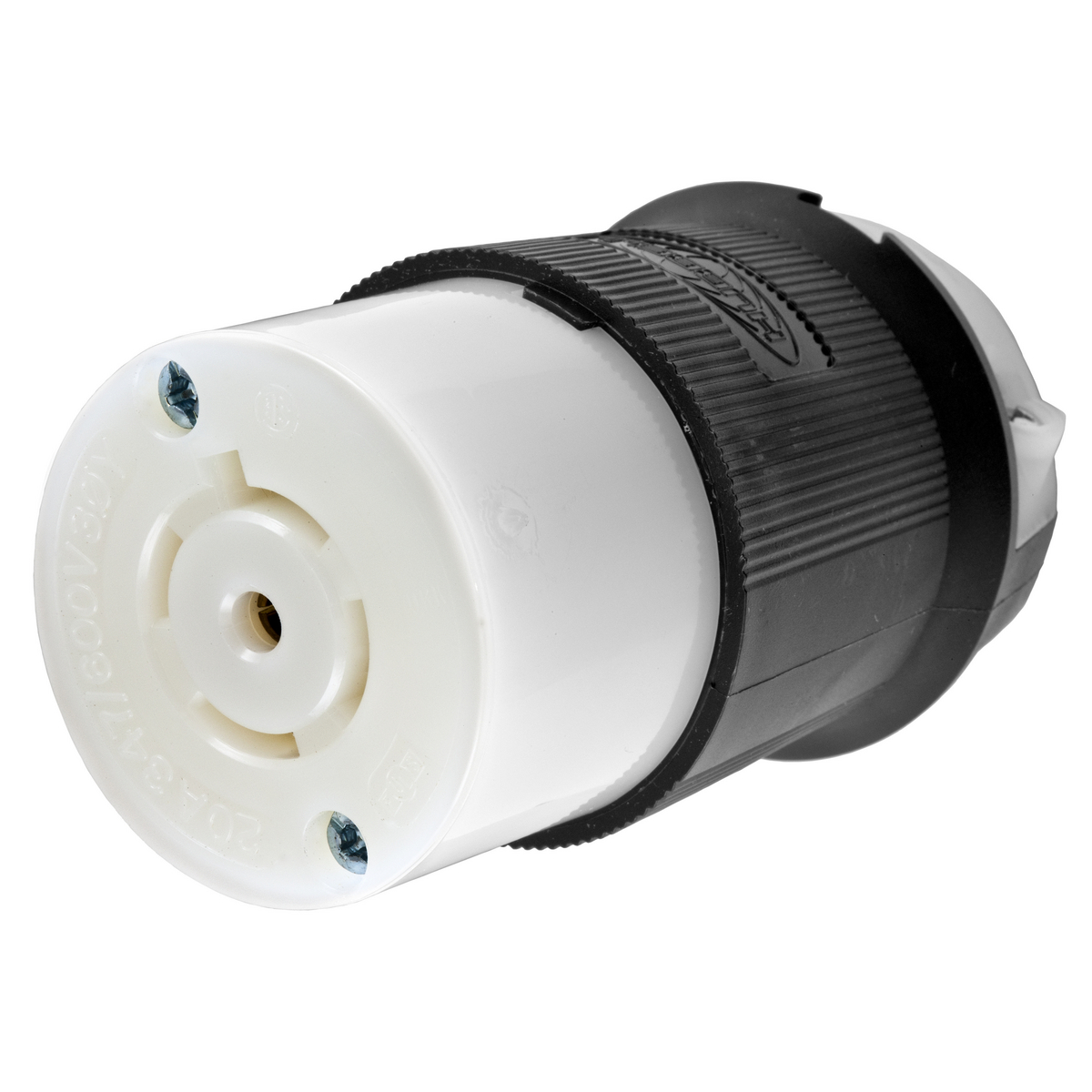

LKG CONN, 20A 347/600V, L23-20R, B/W
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
LKG CONN, 20A 347/600V, L23-20R, B/W
SKU91584
MFGR #HBL2533
Your Cost: $100.85/ea
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Grounding Heavy Duty, 347/600 VAC, 20 A, 4 Pole, 5 Wires, NEMA L23-20R, Grade: Industrial, IP20 Enclosure, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 3.84 in L x 2.22 in W
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Grounding Heavy Duty, 347/600 VAC, 20 A, 4 Pole, 5 Wires, NEMA L23-20R, Grade: Industrial, IP20 Enclosure, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 3.84 in L x 2.22 in W
Application Heavy Duty Industrial ARRA Compliant C Buy American Compliant C Catalog Number HBL2533 Conductor Range #12AWG to #10AWG Connection Pressure Screw Terminal Cord Diameter 0.35 to 1.15 in Country of Origin US Currency USD Dimensions 3.84 in L x 2.22 in W Enclosure IP20 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.4000 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 2.40 in Height [Metric] 6.0960 cm Insulation Insulated Body Length 4.30 in Length [Metric] 10.9220 cm Material Nylon Mounting Cord Mounted NEMA Rating L23-20R Number Of Conductors 5-Wire Grounding Number Of Poles 4 Returnable Y Size 2.33 in x 2.33 in x 3.86 in Standard Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 Standards UL 498 Federal Specification W-C-596CSA C22.2 No. 42 NEMA WD1/WD5 Sub Brand Twist-Lock Temperature Rating Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C Terminal Type Pressure Screw Type Connector Body UNSPSC 39121421 UPC 11 78358503867 UPC 12 783585038674 Width 2.50 in Width [Metric] 6.3500 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Black/White Number of Wires 5 Voltage Rating 3 Phase WYE 347/600 VAC Heavy Duty Industrial Standard Product Superior cord grip design protects terminations from excess strain Clear, funnel shaped wire entry for ease of termination Integral dust shield protects wiring chamber from dust or contaminants Clear polycarbonate terminal retainer Yellow nylon cord clamp Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact Steel zinc plated cord clamp screw, body holding screw Natural white nylon body contact carrier material Bronze contact spring, spring binding plate, ground contact 3-phase 20 A, 12 AWG terminal accommodation Withstands 2000 VAC dielectric voltage
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Heavy Duty Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL2533 |
| Conductor Range | #12AWG to #10AWG |
| Connection | Pressure Screw Terminal |
| Cord Diameter | 0.35 to 1.15 in |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 3.84 in L x 2.22 in W |
| Enclosure | IP20 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 0.4000 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 2.40 in |
| Height [Metric] | 6.0960 cm |
| Insulation | Insulated Body |
| Length | 4.30 in |
| Length [Metric] | 10.9220 cm |
| Material | Nylon |
| Mounting | Cord Mounted |
| NEMA Rating | L23-20R |
| Number Of Conductors | 5-Wire Grounding |
| Number Of Poles | 4 |
| Returnable | Y |
| Size | 2.33 in x 2.33 in x 3.86 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards | UL 498 Federal Specification W-C-596CSA C22.2 No. 42 NEMA WD1/WD5 |
| Sub Brand | Twist-Lock |
| Temperature Rating | Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C |
| Terminal Type | Pressure Screw |
| Type | Connector Body |
| UNSPSC | 39121421 |
| UPC 11 | 78358503867 |
| UPC 12 | 783585038674 |
| Width | 2.50 in |
| Width [Metric] | 6.3500 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Black/White |
| Number of Wires | 5 |
| Voltage Rating | 3 Phase WYE 347/600 VAC |
| Heavy Duty Industrial |
| Standard Product |
| Superior cord grip design protects terminations from excess strain |
| Clear, funnel shaped wire entry for ease of termination |
| Integral dust shield protects wiring chamber from dust or contaminants |
| Clear polycarbonate terminal retainer |
| Yellow nylon cord clamp |
| Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact |
| Steel zinc plated cord clamp screw, body holding screw |
| Natural white nylon body contact carrier material |
| Bronze contact spring, spring binding plate, ground contact |
| 3-phase |
| 20 A, 12 AWG terminal accommodation |
| Withstands 2000 VAC dielectric voltage |
