Hubbell Wiring Device-Kellems

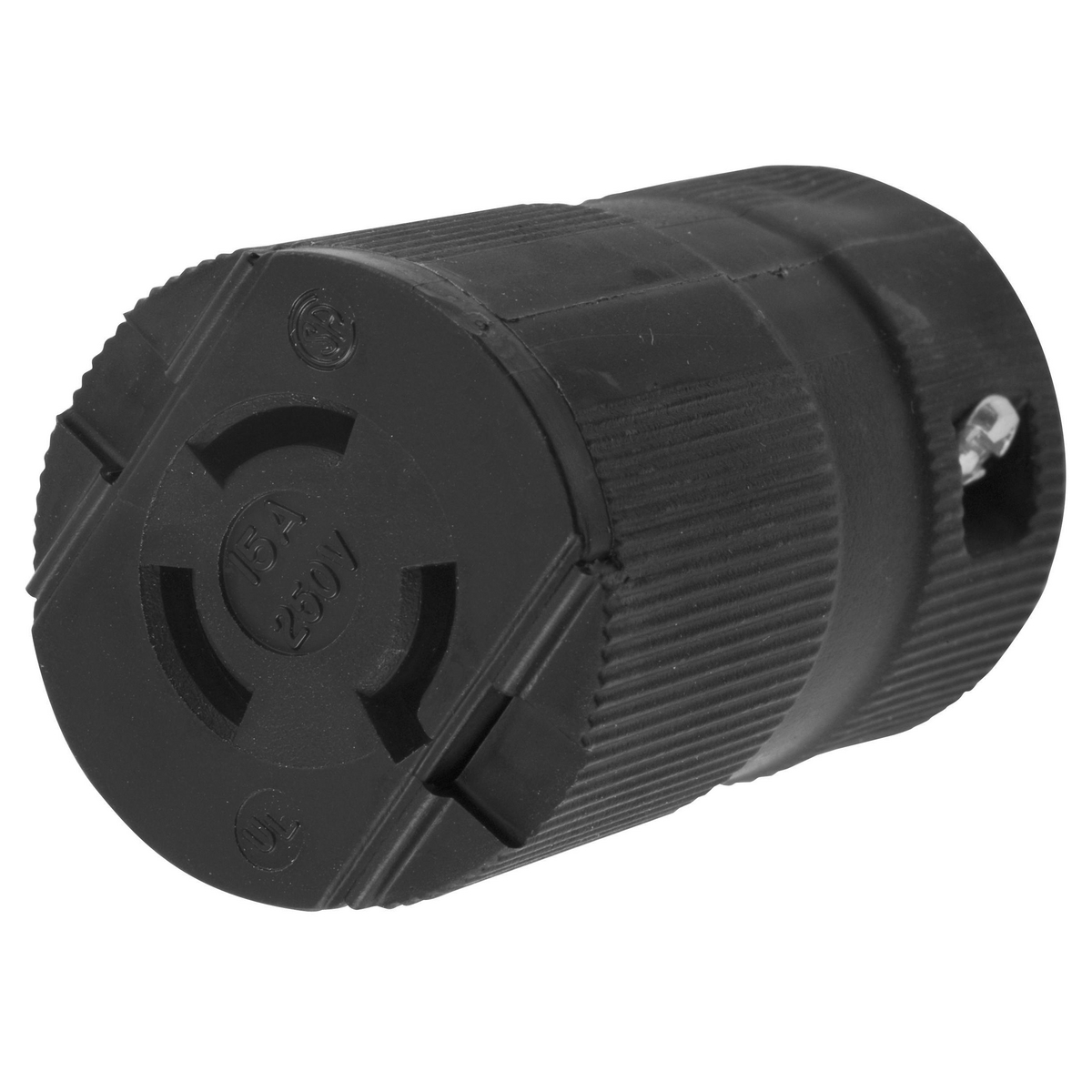

LKG CONN, 15A 250V, L6-15R, BK
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
LKG CONN, 15A 250V, L6-15R, BK
SKU91616
MFGR #HBL4579VBK
Your Cost: $25.15/ea
Wiring Device-Kellems Twist-Lock® Valise® Female Connector, Heavy Duty Isolated Grounding Standard Sized, 250 VAC, 15 A, 1.5 hp, 2 Pole, 3 Wires, L6-15R/WD1/WD5, Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black, 2.78 in L x 1.5 in W x 2.78 in H
Wiring Device-Kellems Twist-Lock® Valise® Female Connector, Heavy Duty Isolated Grounding Standard Sized, 250 VAC, 15 A, 1.5 hp, 2 Pole, 3 Wires, L6-15R/WD1/WD5, Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black, 2.78 in L x 1.5 in W x 2.78 in H
Application Heavy Duty Industrial ARRA Compliant C Buy American Compliant C Catalog Number HBL4579VBK Conductor Range #14AWG to #12AWG Connection Pressure Screw Terminal Cord Diameter 0.22 to 0.66 in Country of Origin US Currency USD Dimensions 2.78 in L x 1.5 in W x 2.78 in H Enclosure IP20 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 1.60 in Height [Metric] 4.0640 cm Horsepower 1-1/2 hp Insulation Insulated Body Length 3.00 in Length [Metric] 7.6200 cm Material Nylon Mounting Cord Mounted NEMA Rating L6-15R Number Of Conductors 3-Wire Grounding Number Of Poles 2 Returnable N Size 1.50 in x 1.50 in x 2.59 in Standard Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498Federal Specification W-C-596CSA C22.2 No. 42NEMA WD1/WD5 Sub Brand Twist-Lock Temperature Rating Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C Terminal Type Pressure Screw Type Connector Body UNSPSC 39121421 UPC 11 78358504322 UPC 12 783585043227 Width 1.70 in Width [Metric] 4.3180 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 15 A Color Black Number of Wires 3 Voltage Rating 250 VAC Heavy Duty Industrial Standard Product Two captive multiple drive assembly screws Totally insulated impact and crush resistant nylon body Powerful cord grips prevents conductor slippage and strain on wiring terminals
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Heavy Duty Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL4579VBK |
| Conductor Range | #14AWG to #12AWG |
| Connection | Pressure Screw Terminal |
| Cord Diameter | 0.22 to 0.66 in |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 2.78 in L x 1.5 in W x 2.78 in H |
| Enclosure | IP20 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 1.60 in |
| Height [Metric] | 4.0640 cm |
| Horsepower | 1-1/2 hp |
| Insulation | Insulated Body |
| Length | 3.00 in |
| Length [Metric] | 7.6200 cm |
| Material | Nylon |
| Mounting | Cord Mounted |
| NEMA Rating | L6-15R |
| Number Of Conductors | 3-Wire Grounding |
| Number Of Poles | 2 |
| Returnable | N |
| Size | 1.50 in x 1.50 in x 2.59 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498Federal Specification W-C-596CSA C22.2 No. 42NEMA WD1/WD5 |
| Sub Brand | Twist-Lock |
| Temperature Rating | Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C |
| Terminal Type | Pressure Screw |
| Type | Connector Body |
| UNSPSC | 39121421 |
| UPC 11 | 78358504322 |
| UPC 12 | 783585043227 |
| Width | 1.70 in |
| Width [Metric] | 4.3180 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 15 A |
| Color | Black |
| Number of Wires | 3 |
| Voltage Rating | 250 VAC |
| Heavy Duty Industrial |
| Standard Product |
| Two captive multiple drive assembly screws |
| Totally insulated impact and crush resistant nylon body |
| Powerful cord grips prevents conductor slippage and strain on wiring terminals |
