SensorSwitch™

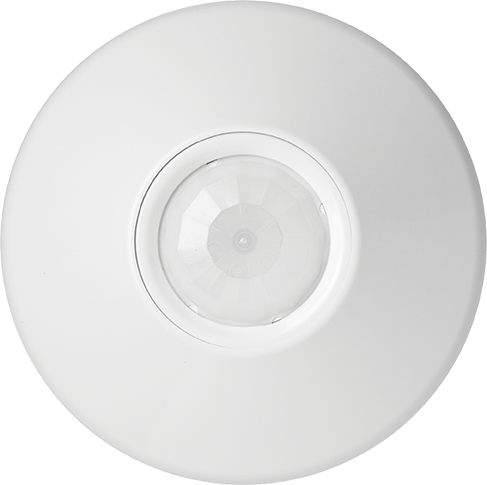

LITH CMR-PDT-10-2P Sensor
Custom_Product_Images_Illustration
SensorSwitch™
LITH CMR-PDT-10-2P Sensor
SKU567082
MFGR #CMR PDT 10 2P
Your Cost: $167.54/ea
Lithonia Lighting® Occupancy Sensor, Series: CMR, 347 VAC, 1/4 hp, 28 ft Coverage, 360 deg Viewing, 30 sec to 20 min Delay, 50/60 Hz Response, Wire, Photocell Dimming Control Output, Flush Mount, Plastic, White, 4.55 in Dia x 1.55 in D
Lithonia Lighting® Occupancy Sensor, Series: CMR, 347 VAC, 1/4 hp, 28 ft Coverage, 360 deg Viewing, 30 sec to 20 min Delay, 50/60 Hz Response, Wire, Photocell Dimming Control Output, Flush Mount, Plastic, White, 4.55 in Dia x 1.55 in D
Alternate Catalog Number 184FGM Application Cafeteria, Classroom, Closet/Storage Room, Conference Room, Examination Room, Hospital, Kitchen, Library, Living Area, Locker Room, Manufacturing, Open Office, Patient Room, Private Office, Restroom, Retail ARRA Compliant C Buy American Compliant C Catalog Number CMR PDT 10 2P Color White Control Output Photocell Dimming Country of Origin MX Currency USD Dimensions 4.55 in Dia x 1.55 in D Environmental Conditions Indoor EU RoHS Indicator C Gross Weight Per Pack 0.4500 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Height 4.50 in Height [Metric] 11.4300 cm Length 4.50 in Length [Metric] 11.4300 cm Material Plastic Mounting Flush Power Rating 1/4 hp Response Frequency 50/60 Hz Sensing Range 360 degrees Series CMR PDT Standard cUL, UL Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL/cUL Listed Supply Voltage 120, 277 Time Delay 30 s to 20 min Type 2-Pole Line Voltage UNSPSC 39122236 UPC 11 74597586530 UPC 12 745975865307 Warranty Description 5 Year Limited. Warranty varies by product. See warranty information at: www.acuitybrands.com/resources/terms-and-conditions Width 2.50 in Width [Metric] 6.3500 cm Stock Status NONSTOCK Brand SensorSwitch™ Manufacturer Acuity Brands Coverage 28 ft Mounting Type Flush Sensor Type PDT Viewing Angle 360 ° Voltage Rating 120/277 VAC Cafeteria, Classroom, Closet/Storage Room, Conference Room, Examination Room, Hospital, Kitchen, Library, Living Area, Locker Room, Manufacturing, Open Office, Patient Room, Private Office, Restroom, Retail The CMR 10 Series incorporates Passive Infrared (PIR) technology into an attractive and economical line powered sensor to provide maximum viewing from the ceiling. When mounted at 9 ft (2.74 m), this sensor views up to 28 ft (8.53 m) in all direction Push button programmable, adjustable time delays and multiple operating modes Dual technology 100 hr lamp burn-in timer mode No field calibration or sensitivity adjustments required No minimum load requirements Convenient test mode Dual relay, standard temperature range/humidity Green LED status indicator 3.5 in octagon box 40 ballasts at 0.5 mA dimming load
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 184FGM |
| Application | Cafeteria, Classroom, Closet/Storage Room, Conference Room, Examination Room, Hospital, Kitchen, Library, Living Area, Locker Room, Manufacturing, Open Office, Patient Room, Private Office, Restroom, Retail |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | CMR PDT 10 2P |
| Color | White |
| Control Output | Photocell Dimming |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.55 in Dia x 1.55 in D |
| Environmental Conditions | Indoor |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.4500 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Height | 4.50 in |
| Height [Metric] | 11.4300 cm |
| Length | 4.50 in |
| Length [Metric] | 11.4300 cm |
| Material | Plastic |
| Mounting | Flush |
| Power Rating | 1/4 hp |
| Response Frequency | 50/60 Hz |
| Sensing Range | 360 degrees |
| Series | CMR PDT |
| Standard | cUL, UL |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL/cUL Listed |
| Supply Voltage | 120, 277 |
| Time Delay | 30 s to 20 min |
| Type | 2-Pole Line Voltage |
| UNSPSC | 39122236 |
| UPC 11 | 74597586530 |
| UPC 12 | 745975865307 |
| Warranty Description | 5 Year Limited. Warranty varies by product. See warranty information at: www.acuitybrands.com/resources/terms-and-conditions |
| Width | 2.50 in |
| Width [Metric] | 6.3500 cm |
| Stock Status | NONSTOCK |
| Brand | SensorSwitch™ |
| Manufacturer | Acuity Brands |
| Coverage | 28 ft |
| Mounting Type | Flush |
| Sensor Type | PDT |
| Viewing Angle | 360 ° |
| Voltage Rating | 120/277 VAC |
| Cafeteria, Classroom, Closet/Storage Room, Conference Room, Examination Room, Hospital, Kitchen, Library, Living Area, Locker Room, Manufacturing, Open Office, Patient Room, Private Office, Restroom, Retail |
| The CMR 10 Series incorporates Passive Infrared (PIR) technology into an attractive and economical line powered sensor to provide maximum viewing from the ceiling. When mounted at 9 ft (2.74 m), this sensor views up to 28 ft (8.53 m) in all direction |
| Push button programmable, adjustable time delays and multiple operating modes |
| Dual technology |
| 100 hr lamp burn-in timer mode |
| No field calibration or sensitivity adjustments required |
| No minimum load requirements |
| Convenient test mode |
| Dual relay, standard temperature range/humidity |
| Green LED status indicator |
| 3.5 in octagon box |
| 40 ballasts at 0.5 mA dimming load |
