LINEMASTER®

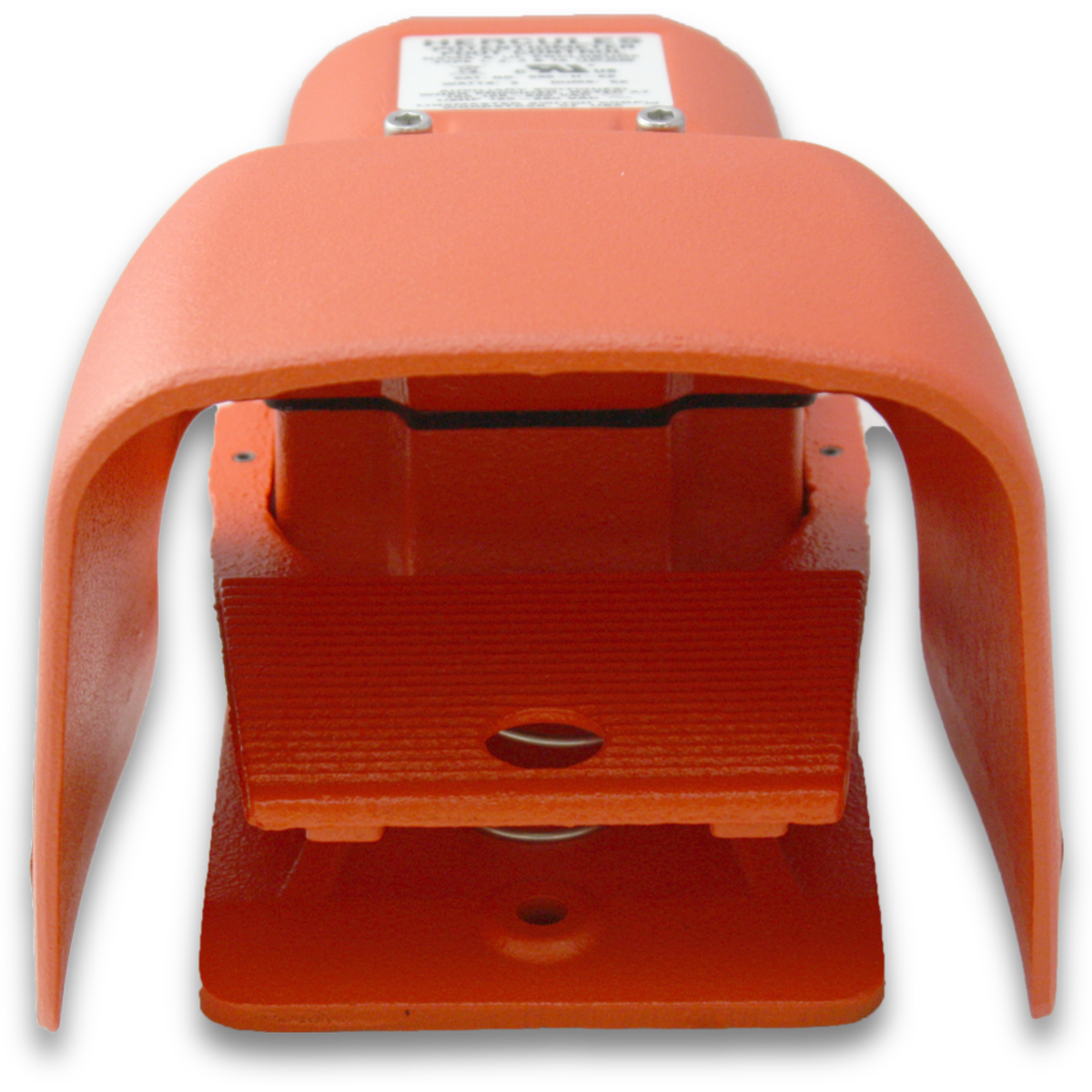

LINEMASTER® Hercules 500-AH-5K Foot Switch SPDT Full Shield Cast Iron 15A 125/250VAC
Custom_Product_Images_Illustration
LINEMASTER®
LINEMASTER® Hercules 500-AH-5K Foot Switch SPDT Full Shield Cast Iron 15A 125/250VAC
SKU472217
MFGR #500-AH-5K
Your Cost: $363.30/ea
Switch Type: Linear, 2 Watt 5K ohm. Actions: Momentary Variable Control. Circuitries: SPDT (Form C) 1 Auxiliary. Cable Entries: 3/4-14 NPT threaded entry. Housing Colors: Orange. Housing Materials: Cast Iron. Shields & Guards: Full shield. Switch Connections: Solder terminal, Quick-connect terminal. Electrical Ratings: 15A, 125-250 VAC, 1/2 HP 125-250 VAC.
Switch Type: Linear, 2 Watt 5K ohm. Actions: Momentary Variable Control. Circuitries: SPDT (Form C) 1 Auxiliary. Cable Entries: 3/4-14 NPT threaded entry. Housing Colors: Orange. Housing Materials: Cast Iron. Shields & Guards: Full shield. Switch Connections: Solder terminal, Quick-connect terminal. Electrical Ratings: 15A, 125-250 VAC, 1/2 HP 125-250 VAC.
Catalog Number 500-AH-5K Color Orange Connection Solder Terminal;Quick-Connect Terminal Contact Configuration SPDT Contact Rating 15A, 125-250 VAC, ½ HP Degree Of Protection IP56 Enclosure NEMA Type 1, 2, 4, 13 Material Cast Iron Mounting Floor Mount Number Of Poles 1 Type Full Shield Hercules Potentiometer Wattage 2 W Stock Status NONSTOCK Brand LINEMASTER® Power Rating 2 W Voltage Rating 125 to 250 VAC Benders;Box Marker;Brakes;Chopper;Cleaner;Closing System;Conveyor Systems;Crimping Machine;Cut Off Machines for Pipe and Tubing;Cutters;Cutting Machine;Drilling Machine;Drilling Table;Fabricator;Filler Removal Machine;Folding Machine;Food Processing Equipment;Forming System;Grinder;Grinding Machine;Lacers;Lathes;Lift;Marking System;Material Handlers;Microscopes;Missile Launching Control Systems;Molding Machines;Nibbler;Notcher;Oil Drilling Rigs;Platforms;Positioners;Potters Wheels;Puller;Punching Equipment;Rewind System;Riveter;Roll Groover;Router;Saw;Saw Mill;Scrap Chopper;Sewer Cleaning Equipment;Shears;Shoe Machine;Shredder;Space Shuttle;Spinners;Stapler;Surgical Equipment;Tables;Tester;Thread Rolling Machine;Threading Machine;Trimming Beading and Forming Machines;Beading & Forming Machines;Tube-end Forming Machines;Tube Expansion Device;Turn/Mill Centers;Turner;Turning Centers;Turntable;Tying & Bundling Machines;Voltage Control;Water Cannon;Welders;Winding Equipment;Wire Drawing System Drip Tight;Dust Tight;Watertight;Oil Tight;Rugged cast metal enclosure has sufficient weight to keep the switch from sliding when being operated;All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw;3 holes provided for rigid mounting to the floor or equipment;Specify the maximum resistance you want 3 holes provided for rigid mounting to the floor or equipment Rugged cast metal enclosure has sufficient weight to keep the switch from sliding when being operated All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw Drip tight, Dust tight, Watertight, Oil tight NEMA Type 1, 2, 4, 13; UL ENCLOSURE Type 1, 2, 4, 13 Single 3/4 -14 N.P.T. threaded conduit entry is standard The treadle is spring loaded and returns to the normal position when the foot pressure is removed The switch will operate at the beginning of the treadle stroke Up to 3 SPDT switches can be added and adjusted for operation at any point of the treadle stroke
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Catalog Number | 500-AH-5K |
| Color | Orange |
| Connection | Solder Terminal;Quick-Connect Terminal |
| Contact Configuration | SPDT |
| Contact Rating | 15A, 125-250 VAC, ½ HP |
| Degree Of Protection | IP56 |
| Enclosure | NEMA Type 1, 2, 4, 13 |
| Material | Cast Iron |
| Mounting | Floor Mount |
| Number Of Poles | 1 |
| Type | Full Shield Hercules Potentiometer |
| Wattage | 2 W |
| Stock Status | NONSTOCK |
| Brand | LINEMASTER® |
| Power Rating | 2 W |
| Voltage Rating | 125 to 250 VAC |
| Benders;Box Marker;Brakes;Chopper;Cleaner;Closing System;Conveyor Systems;Crimping Machine;Cut Off Machines for Pipe and Tubing;Cutters;Cutting Machine;Drilling Machine;Drilling Table;Fabricator;Filler Removal Machine;Folding Machine;Food Processing Equipment;Forming System;Grinder;Grinding Machine;Lacers;Lathes;Lift;Marking System;Material Handlers;Microscopes;Missile Launching Control Systems;Molding Machines;Nibbler;Notcher;Oil Drilling Rigs;Platforms;Positioners;Potters Wheels;Puller;Punching Equipment;Rewind System;Riveter;Roll Groover;Router;Saw;Saw Mill;Scrap Chopper;Sewer Cleaning Equipment;Shears;Shoe Machine;Shredder;Space Shuttle;Spinners;Stapler;Surgical Equipment;Tables;Tester;Thread Rolling Machine;Threading Machine;Trimming Beading and Forming Machines;Beading & Forming Machines;Tube-end Forming Machines;Tube Expansion Device;Turn/Mill Centers;Turner;Turning Centers;Turntable;Tying & Bundling Machines;Voltage Control;Water Cannon;Welders;Winding Equipment;Wire Drawing System |
| Drip Tight;Dust Tight;Watertight;Oil Tight;Rugged cast metal enclosure has sufficient weight to keep the switch from sliding when being operated;All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw;3 holes provided for rigid mounting to the floor or equipment;Specify the maximum resistance you want |
| 3 holes provided for rigid mounting to the floor or equipment |
| Rugged cast metal enclosure has sufficient weight to keep the switch from sliding when being operated |
| All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw |
| Drip tight, Dust tight, Watertight, Oil tight |
| NEMA Type 1, 2, 4, 13; UL ENCLOSURE Type 1, 2, 4, 13 |
| Single 3/4 |
| The treadle is spring loaded and returns to the normal position when the foot pressure is removed |
| The switch will operate at the beginning of the treadle stroke |
| Up to 3 SPDT switches can be added and adjusted for operation at any point of the treadle stroke |
