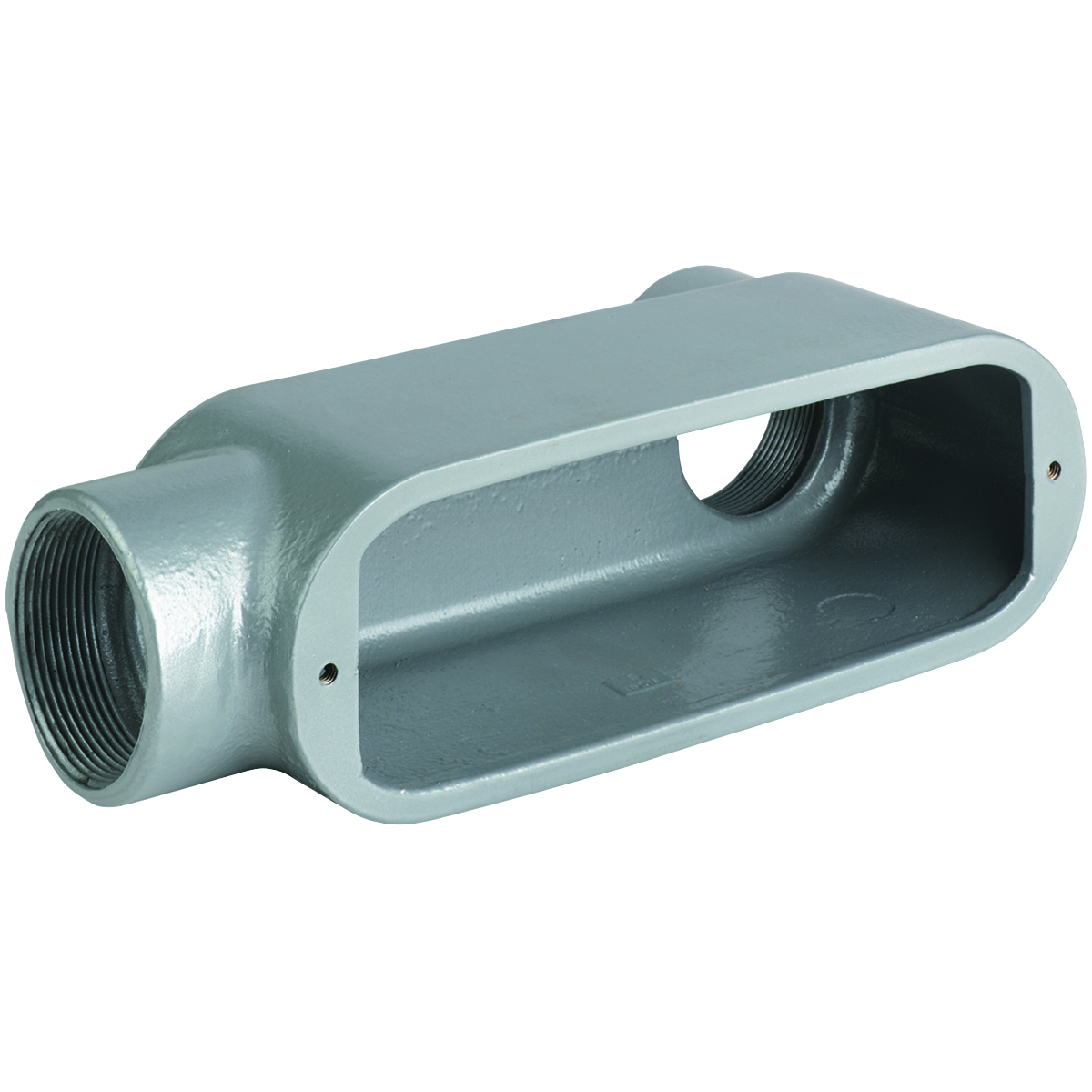

Killark® OLB-4 O Series Type LB Conduit Body, 1-1/4 in Hub, 28.8 cu-in, Aluminium, Powder Coated
Custom_Product_Images_Illustration
Killark® OLB-4 O Series Type LB Conduit Body, 1-1/4 in Hub, 28.8 cu-in, Aluminium, Powder Coated
SKU463218
MFGR #OLB-4
$/ea
O series conduit bodies are our most compact conduits that apply highest durability with the securest installation. The O series is available in iron and aluminum, with superior corrosive protected electrostatically applied paint.
O series conduit bodies are our most compact conduits that apply highest durability with the securest installation. The O series is available in iron and aluminum, with superior corrosive protected electrostatically applied paint.
Application To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. ARRA Compliant C Buy American Compliant C Catalog Number OLB-4 Color Gray Connection Type Threaded Country of Origin MX Currency USD Dimensions 7-1/2 in L x 2-5/8 in W x 3-3/16 in H EU RoHS Indicator N Gross Volume Per Pack 180.63 Gross Volume per Pack Metric 2959.98 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.1000 lb Gross Weight per Pack Metric 0.50 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7609000000 Height 4.00 in Height [Metric] 10.1600 cm Length 8.00 in Length [Metric] 20.3200 cm Number of Hubs 2 Returnable N Series O Series Standard UL, CSA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E3397CSA CertifiedLR11852Federal Specification W-C-586D/A-A 50563 Type Aluminum conduit body UNSPSC 39131708 UPC 11 78393649028 UPC 12 78393649028 Width 3.00 in Width [Metric] 7.6200 cm Stock Status NONSTOCK Brand Killark Manufacturer Hubbell Capacity 28.8 in³ Finish Powder Coat Hub Size 1.25 in Material Copper-Free Aluminum To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 28.8 cu. in. Suitable for wet locations when used with gasketed covers Raintight when used with gasketed covers Screw-on cover 90 deg hub Back access opening Interchangeable with competitive products, stainless steel screws on stamped and cast covers Copper-free aluminum material Electrostatically Powder-Coated finish
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | OLB-4 |
| Color | Gray |
| Connection Type | Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7-1/2 in L x 2-5/8 in W x 3-3/16 in H |
| EU RoHS Indicator | N |
| Gross Volume Per Pack | 180.63 |
| Gross Volume per Pack Metric | 2959.98 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.1000 lb |
| Gross Weight per Pack Metric | 0.50 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7609000000 |
| Height | 4.00 in |
| Height [Metric] | 10.1600 cm |
| Length | 8.00 in |
| Length [Metric] | 20.3200 cm |
| Number of Hubs | 2 |
| Returnable | N |
| Series | O Series |
| Standard | UL, CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E3397CSA CertifiedLR11852Federal Specification W-C-586D/A-A 50563 |
| Type | Aluminum conduit body |
| UNSPSC | 39131708 |
| UPC 11 | 78393649028 |
| UPC 12 | 78393649028 |
| Width | 3.00 in |
| Width [Metric] | 7.6200 cm |
| Stock Status | NONSTOCK |
| Brand | Killark |
| Manufacturer | Hubbell |
| Capacity | 28.8 in³ |
| Finish | Powder Coat |
| Hub Size | 1.25 in |
| Material | Copper-Free Aluminum |
| To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 28.8 cu. in. |
| Suitable for wet locations when used with gasketed covers |
| Raintight when used with gasketed covers |
| Screw-on cover |
| 90 deg hub |
| Back access opening |
| Interchangeable with competitive products, stainless steel screws on stamped and cast covers |
| Copper-free aluminum material |
| Electrostatically Powder-Coated finish |
