KB Electronics

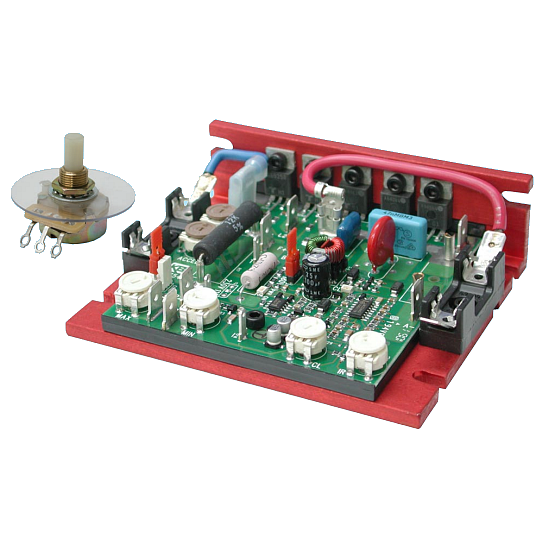

KB Electronics KBMM-225D 115/230 VAC, thru 0.75/1.5 HP, 1.5/3.0 HP with heatsink, 90/180 VDC ARM
KB Electronics
KB Electronics KBMM-225D 115/230 VAC, thru 0.75/1.5 HP, 1.5/3.0 HP with heatsink, 90/180 VDC ARM
SKU28145
MFGR #9451
Your Cost: $133.10/ea
List: The KBMM™ full-wave variable speed DC motor controls, now with SMT construction, offer the user the ultimate in reliability and performance at an affordable price. The controls contain a unique, super fast, Direct-Fed™ current limit circuit that helps to protect the SCR power bridge against direct shorts 2. The reliability of the KBMM™ is further enhanced with the use of high-surge, 25A SCRs and AC line and armature fusing 5. The KBMM™ is fitted with KB’s exclusive Plug-in Horsepower Resistor® 5 . It eliminates the need for recalibrating IR Comp and Current Limit when the control is used on various horsepower motors. In addition, the rating of the control can be extended to 1-1/2 HP at 115V and 3 HP at 230V by the use of KB’s auxiliary heat sink. Models KBMM225 and KBMM-225D also allow operation of 90 VDC motors when used on 230 VAC line input.
The KBMM™ full-wave variable speed DC motor controls, now with SMT construction, offer the user the ultimate in reliability and performance at an affordable price. The controls contain a unique, super fast, Direct-Fed™ current limit circuit that helps to protect the SCR power bridge against direct shorts 2. The reliability of the KBMM™ is further enhanced with the use of high-surge, 25A SCRs and AC line and armature fusing 5. The KBMM™ is fitted with KB’s exclusive Plug-in Horsepower Resistor® 5 . It eliminates the need for recalibrating IR Comp and Current Limit when the control is used on various horsepower motors. In addition, the rating of the control can be extended to 1-1/2 HP at 115V and 3 HP at 230V by the use of KB’s auxiliary heat sink. Models KBMM225 and KBMM-225D also allow operation of 90 VDC motors when used on 230 VAC line input.
Application Conveyors;Packaging Machines;Exercise Equipment;Pumps;Feeders;Screening and Printing Equipment Brand KB Electronics Catalog Number 9451 Gross Weight Per Pack 0.1000 lb Input 115/230 VAC Manufacturer KB Electronics Mounting Chassis Mount Standard cULus Recognized;CE Certified Stock Status NONSTOCK Torque Rating 0 to 200 PCT Type Variable Speed DC Motor Control UPC 11 02482209451 UPC 12 02482209451 Voltage Rating 0 to 180 VDC;0 to 90 VDC Conveyors;Packaging Machines;Exercise Equipment;Pumps;Feeders;Screening and Printing Equipment Plug-in Horsepower Resistor®5 -Eliminates the need to calibrate control for IR Comp and Current Limit when used on various horsepower motors;Auto Inhibit®-Allows the control to be rapidly switched on and off using the AC line: Inhibit and Enable -Allows the control to be turned on and off using electronic switching;Trimpots: MIN & MAX Speed, IR Comp, Current Limit, ACCEL & DECEL The KBMM Series of DC Drives consist of three models rated for 1/100 to 3 horsepower motors. The drive contains Direct-Fed ™ CL that helps protect the SCR power bridge against shorts due to commutator arcing and prevents motor demagnetization. -Plug-in Horsepower Resistor®5 - Eliminates the need to calibrate control for IR Comp and Current Limit when used on various horsepower motors. -Auto Inhibit® - Allows the control to be rapidly switched on and off using the AC line. -Inhibit and Enable - Allows the control to be turned on and off using electronic switching. -Trimpots: MIN & MAX Speed, IR Comp, Current Limit, ACCEL & DECEL -Model KBMM-225D can operate on 115 or 230 VAC input with 90 or 180 VDC motors. - Jumper selectable. -Model KBMM-225 operates on 230 VAC input with 90 or 180 VDC motors. -Armature or Tach-Generator Feedback -MOV Transient Protection -SMT Construction -Power On and Current Limit LED Indicators -Built-in Armature and AC Line Fusing5|-Main Speed Potentiometer (5kΩ)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Conveyors;Packaging Machines;Exercise Equipment;Pumps;Feeders;Screening and Printing Equipment |
| Brand | KB Electronics |
| Catalog Number | 9451 |
| Gross Weight Per Pack | 0.1000 lb |
| Input | 115/230 VAC |
| Manufacturer | KB Electronics |
| Mounting | Chassis Mount |
| Standard | cULus Recognized;CE Certified |
| Stock Status | NONSTOCK |
| Torque Rating | 0 to 200 PCT |
| Type | Variable Speed DC Motor Control |
| UPC 11 | 02482209451 |
| UPC 12 | 02482209451 |
| Voltage Rating | 0 to 180 VDC;0 to 90 VDC |
| Conveyors;Packaging Machines;Exercise Equipment;Pumps;Feeders;Screening and Printing Equipment |
| Plug-in Horsepower Resistor®5 -Eliminates the need to calibrate control for IR Comp and Current Limit when used on various horsepower motors;Auto Inhibit®-Allows the control to be rapidly switched on and off using the AC line: Inhibit and Enable -Allows the control to be turned on and off using electronic switching;Trimpots: MIN & MAX Speed, IR Comp, Current Limit, ACCEL & DECEL |
| The KBMM Series of DC Drives consist of three models rated for 1/100 to 3 horsepower motors. The drive contains Direct-Fed ™ CL that helps protect the SCR power bridge against shorts due to commutator arcing and prevents motor demagnetization. |
| -Plug-in Horsepower Resistor®5 - Eliminates the need to calibrate control for IR Comp and Current Limit when used on various horsepower motors. |
| -Auto Inhibit® - Allows the control to be rapidly switched on and off using the AC line. |
| -Inhibit and Enable - Allows the control to be turned on and off using electronic switching. |
| -Trimpots: MIN & MAX Speed, IR Comp, Current Limit, ACCEL & DECEL |
| -Model KBMM-225D can operate on 115 or 230 VAC input with 90 or 180 VDC motors. - Jumper selectable. |
| -Model KBMM-225 operates on 230 VAC input with 90 or 180 VDC motors. |
| -Armature or Tach-Generator Feedback |
| -MOV Transient Protection -SMT Construction |
| -Power On and Current Limit LED Indicators |
| -Built-in Armature and AC Line Fusing5|-Main Speed Potentiometer (5kΩ) |
