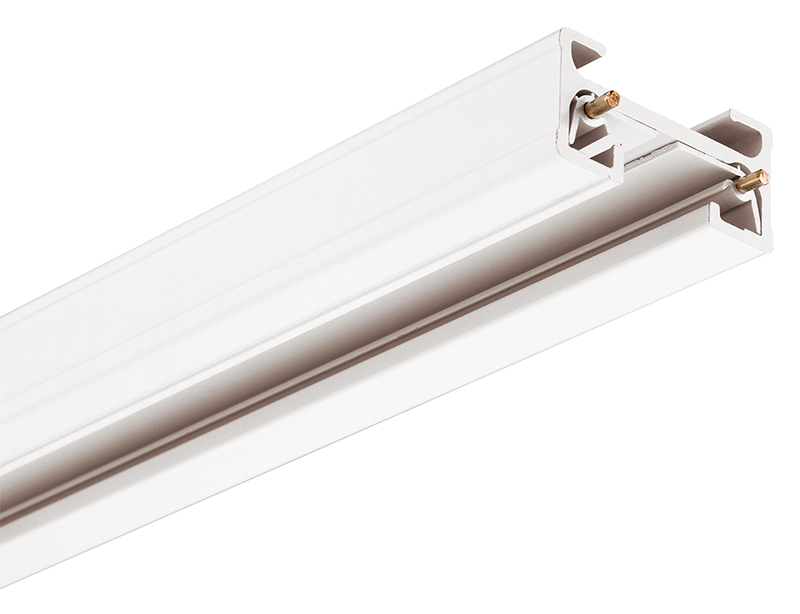

Juno® Trac-Master® T8WH Single Circuit Track, 91-7/8 in L x 1-3/8 in W x 11/16 in D, Aluminum
Track Rails
12070
MFG #: T 8FT WH
Juno®
56.68000
/ ea
Trac-Master® T-Series low-profile, single-circuit trac sections can be surface or pendant mounted. They feature an I-beam cross section that provides added strength and rigidity in suspended pendant applications and are compatible with a full range of feed, connector, and mounting accessories to satisfy virtually any trac lighting requirement. Trac sections are available in 2-, 4-, 6-, 8-, and 12-foot lengths and accept all the fixtures in the exceptional Trac-Master and Trac-Lites product lines. Offered in white, black, natural, or silver.
- Brochure URL - 10988_JC56MDPXOUH8Z42G.pdf(Brochure URL)
- http://www.junolightinggroup.com/(Seller Home Page URL)
- http://www.lithonia.com(Seller Home Page URL)
- Install Instructions 1 URL - 10988_52VIKOXED8HW19ZM.pdf(Install Instructions 1 URL)
- Install Instructions URL - P773.pdf(Install Instructions URL)
- Line Drawing URL - 10988_KZAJVDHQ9RT7G8LO.gif(Line Drawing URL)
- Line Drawing URL - JT-T12-la1.gif(Line Drawing URL)
- Spec Sheet 1 URL - IDW_DOCUMENT_1525170744214.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10988_0IRYS62VCDZXQ195.pdf(Spec Sheet URL)
- Spec Sheet URL - D1_1_0.pdf(Spec Sheet URL)
- Video - https://www.adhqcatalog.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_T94BL_Data_Sheet.pdf(Video)
- Applications
- Features
| Trac Lighting |
| One-piece thermoplastic insulator ensures consistent conductor spacing for reliable electrical contact |
| Injection-molded polycarbonate dead-end with set screw |
| Insulating bushings supplied at mounting hole locations to prevent shorts to the ground |
| Debossed polarity line provides visual cue to proper trac, trac connector, and fixture alignment |
| Integral raceway in top of channel accommodates pendant mounting hardware and wire routing to electrical feed |
| Connectors and feeds simply push into trac sections |
| Standard lengths may be cut to length by the installer |
| Two 12-gauge solid copper conductors |
| Compatible withTrac-Master 120 VAC one circuit system |
| Aluminum channel used as system ground |
| 8 ft nominal length |
| I-beam cross section provides added strength and rigidity in pendant suspended applications |
