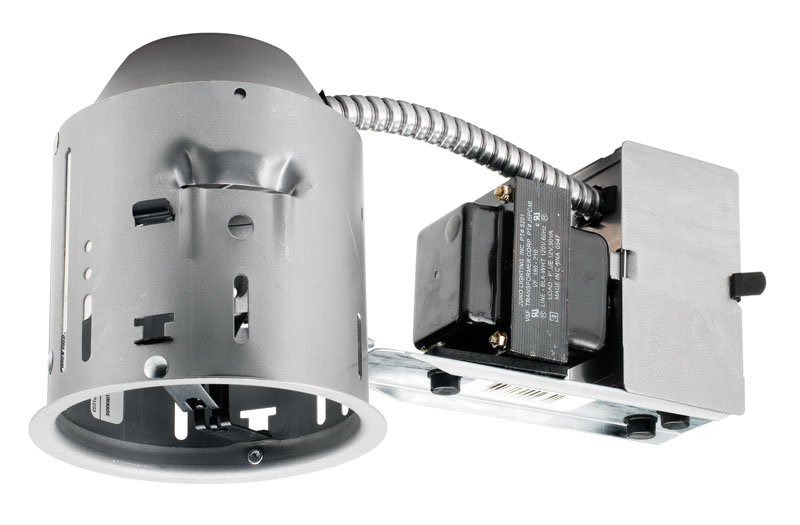

Juno® TC44R TC Series Low Voltage Remodel Universal Recessed Lighting Housing, MR16 Incandescent Lamp, Non-IC Insulation
Recessed Lighting Housings
12092
MFG #: TC44R
Juno®
78.52000
/ ea
The non-IC, low voltage remodel housing is ideal for applications where the backside of the ceiling is not accessible. The fixture installs through an opening in the ceiling from below and is secured by factory installed remodel springs. The housing is designed for non-insulated areas or where insulation is spaced at least 3 ines from the housing.
- http://www.lithonia.com(Seller Home Page URL)
- Install Instructions 1 URL - 10988_FHWSGXY6KUQL29IO.pdf(Install Instructions 1 URL)
- Line Drawing URL - 10988_JIQY4V0WAONB9362.gif(Line Drawing URL)
- Line Drawing URL - JR-TC44R-LA1.gif(Line Drawing URL)
- Install Instructions URL - IC & TC Remodel P3060.pdf(Install Instructions URL)
- Spec Sheet 1 URL - ID-SPE-v1-G3_2_8.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10988_C1HSE2A650W8NIDB.pdf(Spec Sheet URL)
- Spec Sheet URL - 10988_WYG2LPUT6VXB9ZI7.pdf(Spec Sheet URL)
- Applications
- Features
| Recessed Residential; Damp Location; Wet Location w/appr Trims |
| Ceramic bi-pin socket with aluminum heat shield |
| Remodel springs accommodate up to a 1-1/8-in ceiling thickness |
| Steel housing is fully assembled for ease of installation |
| 120 VAC/12 VDC, 50 VA thermally protected magnetic transformer |
| Pre-wired junction box includes (3) 1/2 in knockouts with pryout slots, (4) non-metallic sheathed cable connectors and ground wire |
| Available with low voltage magnetic transformer or low voltage electronic transformer |
| UL listed, cUL, CSA certified for through branch wiring, maximum (4) 12 AWG minimum 90 deg C branch circuit conductors |
| Thermally protected against improper use of insulation and lamps |
| Installs through an opening in the ceiling from below |
| Secured in place by factory installed remodel springs |
| Design for use in non-insulated areas |
| If installed where insulation is present, the insulation must be pulled back 3 in from all sides of the TC housing |
| Remodel spring accommodate up to 1-1/8 in ceiling thickness |
| The fixture installs through an opening in the ceiling from below and is secured by factory installed remodel springs |
