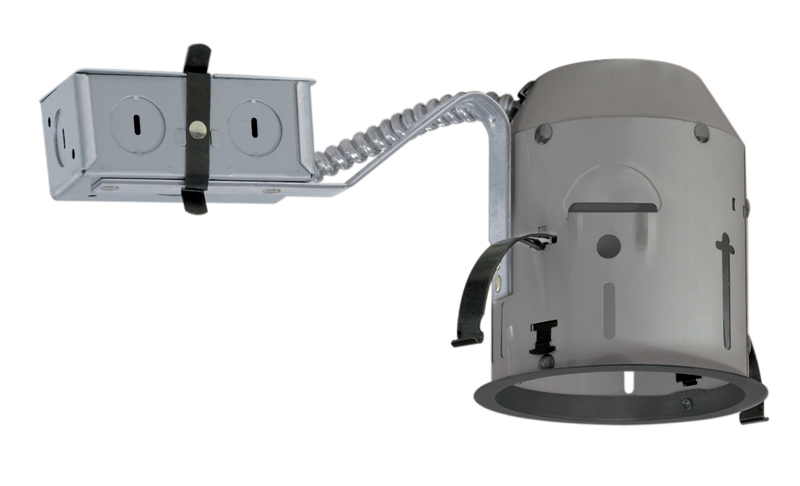

Juno® TC1R TC Series Adjustable Miniature Remodel Universal Recessed Lighting Housing, Incandescent Lamp, Non-IC Insulation
Recessed Lighting Housings
12153
MFG #: TC1R
Juno®
11.82000
/ ea
The non-IC remodel housing is ideal for applications where the backside of the ceiling is not accessible. The housing is designed to be installed in non-insulated areas or where insulation is spaced 3 ines away from the housing.
- http://www.junolightinggroup.com(Seller Home Page URL)
- http://www.lithonia.com(Seller Home Page URL)
- Install Instructions 1 URL - 10988_FHWSGXY6KUQL29IO.pdf(Install Instructions 1 URL)
- Install Instructions URL - TC44R.pdf(Install Instructions URL)
- Line Drawing URL - 10988_MSF249QBUX86310Y.gif(Line Drawing URL)
- Line Drawing URL - JR-TC1R-LA1.gif(Line Drawing URL)
- Spec Sheet 1 URL - ID-SPE-v1-G3_1_2.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10988_NDAR16ESFVCKOJUB.pdf(Spec Sheet URL)
- Spec Sheet URL - G3_1_2.PDF(Spec Sheet URL)
- Warranty URL - terms-and-conditions(Warranty URL)
- Applications
- Features
| Recessed Residential; Damp Location |
| Detachable medium base porcelain socket with nickel plated copper screw shell |
| Remodel springs accommodate up to a 1-1/8-in ceiling thickness |
| Steel housing is fully assembled for ease of installation |
| Pre-wired junction box with (5) 1/2 in knockouts with pryout slots, (4) non-metallic sheathed cable connectors and ground wire |
| Shadow-free, knife edge trim design blends smoothly into the ceiling |
| UL listed, cUL, CSA certified for through branch wiring, maximum (4) 12 AWG minimum 90 deg C branch circuit conductors |
| Thermally protected against improper use of lamps or insulation |
| Installs through an opening in the ceiling from below |
| Secured in place by factory installed remodel springs |
| Design for use in non-insulated areas |
| If installed where insulation is present, the insulation must be pulled back 3 in from all sides of the TC housing |
| Remodel springs accommodate up to a 1-1/8 in ceiling thickness |
| R14/R16/R20/PAR16/PAR20 lamps |
