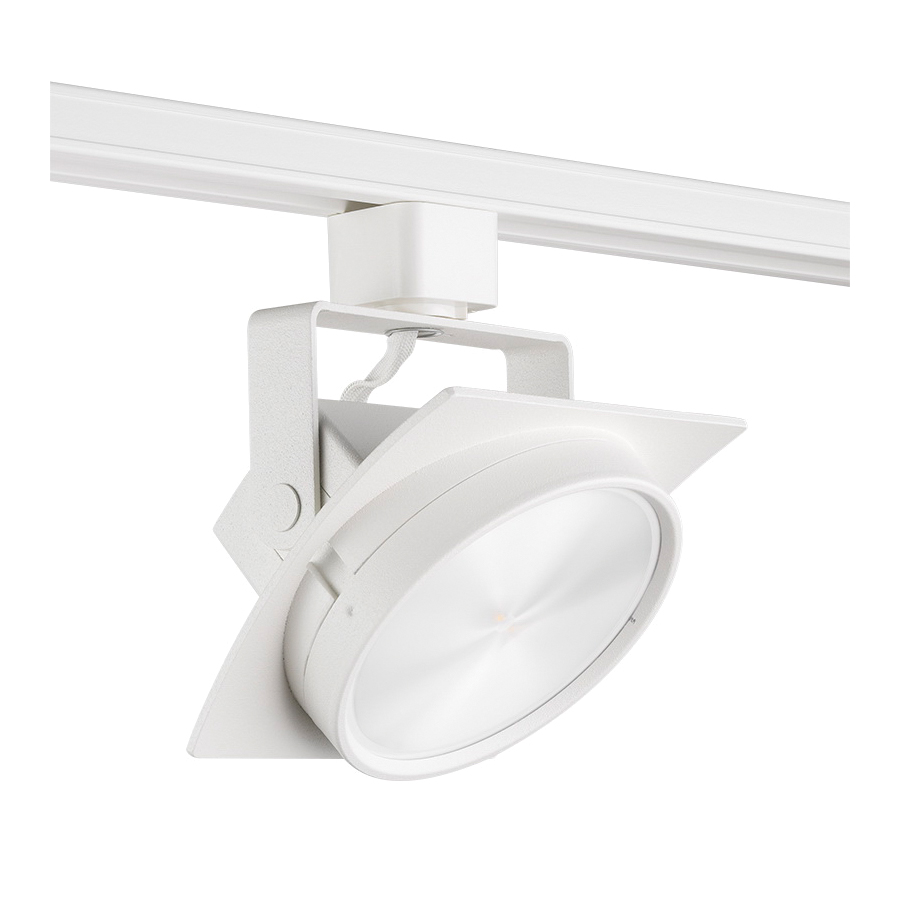

Juno® T271L35KNWH Trac-Master™ Arc™ T271L Avant Garde Track Head, LED Lamp, 13.2 W Fixture, 120 VAC, 5-61/64 in Maximum Extension
Custom_Product_Images_Illustration
Juno® T271L35KNWH Trac-Master™ Arc™ T271L Avant Garde Track Head, LED Lamp, 13.2 W Fixture, 120 VAC, 5-61/64 in Maximum Extension
SKU897567
MFGR #T271L35KNWH
$/ea
The ultra-efficient optical system of the T271L Arc™ LED Series trac fixture maximizes efficiency while minimizing fixture depth, thereby creating a high-performance trac light with a unique, attractive aesthetic. It approximates the light output and distribution of a 60-75W PAR30 halogen lamp but consumes just one-fifth the energy and lasts about 15-times longer. It is available in 4 color temperatures with a typical 85 CRI. Optional high CRI versions are available with a typical 92 CRI, as well as Enhanced Spectrum versions. The Arc LED can be supplied with a hexcell louver that optimizes visual cutoff.
The ultra-efficient optical system of the T271L Arc™ LED Series trac fixture maximizes efficiency while minimizing fixture depth, thereby creating a high-performance trac light with a unique, attractive aesthetic. It approximates the light output and distribution of a 60-75W PAR30 halogen lamp but consumes just one-fifth the energy and lasts about 15-times longer. It is available in 4 color temperatures with a typical 85 CRI. Optional high CRI versions are available with a typical 92 CRI, as well as Enhanced Spectrum versions. The Arc LED can be supplied with a hexcell louver that optimizes visual cutoff.
Beam Spread Narrow Flood Catalog Number T271L35KNWH Color Rendering Index [CRI] 80 Color Temperature 3500 K Country of Origin UKN Gross Weight Per Pack 0.7270 lb Housing Finish Silver Housing Material Die Cast Aluminum Lamp Wattage 13 W Length 5-61/64 in Mounting Type Fixture Number Of Lamps 1 Series T271L Standards cUL Listed, DLC Approved, ENERGY STAR Certified, UL Listed Type Avant Garde Phase Dimmable UNSPSC 39111508 UPC 11 66120935314 UPC 12 66120935314 Width 2-1/2 in Stock Status NONSTOCK Brand Juno® Manufacturer Acuity Brands Lamp Type LED Voltage Rating 120 VAC Die-cast aluminum housing provides outstanding thermal management of LED, yielding 70% average lumen maintenance at 50000 hr of operation Fashionable, elegant design complements any decor High performance LED array provides outstanding reliability, performance and color quality/consistency 2700 K, 3000 K, 3500 K or 4000 K white phosphor high performance LEDs Chromaticity range within a 3-step MacAdam Ellipse Concealed behind LED light engine housing to minimize overall fixture footprint Insulating air gap between driver and LED light engine optimizes thermal operation Provides quiet operation with or without dimming Dimmable using high quality reverse phase electronic low voltage (ELV) dimmers Solid state electronic, Class 2 compliant Integral overcurrent and short circuit protection Designed for greater than 50000 hr operating life Proprietary, interchangeable polycarbonate lenses available in three factory-configured beam spreads Optional louver version retains lens and offers additional visual cutoff using a hexcell design Compatible with Juno Trac-Master 1 or 2-circuit systems or Juno Trac-Lites system Copper alloy contacts provide precise spring action - no arcing and will not take a set True, positive electrical ground Patented embossed polarity arrows on bottom of adapter Spring-loaded positive latch with embossed polarity arrows secures trac light to trac Pull-up contact to up position for two-circuit application
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Beam Spread | Narrow Flood |
| Catalog Number | T271L35KNWH |
| Color Rendering Index [CRI] | 80 |
| Color Temperature | 3500 K |
| Country of Origin | UKN |
| Gross Weight Per Pack | 0.7270 lb |
| Housing Finish | Silver |
| Housing Material | Die Cast Aluminum |
| Lamp Wattage | 13 W |
| Length | 5-61/64 in |
| Mounting Type | Fixture |
| Number Of Lamps | 1 |
| Series | T271L |
| Standards | cUL Listed, DLC Approved, ENERGY STAR Certified, UL Listed |
| Type | Avant Garde Phase Dimmable |
| UNSPSC | 39111508 |
| UPC 11 | 66120935314 |
| UPC 12 | 66120935314 |
| Width | 2-1/2 in |
| Stock Status | NONSTOCK |
| Brand | Juno® |
| Manufacturer | Acuity Brands |
| Lamp Type | LED |
| Voltage Rating | 120 VAC |
| Die-cast aluminum housing provides outstanding thermal management of LED, yielding 70% average lumen maintenance at 50000 hr of operation |
| Fashionable, elegant design complements any decor |
| High performance LED array provides outstanding reliability, performance and color quality/consistency |
| 2700 K, 3000 K, 3500 K or 4000 K white phosphor high performance LEDs |
| Chromaticity range within a 3-step MacAdam Ellipse |
| Concealed behind LED light engine housing to minimize overall fixture footprint |
| Insulating air gap between driver and LED light engine optimizes thermal operation |
| Provides quiet operation with or without dimming |
| Dimmable using high quality reverse phase electronic low voltage (ELV) dimmers |
| Solid state electronic, Class 2 compliant |
| Integral overcurrent and short circuit protection |
| Designed for greater than 50000 hr operating life |
| Proprietary, interchangeable polycarbonate lenses available in three factory-configured beam spreads |
| Optional louver version retains lens and offers additional visual cutoff using a hexcell design |
| Compatible with Juno Trac-Master 1 or 2-circuit systems or Juno Trac-Lites system |
| Copper alloy contacts provide precise spring action - no arcing and will not take a set |
| True, positive electrical ground |
| Patented embossed polarity arrows on bottom of adapter |
| Spring-loaded positive latch with embossed polarity arrows secures trac light to trac |
| Pull-up contact to up position for two-circuit application |
