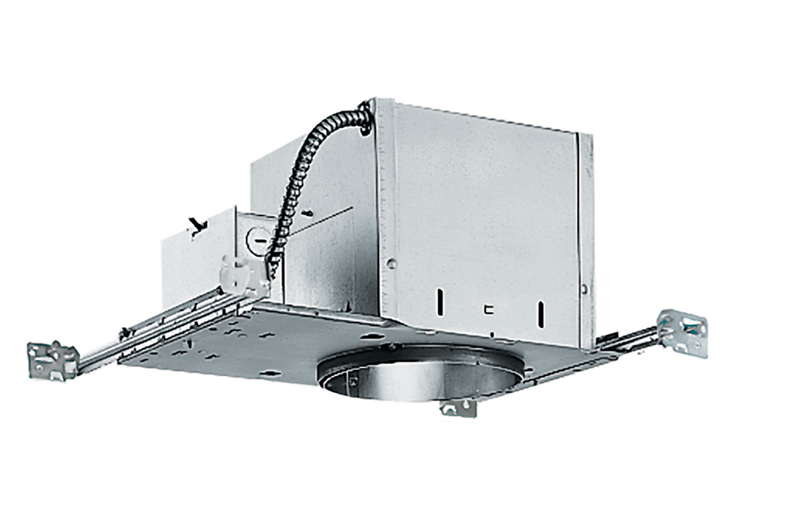

Juno® Air-Loc® IC2 Universal Recessed Lighting Housing, Incandescent Lamp, IC Insulation, 120 VAC, Aluminum Housing
Recessed Lighting Housings
12159
MFG #: IC2
Juno®
28.80000
/ ea
The IC-rated 6-inch high wattage double wall construction housing can be completely covered with insulation. The energy efficient housing features an Air-Loc installation to stop infiltration and exfiltration of air, reducing heating and cooling costs.
- Catalog URL - JUNO_IC1_Brochure.pdf(Catalog URL)
- http://www.junolightinggroup.com(Seller Home Page URL)
- http://www.lithonia.com(Seller Home Page URL)
- Install Instructions URL - IC & TC P5142.pdf(Install Instructions URL)
- Line Drawing URL - 10988_YZ8DVEU4PR91K7B0.gif(Line Drawing URL)
- Line Drawing URL - JR-IC2-LA1.gif(Line Drawing URL)
- Spec Sheet 1 URL - ID-SPE-v1-G1_1_0.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10988_U6NMJPSW8LBVTFGR.pdf(Spec Sheet URL)
- Spec Sheet URL - G1_1_0.PDF(Spec Sheet URL)
- Applications
- Features
| Recessed Residential; Damp Location; Wet Location w/appr Trims; IC Rated; Air-Loc |
| Medium base porcelain socket with nickel plated copper screw shell |
| Drop socket with spring to accommodate a wide variety of trim and lamp combinations |
| Housing is vertically adjustable to accommodate up to a 1 in ceiling thickness |
| Housing is fully assembled for ease of installation |
| Patented (US Patent D552, 969) Real Nail® 3 bar hangers telescoping system with pre-installed removable nail for repositioning and integral T-bar mounting feature for suspended ceilings |
| Patented (US Patent D552, 969) Real Nail® 3 bar hangers feature patented break away bars for tight joist spacing |
| Pre-wired junction box with (5) 1/2 in and (1) 3/4 in knockouts with pryout slots, (4) non-metallic sheathed cable connectors and ground wire |
| UL listed, cUL, CSA certified for through branch wiring, maximum (8) 12 AWG branch circuit conductors |
| Thermally protected against improper use of lamps or insulation |
| Energy efficient, sealed inner housing |
| When used with Air-Loc® gasket, stops infiltration and exfiltration of air, reducing heating and air cooling costs |
| Double wall construction housing can be completely covered with insulation |
| 22 ga die-formed galvanized steel mounting frame |
| Inner housing is vertically adjustable to accommodate up to a 1 in ceiling thickness |
| A19/A21/BR30/BR40/MR16/PAR16/PAR20/PAR30/PAR30L/PAR38/R20/R30 lamps |
