Intermatic®

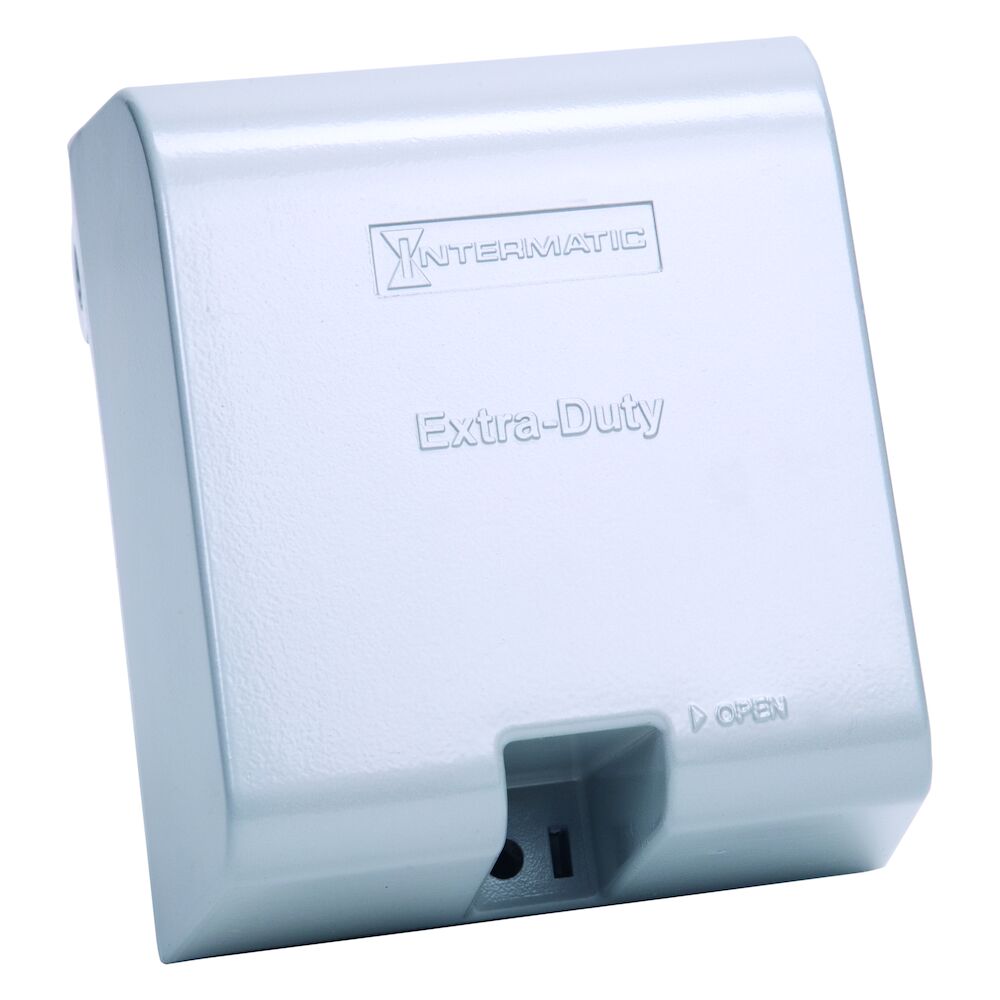

Intermatic® WP1250MXD Weatherproof While In-Use Cover, 161.9 mm L x 142.9 mm W x 117 mm D, Aluminum
Custom_Product_Images_Illustration
Intermatic®
Intermatic® WP1250MXD Weatherproof While In-Use Cover, 161.9 mm L x 142.9 mm W x 117 mm D, Aluminum
SKU777293
MFGR #WP1250MXD
Your Cost: $54.11/ea
The extra duty die-cast aluminum series while-in-use covers are easy to install and shipped with a gasket, mounting screws, base and cover assembly and inserts for a variety of applications.
The extra duty die-cast aluminum series while-in-use covers are easy to install and shipped with a gasket, mounting screws, base and cover assembly and inserts for a variety of applications.
Application Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage ARRA Compliant N Brand Intermatic® Buy American Compliant N Catalog Number WP1250MXD Color Gray Construction Heavy-Duty Die-Cast Aluminum Country of Origin IN Cover Type Receptacle Currency USD Depth 4-5/8 in EU RoHS Indicator X Gross Weight Per Pack 16.5000 lb Gross Weight per Pack Metric 0.75 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7616995190 Height 4.75 in Height [Metric] 12.0650 cm Insulation Neoprene Length 6.30 in Length [Metric] 16.0020 cm Manufacturer Intermatic Incorporated Material Die-Cast Aluminum Mounting Vertical Mounting Orientation Vertical Mounting Type Surface Number of Gangs 2 Number Of Outlet 2 Number of Outlets 2 Series WP1000MX Shape Rectangular Size 4.625 DEPTH X 6.37 HEIGHT X 5.75 WIDTH IN, 117.47 DEPTH X 161.79 HEIGHT X 133.85 WIDTH MM Standard 2014 NEC Article 406.9(B)(1), NEMA 3R, UL Listed, CSA, CEC Rule 26-702 Standards RoHS Compliant2014 NEC Article 406.9(B)(1)UL ListedCSA CertifiedCEC Rule 26-702PROP65: This product is in compliance with PROP65; it is not known to contain any chemicals associated with this regulation Stock Status NONSTOCK Temperature Rating -51 °C Type Weatherproof Receptacle Cover UNSPSC 39121304 UPC 11 07827513011 UPC 12 07827513011 Width 5.80 in Width [Metric] 14.7320 cm Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage Features: Heavy-Duty Die-Cast Aluminum Construction Ensures Long-Lasting Durability, Reinforced Hinge Pin - Designed to Exceed 40lb Hinge Hang/Stress Test, Impact Rated 12 Lb Impact Test to Ensure Cover Remains In-Tact, Lockable Hasp All Models Accept Up To 0.25" Dia Shank, Meets Requirements For Cold Impact Testing -60øF (-51øC) Six inserts provided with all models that allow each model to meet multiple installations Heavy duty die cast aluminum construction ensures long lasting durability Reinforced hinge pin - designed to exceed 40lb hinge hang/stress test 12 lb impact test to ensure cover remains in-tact Lockable hasp all models accept up to 1/4 in Dia shank Meets requirements for cold impact testing (-60 deg F) 1/8 in thick gasket with slits for mounting screws Easy to install and shipped with a gasket, mounting screws, base and cover assembly, and inserts for a variety of applications Die-cast aluminum finish Neoprene gasket Heavy Duty construction
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage |
| ARRA Compliant | N |
| Brand | Intermatic® |
| Buy American Compliant | N |
| Catalog Number | WP1250MXD |
| Color | Gray |
| Construction | Heavy-Duty Die-Cast Aluminum |
| Country of Origin | IN |
| Cover Type | Receptacle |
| Currency | USD |
| Depth | 4-5/8 in |
| EU RoHS Indicator | X |
| Gross Weight Per Pack | 16.5000 lb |
| Gross Weight per Pack Metric | 0.75 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7616995190 |
| Height | 4.75 in |
| Height [Metric] | 12.0650 cm |
| Insulation | Neoprene |
| Length | 6.30 in |
| Length [Metric] | 16.0020 cm |
| Manufacturer | Intermatic Incorporated |
| Material | Die-Cast Aluminum |
| Mounting | Vertical |
| Mounting Orientation | Vertical |
| Mounting Type | Surface |
| Number of Gangs | 2 |
| Number Of Outlet | 2 |
| Number of Outlets | 2 |
| Series | WP1000MX |
| Shape | Rectangular |
| Size | 4.625 DEPTH X 6.37 HEIGHT X 5.75 WIDTH IN, 117.47 DEPTH X 161.79 HEIGHT X 133.85 WIDTH MM |
| Standard | 2014 NEC Article 406.9(B)(1), NEMA 3R, UL Listed, CSA, CEC Rule 26-702 |
| Standards | RoHS Compliant2014 NEC Article 406.9(B)(1)UL ListedCSA CertifiedCEC Rule 26-702PROP65: This product is in compliance with PROP65; it is not known to contain any chemicals associated with this regulation |
| Stock Status | NONSTOCK |
| Temperature Rating | -51 °C |
| Type | Weatherproof Receptacle Cover |
| UNSPSC | 39121304 |
| UPC 11 | 07827513011 |
| UPC 12 | 07827513011 |
| Width | 5.80 in |
| Width [Metric] | 14.7320 cm |
| Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage |
| Features: Heavy-Duty Die-Cast Aluminum Construction Ensures Long-Lasting Durability, Reinforced Hinge Pin - Designed to Exceed 40lb Hinge Hang/Stress Test, Impact Rated 12 Lb Impact Test to Ensure Cover Remains In-Tact, Lockable Hasp All Models Accept Up To 0.25" Dia Shank, Meets Requirements For Cold Impact Testing -60øF (-51øC) |
| Six inserts provided with all models that allow each model to meet multiple installations |
| Heavy duty die cast aluminum construction ensures long lasting durability |
| Reinforced hinge pin - designed to exceed 40lb hinge hang/stress test |
| 12 lb impact test to ensure cover remains in-tact |
| Lockable hasp all models accept up to 1/4 in Dia shank |
| Meets requirements for cold impact testing (-60 deg F) |
| 1/8 in thick gasket with slits for mounting screws |
| Easy to install and shipped with a gasket, mounting screws, base and cover assembly, and inserts for a variety of applications |
| Die-cast aluminum finish |
| Neoprene gasket |
| Heavy Duty construction |
