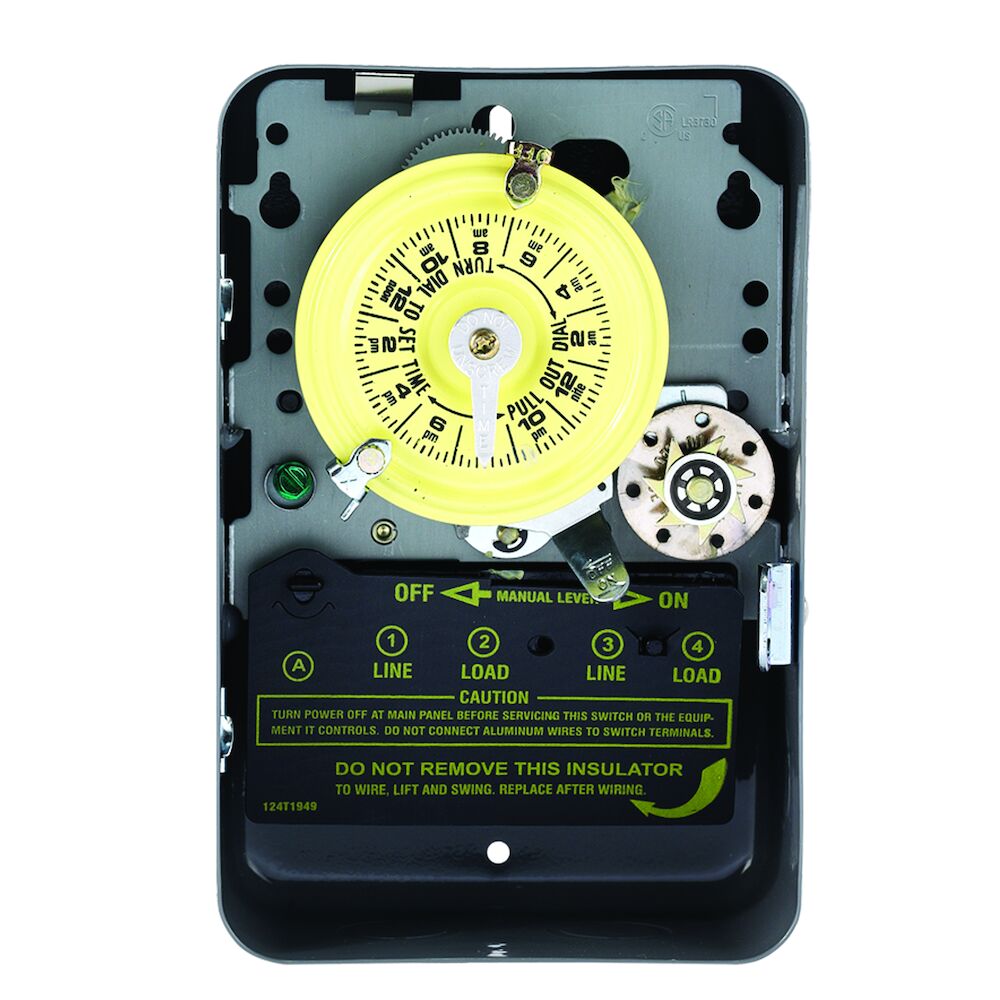

Intermatic® T173 T170 Mechanical Timer, 24 hr Time Setting, 125 VAC, 5 hp, 2NO DPST Contact Form, 2 Poles
Mechanical Timers
7779
MFG #: T173
Intermatic®
202.04000
/ ea
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series time switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with oneset of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
- Applications
- Features
Commercial, Industrial, Residential, Outdoor, HVACR |
Features: Up to 10 ON/OFF operations each day, Minimum ON/OFF times of one hour, Manual override, One ON and one OFF tripper and three day-skipper screws, 1 Year Warranty |
Controls loads up to 40 A per pole |
Direct 24-Hour control of most loads |
Up to 10 ON/OFF operations each day |
Minimum ON/OFF times of one hour |
Manual override |
One ON and one OFF tripper and three day-skipper screws included |
40 A at 120 - 480 VAC (resistive), 40 A at 120/240/277 VAC (Tungsten, Inductive) |
2 hp, 24 FLA at 120 VAC, 5 hp, 28 FLA at 240 VAC motor |
60 Hz |
3 W power |
1000 VA pilot duty |
14 - 8 AWG |
16 A, 277 VAC electronic ballast |
24 hr time duration |
