Intermatic® T1205R T100 Mechanical Timer, 240 VAC, 5 hp, 2NO DPST Contact Form, 2 Poles
Mechanical Timers
995395
MFG #: T1205R
Intermatic®
292.70000
/ ea

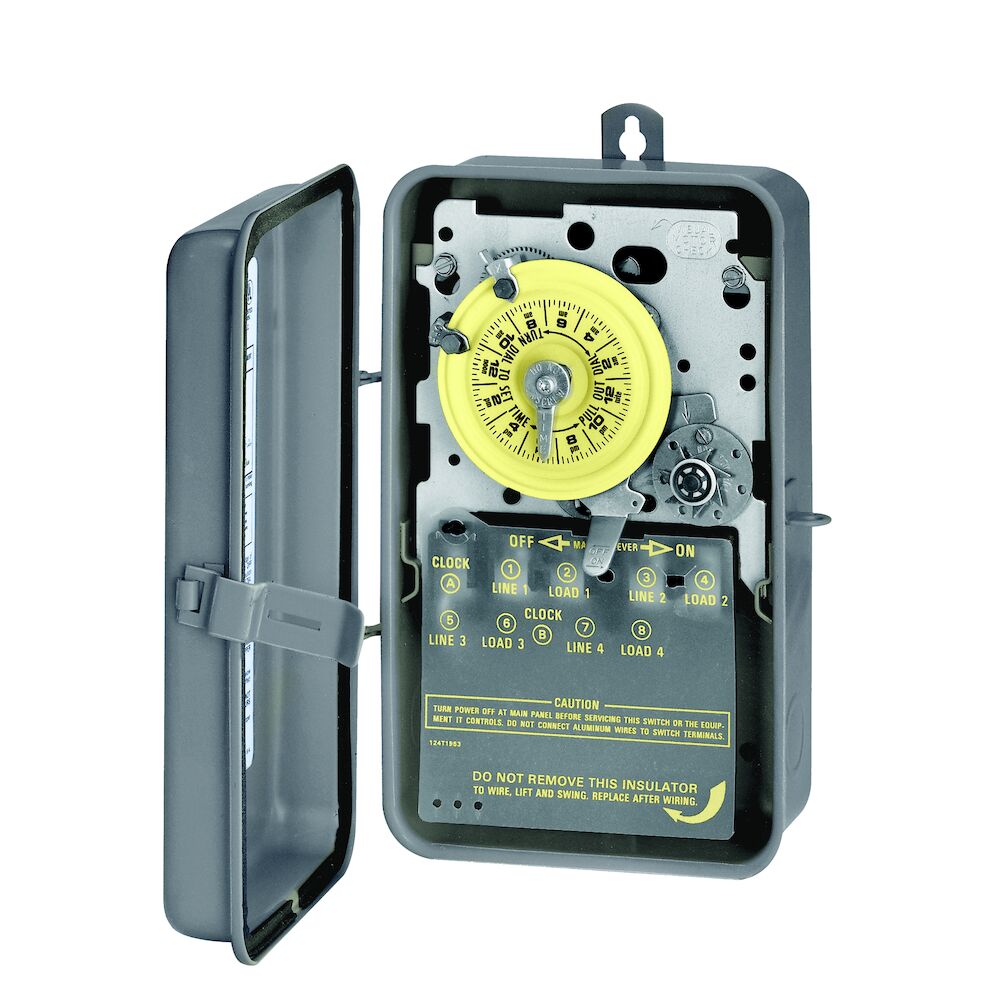

The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
- Features
| Direct 24 hr control of most loads |
| Up to 12 ON/OFF operations each day with minimum ON/OFF times of 1 hr |
| Manual override |
| 40 A at 120 to 480 VAC (resistive), 40 A (inductive), 40 A at 120 to 277 VAC (tungsten) |
| 2 hp, 24 FLA at 120 VAC, 5 hp, 28 FLA at 240 VAC motor power |
| 60 Hz frequency |
| 3 W power |
| 1000 VA pilot duty |
| 14 to 8 AWG |
| 16 A, 277 VAC electronic ballast |
| 16 A, 277 VAC electronic ballast |
