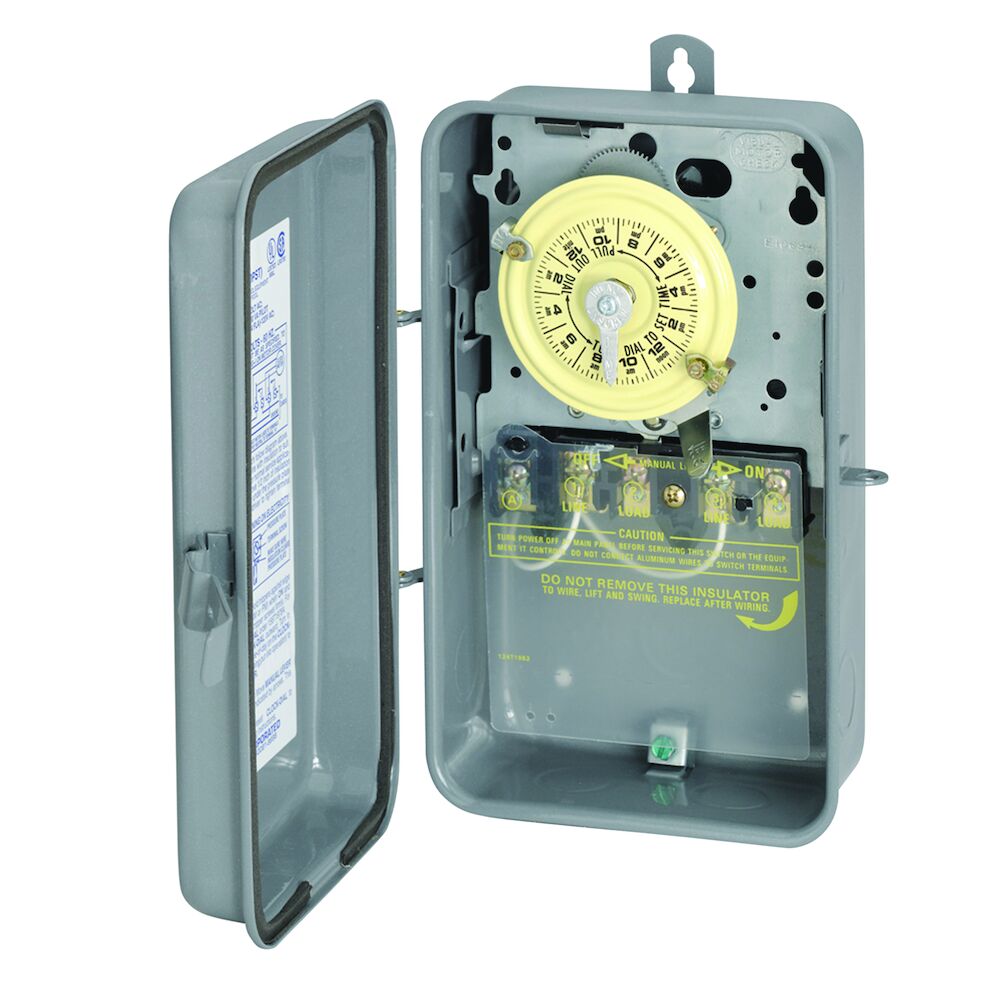

Intermatic® T104R T100 Electro-Mechanical Mechanical Timer, 24 hr Time Setting, 208/277 VAC, 5 hp, 2NO DPST Contact Form
Custom_Product_Images_Illustration
Intermatic® T104R T100 Electro-Mechanical Mechanical Timer, 24 hr Time Setting, 208/277 VAC, 5 hp, 2NO DPST Contact Form
SKU71754
MFGR #T104R
Your Cost: $152.21/ea
List: The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Action DPST Amperage Rating 40 A Application Commercial, Industrial, Residential, Outdoor, HVACR ARRA Compliant N Buy American Compliant N Catalog Number T104R Connection Teeter Type Contact Configuration 2 NO Contact Rating 40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120 - 277 (Tungsten) Country of Origin MX Currency USD Dimensions 5-1/2 in L x 4 in W x 9-3/8 in H Electrical Connections Teeter Enclosure NEMA 3R Steel Enclosure Type NEMA 3R EU RoHS Indicator X Gross Weight Per Pack 21.6000 lb Gross Weight per Pack Metric 1.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9107008000 Height 4.00 in Height [Metric] 10.1600 cm Length 11.50 in Length [Metric] 29.2100 cm Mounting Wall Mount Mounting Type Wall Number Of Poles 2 Operating Temperature -40 to +130 DEG F, -40 to +54 DEG C Series T100 Size 5-1/2 LENGTH X 4 WIDTH X 9-3/8 HEIGHT IN, 13.97 LENGTH X 10.16 WIDTH X 23.81 HEIGHT CM Standard cCSAus Certified, HVACR Standards cCSAus Certified, cULus Listed, HVACR, RoHS Compliant Temperature Rating -40 to 130 °F Timer Duration 24 hr Timing Range 0-24 hr Type Electromechanical UNSPSC 39122208 UPC 11 07827500012 UPC 12 07827500012 Wattage 3 W Width 7.10 in Width [Metric] 18.0340 cm Stock Status NONSTOCK Brand Intermatic® Manufacturer Intermatic Incorporated Contact Form 2NO DPST Horsepower 5 hp Time Setting 24 hr Voltage Rating 208 to 277 VAC Commercial, Industrial, Residential, Outdoor, HVACR Features: Provides direct 24-Hour control of most loads, 1 to 12 ON/OFF operations each day, Minimum ON/OFF times of 1 hour, Manual override, 1 Year Warranty Direct 24-hour control of most loads Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour Manual override One ON and one OFF tripper included 40 A at 120 - 480 VAC (resistive), 40 A (inductive), 40 A at 120 - 277 (tungsten) 2 hp, 24 FLA at 120 VAC, 5 hp, 28 FLA at 240 VAC motor 60 Hz 3 W power 1000 VA pilot duty 14 - 8 AWG 16 A, 277 VAC electronic ballast 24 hr time duration
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | DPST |
| Amperage Rating | 40 A |
| Application | Commercial, Industrial, Residential, Outdoor, HVACR |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | T104R |
| Connection | Teeter Type |
| Contact Configuration | 2 NO |
| Contact Rating | 40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120 - 277 (Tungsten) |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5-1/2 in L x 4 in W x 9-3/8 in H |
| Electrical Connections | Teeter |
| Enclosure | NEMA 3R Steel |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | X |
| Gross Weight Per Pack | 21.6000 lb |
| Gross Weight per Pack Metric | 1.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9107008000 |
| Height | 4.00 in |
| Height [Metric] | 10.1600 cm |
| Length | 11.50 in |
| Length [Metric] | 29.2100 cm |
| Mounting | Wall Mount |
| Mounting Type | Wall |
| Number Of Poles | 2 |
| Operating Temperature | -40 to +130 DEG F, -40 to +54 DEG C |
| Series | T100 |
| Size | 5-1/2 LENGTH X 4 WIDTH X 9-3/8 HEIGHT IN, 13.97 LENGTH X 10.16 WIDTH X 23.81 HEIGHT CM |
| Standard | cCSAus Certified, HVACR |
| Standards | cCSAus Certified, cULus Listed, HVACR, RoHS Compliant |
| Temperature Rating | -40 to 130 °F |
| Timer Duration | 24 hr |
| Timing Range | 0-24 hr |
| Type | Electromechanical |
| UNSPSC | 39122208 |
| UPC 11 | 07827500012 |
| UPC 12 | 07827500012 |
| Wattage | 3 W |
| Width | 7.10 in |
| Width [Metric] | 18.0340 cm |
| Stock Status | NONSTOCK |
| Brand | Intermatic® |
| Manufacturer | Intermatic Incorporated |
| Contact Form | 2NO DPST |
| Horsepower | 5 hp |
| Time Setting | 24 hr |
| Voltage Rating | 208 to 277 VAC |
| Commercial, Industrial, Residential, Outdoor, HVACR |
| Features: Provides direct 24-Hour control of most loads, 1 to 12 ON/OFF operations each day, Minimum ON/OFF times of 1 hour, Manual override, 1 Year Warranty |
| Direct 24-hour control of most loads |
| Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour |
| Manual override |
| One ON and one OFF tripper included |
| 40 A at 120 - 480 VAC (resistive), 40 A (inductive), 40 A at 120 - 277 (tungsten) |
| 2 hp, 24 FLA at 120 VAC, 5 hp, 28 FLA at 240 VAC motor |
| 60 Hz |
| 3 W power |
| 1000 VA pilot duty |
| 14 - 8 AWG |
| 16 A, 277 VAC electronic ballast |
| 24 hr time duration |
