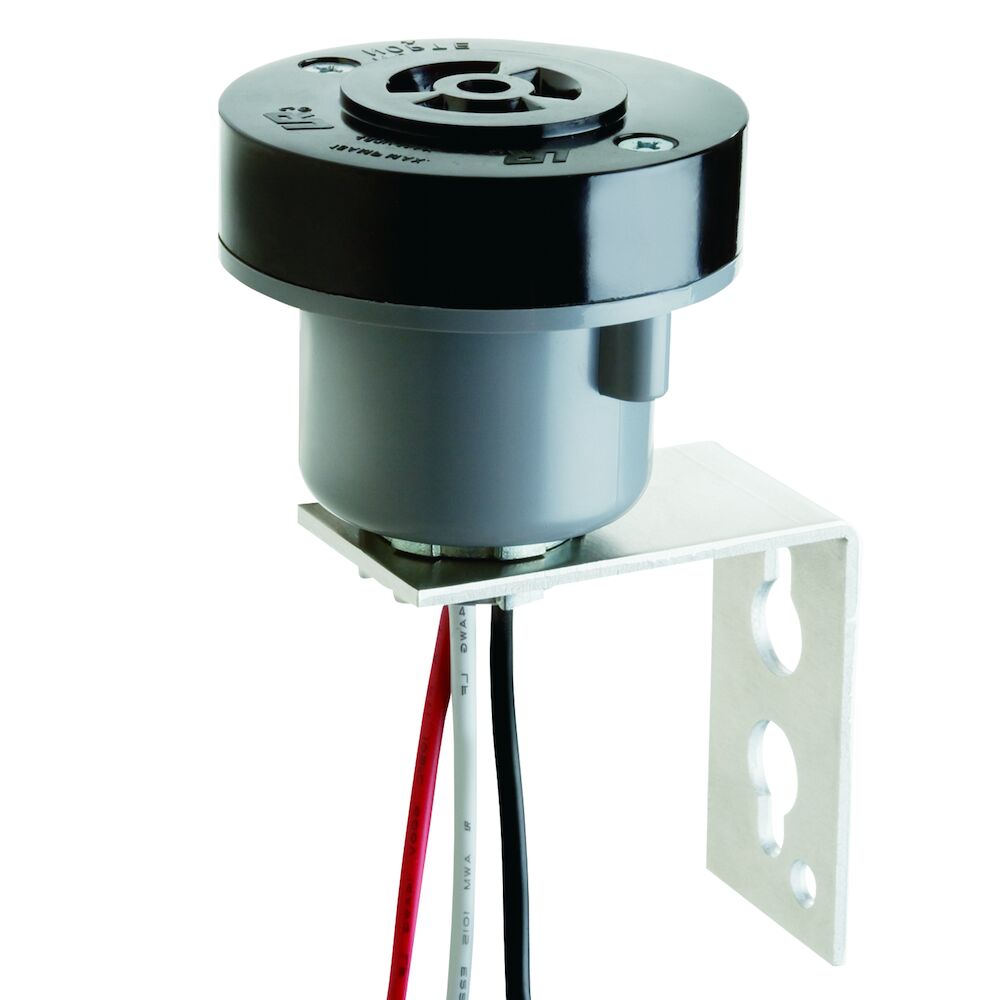

Intermatic® K122 Locking Type Receptacle With Mounting Bracket, Turn Lock Photocontrol, 480 VAC, 14 AWG, Phenolic
Custom_Product_Images_Illustration
Intermatic® K122 Locking Type Receptacle With Mounting Bracket, Turn Lock Photocontrol, 480 VAC, 14 AWG, Phenolic
SKU7809
MFGR #K122
Your Cost: $38.99/ea
The K121 and K122 NEMA receptacles provide the connector interface for Twist lock photocontrols. They can be installed in the light fixture itself (K121), or attached externally with use of mounting bracket (K122).
The K121 and K122 NEMA receptacles provide the connector interface for Twist lock photocontrols. They can be installed in the light fixture itself (K121), or attached externally with use of mounting bracket (K122).
Amperage Rating 15 A Application OUTDOOR ARRA Compliant N Brand Intermatic® Buy American Compliant N Catalog Number K122 Country of Origin CN Currency USD Dimensions 3 in Dia x 2-3/4 in H EU RoHS Indicator X Gross Weight Per Pack 0.5050 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 6.38 in Height [Metric] 16.2077 cm Lead Size 14 AWG Length 3.25 in Length [Metric] 8.2575 cm Manufacturer Intermatic Incorporated Material Phenolic Mounting Type Pole/Wall Number Of Conductors 3 Photocontrol Type Turn-Lock Standard cULus, cCSAus Certified Standards RoHS CompliantcULus ListedcCSAus CertifiedUL 772CSA C22 No. M1986ANSI C136-10PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Stock Status NORMALLY STOCKED Suitable For Use With Intermatic K1200, K4500 and LC4500 Series Locking Photocontrol Type Locking-Type Receptacle UNSPSC 32151905 UPC 11 07827550120 UPC 12 07827550120 Voltage Rating 105 to 480 VAC Width 3.25 in Width [Metric] 8.2575 cm Outdoor NEMA receptacle with 3-prong sockets Brass/phosphor bronze contacts Aluminum bracket 14 in lead wire -40 to 80 deg C operating temperature
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 15 A |
| Application | OUTDOOR |
| ARRA Compliant | N |
| Brand | Intermatic® |
| Buy American Compliant | N |
| Catalog Number | K122 |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 3 in Dia x 2-3/4 in H |
| EU RoHS Indicator | X |
| Gross Weight Per Pack | 0.5050 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 6.38 in |
| Height [Metric] | 16.2077 cm |
| Lead Size | 14 AWG |
| Length | 3.25 in |
| Length [Metric] | 8.2575 cm |
| Manufacturer | Intermatic Incorporated |
| Material | Phenolic |
| Mounting Type | Pole/Wall |
| Number Of Conductors | 3 |
| Photocontrol Type | Turn-Lock |
| Standard | cULus, cCSAus Certified |
| Standards | RoHS CompliantcULus ListedcCSAus CertifiedUL 772CSA C22 No. M1986ANSI C136-10PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Stock Status | NORMALLY STOCKED |
| Suitable For Use With | Intermatic K1200, K4500 and LC4500 Series Locking Photocontrol |
| Type | Locking-Type Receptacle |
| UNSPSC | 32151905 |
| UPC 11 | 07827550120 |
| UPC 12 | 07827550120 |
| Voltage Rating | 105 to 480 VAC |
| Width | 3.25 in |
| Width [Metric] | 8.2575 cm |
| Outdoor |
| NEMA receptacle with 3-prong sockets |
| Brass/phosphor bronze contacts |
| Aluminum bracket |
| 14 in lead wire |
| -40 to 80 deg C operating temperature |
