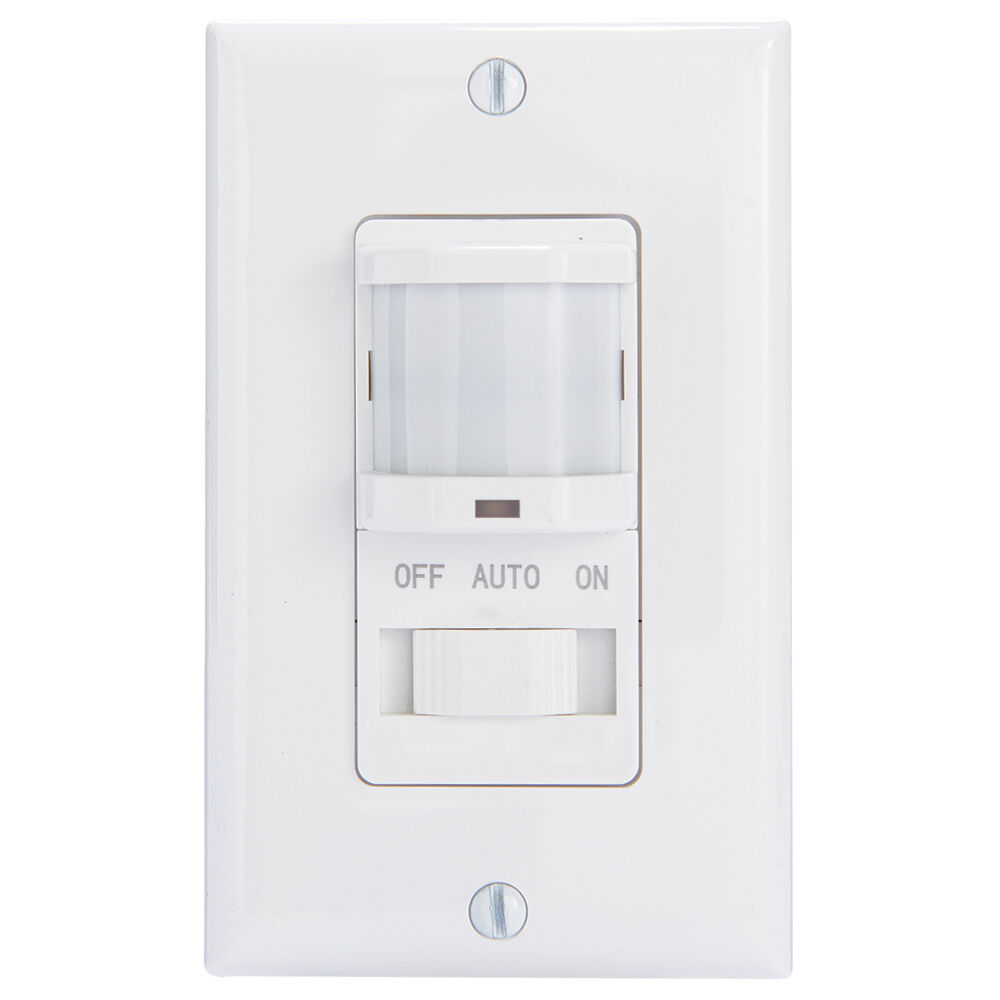

Intermatic® IOS-DSIMF-WH SLD ON/OFF150D
SKU933578
MFGR #IOS-DSIMF-WH
Your Cost: $30.13/ea
The SLD ON/OFF150DG WH INCD-MAG FLUR CTRL The IOS-DPSIMF can monitor virtually any area within a building. It incorporates passive infrared technology to detect human presence in a room. It monitors a specific area to detect heat generated naturally by people. When the heat is detected the lighti
The SLD ON/OFF150DG WH INCD-MAG FLUR CTRL The IOS-DPSIMF can monitor virtually any area within a building. It incorporates passive infrared technology to detect human presence in a room. It monitors a specific area to detect heat generated naturally by people. When the heat is detected the lighti
ARRA Compliant N Buy American Compliant N Catalog Number IOS-DSIMF-WH Color White Control Output ON/OFF Country of Origin CN Currency USD Dimensions 2.56 in H x 1.31 in W x 2.19 in D EU RoHS Indicator X Gross Weight Per Pack 17.1000 lb Gross Weight per Pack Metric 7.76 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536507000 Height 5.00 in Height [Metric] 12.7000 cm Lamp Type Incandescent/Magnetic Fluorescent Length 3.00 in Length [Metric] 7.6200 cm Load 500 WTT @ 120 VAC (Tungsten), 500 VA @ 120 VAC (Fluorescent) Mounting Wall Mount Operating Cycles 20000 Operating Temperature +32 to +131 DEG F, 0 to +55 DEG C Power Rating 500 W at 120 VAC, 500 VA at 120 VAC Response Frequency 60 Hz Sensing Range 150 DEG 980 SQ-FT Sensor PIR Standard UL/cUL Listed, cULus Listed, Title CA 20 Listed Standards UL/cUL ListedcULus ListedRoHS CompliantPROP65: it is not known to contain any chemicals associated with this regulation Supply Voltage 120 VAC Target Size 980 ft² Temperature Rating 0 to 55 °C Time Delay 15 s to 30 min Type Electronic and Magnetic UNSPSC 41111961 UPC 11 07827512529 UPC 12 07827512529 Width 2.25 in Width [Metric] 5.7150 cm Stock Status NONSTOCK Brand Intermatic® Manufacturer Intermatic Incorporated Coverage 980 ft² Mounting Type Wall Sensor Type PIR Viewing Angle 150 ° Voltage Rating 120 VAC Features: Automatic ON/OFF control, Standard decorator wall plate included, Ambient light sensor, Limited 2-year warranty Passive infrared (PIR) sensing for presence detection Adjustable PIR sensitivity Adjustable time delay 15 sec to 30 min Adjustable ambient light sensor override 150 deg, 980 sq-ft with non-obstructed views coverage No neutral' models offered for retrofit applications Fits standard decorator wall plate 500 W at 120 VAC (tungsten), 500 VA at 120 VAC (fluorescent)
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | IOS-DSIMF-WH |
| Color | White |
| Control Output | ON/OFF |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 2.56 in H x 1.31 in W x 2.19 in D |
| EU RoHS Indicator | X |
| Gross Weight Per Pack | 17.1000 lb |
| Gross Weight per Pack Metric | 7.76 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536507000 |
| Height | 5.00 in |
| Height [Metric] | 12.7000 cm |
| Lamp Type | Incandescent/Magnetic Fluorescent |
| Length | 3.00 in |
| Length [Metric] | 7.6200 cm |
| Load | 500 WTT @ 120 VAC (Tungsten), 500 VA @ 120 VAC (Fluorescent) |
| Mounting | Wall Mount |
| Operating Cycles | 20000 |
| Operating Temperature | +32 to +131 DEG F, 0 to +55 DEG C |
| Power Rating | 500 W at 120 VAC, 500 VA at 120 VAC |
| Response Frequency | 60 Hz |
| Sensing Range | 150 DEG 980 SQ-FT |
| Sensor | PIR |
| Standard | UL/cUL Listed, cULus Listed, Title CA 20 Listed |
| Standards | UL/cUL ListedcULus ListedRoHS CompliantPROP65: it is not known to contain any chemicals associated with this regulation |
| Supply Voltage | 120 VAC |
| Target Size | 980 ft² |
| Temperature Rating | 0 to 55 °C |
| Time Delay | 15 s to 30 min |
| Type | Electronic and Magnetic |
| UNSPSC | 41111961 |
| UPC 11 | 07827512529 |
| UPC 12 | 07827512529 |
| Width | 2.25 in |
| Width [Metric] | 5.7150 cm |
| Stock Status | NONSTOCK |
| Brand | Intermatic® |
| Manufacturer | Intermatic Incorporated |
| Coverage | 980 ft² |
| Mounting Type | Wall |
| Sensor Type | PIR |
| Viewing Angle | 150 ° |
| Voltage Rating | 120 VAC |
| Features: Automatic ON/OFF control, Standard decorator wall plate included, Ambient light sensor, Limited 2-year warranty |
| Passive infrared (PIR) sensing for presence detection |
| Adjustable PIR sensitivity |
| Adjustable time delay 15 sec to 30 min |
| Adjustable ambient light sensor override |
| 150 deg, 980 sq-ft with non-obstructed views coverage |
| No neutral' models offered for retrofit applications |
| Fits standard decorator wall plate |
| 500 W at 120 VAC (tungsten), 500 VA at 120 VAC (fluorescent) |
