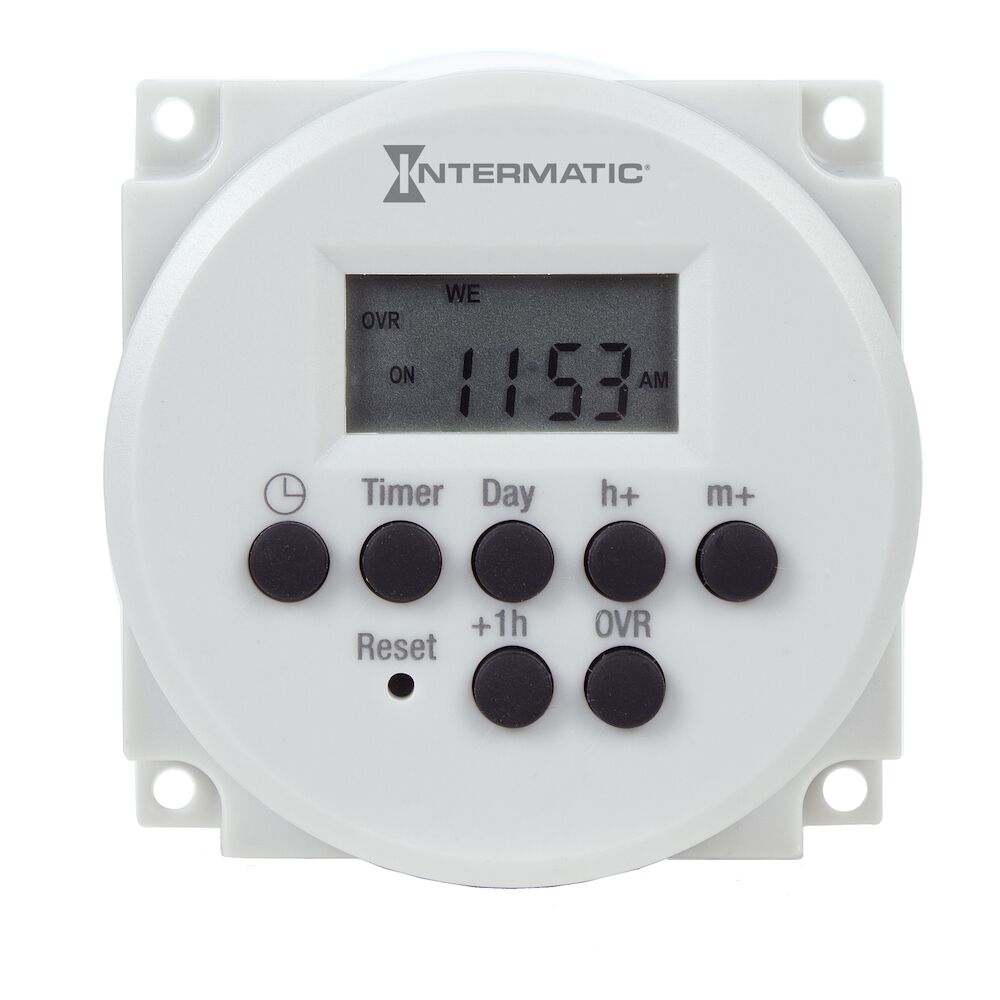

Intermatic® FM1D14-24U GRASSLIN® FM1D14 Digital Electronic Time Switch, 1 min to 24 hr/7 Days Time Setting, 24 VAC/VDC, 1/2 hp/1 hp
Custom_Product_Images_Illustration
Intermatic® FM1D14-24U GRASSLIN® FM1D14 Digital Electronic Time Switch, 1 min to 24 hr/7 Days Time Setting, 24 VAC/VDC, 1/2 hp/1 hp
SKU761866
MFGR #FM1D14-24U
Your Cost: $125.02/ea
List: The FM1D14 series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one channel time switches are programmable for 24-hour or 7-day schedules. The FM1D14 series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.
The FM1D14 series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one channel time switches are programmable for 24-hour or 7-day schedules. The FM1D14 series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.
Action 1 x SPDT Amperage Rating 12 A Application Pumps, Fans, Heaters, HVAC, Machinery, Commercial, Industrial ARRA Compliant N Battery Type Rechargeable Buy American Compliant N Catalog Number FM1D14-24U Connection 1/4 IN Quick Connect Contact Configuration 1 NO/1 NC Contact Rating 15 AMP @ 277 VAC (General Use NO), 8 AMP @ 277 VAC (Ballast NO), 4.9 AMP @ 120 VAC (Electronic Ballast NO), 15 AMP @ 277 VAC (General Use NC), 12 AMP @ 24 VDC (Resistive NC), 8 AMP @ 120 VAC (Ballast NC) Country of Origin CN Currency USD Dimensions 60 mm H x 60 mm W x 32 mm D Display Type LCD Electrical Connections Quick Connect EU RoHS Indicator Y Gross Weight Per Pack 0.2400 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Height 2.25 in Height [Metric] 5.7150 cm Length 3.25 in Length [Metric] 8.2550 cm Mounting Panel Mount Mounting Type Panel Number Of Poles 1 Operating Temperature -40 to +131 DEG F, -40 to +55 DEG C Operation Mode 24 hr/7 days Series FM1D14 Size 2.36 HEIGHT X 2.36 WIDTH X 1.26 DEPTH IN, 60 HEIGHT X 60 WIDTH X 32 DEPTH MM Standard cULus Recognized E10694, California TITLE 24 Compliant, HVACR Standards RoHS CompliantcULus ListedcCSAus CertifiedHVACR ApprovedTitle CA 20 ListedUL File No. E10694PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation Sub Brand Grasslin Temperature Rating -40 to 131 °F Timer Duration 24 HR/7 DAYS Timing Range 1 MIN - 24 HR/7 DAYS Type One Circuit Electronic UNSPSC 39122208 UPC 11 07827514279 UPC 12 07827514279 Wattage 1,000 W Width 3.25 in Width [Metric] 8.2550 cm Stock Status NONSTOCK Brand Intermatic® Manufacturer Intermatic Incorporated Contact Form 1NO-1NC SPDT Horsepower 1/2, 1 hp Time Setting 1 min to 24 hr/7 days Voltage Rating 24 VAC//VDC Pumps, Fans, Heaters, HVAC, Machinery, Commercial, Industrial Features: 14 Setpoint Programs, Easy-to-Program, Manual Override with Status Indication, Rechargeable Battery with Backup Protection up to 2500 Hours, LCD Display, 5 Preset Adjustable Block Programs, 1 Year Warranty Electronic time switches are compact electronic 24 hr/7 day modules with heavy duty relay contacts for switching low or line voltage loads 14 set point programs Easy to program Manual override with status indication Self recharging battery with backup protection up to 2500 hr 5-preset adjustable block programs 15 A at 277 VAC (general use NO), 8 A at 277 VAC (ballast NO), 4.9 A at 120 VAC (electronic ballast NO), 15 A at 277 VAC (general use NC), 12 A at 24 VDC (resistive NC), 8 A at 120 VAC (ballast NC) 50/60 Hz frequency 1 hp at 250 VAC, 1/2 hp at 120 VAC, 1/2 hp at 120/240 VAC 1000 W, 1.4 VA power consumption 1/4 in quick-connect connection They are intended for either panel, surface, flush or DIN rail mounting They are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | 1 x SPDT |
| Amperage Rating | 12 A |
| Application | Pumps, Fans, Heaters, HVAC, Machinery, Commercial, Industrial |
| ARRA Compliant | N |
| Battery Type | Rechargeable |
| Buy American Compliant | N |
| Catalog Number | FM1D14-24U |
| Connection | 1/4 IN Quick Connect |
| Contact Configuration | 1 NO/1 NC |
| Contact Rating | 15 AMP @ 277 VAC (General Use NO), 8 AMP @ 277 VAC (Ballast NO), 4.9 AMP @ 120 VAC (Electronic Ballast NO), 15 AMP @ 277 VAC (General Use NC), 12 AMP @ 24 VDC (Resistive NC), 8 AMP @ 120 VAC (Ballast NC) |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 60 mm H x 60 mm W x 32 mm D |
| Display Type | LCD |
| Electrical Connections | Quick Connect |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2400 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Height | 2.25 in |
| Height [Metric] | 5.7150 cm |
| Length | 3.25 in |
| Length [Metric] | 8.2550 cm |
| Mounting | Panel Mount |
| Mounting Type | Panel |
| Number Of Poles | 1 |
| Operating Temperature | -40 to +131 DEG F, -40 to +55 DEG C |
| Operation Mode | 24 hr/7 days |
| Series | FM1D14 |
| Size | 2.36 HEIGHT X 2.36 WIDTH X 1.26 DEPTH IN, 60 HEIGHT X 60 WIDTH X 32 DEPTH MM |
| Standard | cULus Recognized E10694, California TITLE 24 Compliant, HVACR |
| Standards | RoHS CompliantcULus ListedcCSAus CertifiedHVACR ApprovedTitle CA 20 ListedUL File No. E10694PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation |
| Sub Brand | Grasslin |
| Temperature Rating | -40 to 131 °F |
| Timer Duration | 24 HR/7 DAYS |
| Timing Range | 1 MIN - 24 HR/7 DAYS |
| Type | One Circuit Electronic |
| UNSPSC | 39122208 |
| UPC 11 | 07827514279 |
| UPC 12 | 07827514279 |
| Wattage | 1,000 W |
| Width | 3.25 in |
| Width [Metric] | 8.2550 cm |
| Stock Status | NONSTOCK |
| Brand | Intermatic® |
| Manufacturer | Intermatic Incorporated |
| Contact Form | 1NO-1NC SPDT |
| Horsepower | 1/2, 1 hp |
| Time Setting | 1 min to 24 hr/7 days |
| Voltage Rating | 24 VAC//VDC |
| Pumps, Fans, Heaters, HVAC, Machinery, Commercial, Industrial |
| Features: 14 Setpoint Programs, Easy-to-Program, Manual Override with Status Indication, Rechargeable Battery with Backup Protection up to 2500 Hours, LCD Display, 5 Preset Adjustable Block Programs, 1 Year Warranty |
| Electronic time switches are compact electronic 24 hr/7 day modules with heavy duty relay contacts for switching low or line voltage loads |
| 14 set point programs |
| Easy to program |
| Manual override with status indication |
| Self recharging battery with backup protection up to 2500 hr |
| 5-preset adjustable block programs |
| 15 A at 277 VAC (general use NO), 8 A at 277 VAC (ballast NO), 4.9 A at 120 VAC (electronic ballast NO), 15 A at 277 VAC (general use NC), 12 A at 24 VDC (resistive NC), 8 A at 120 VAC (ballast NC) |
| 50/60 Hz frequency |
| 1 hp at 250 VAC, 1/2 hp at 120 VAC, 1/2 hp at 120/240 VAC |
| 1000 W, 1.4 VA power consumption |
| 1/4 in quick-connect connection |
| They are intended for either panel, surface, flush or DIN rail mounting |
| They are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring |
