Intermatic®

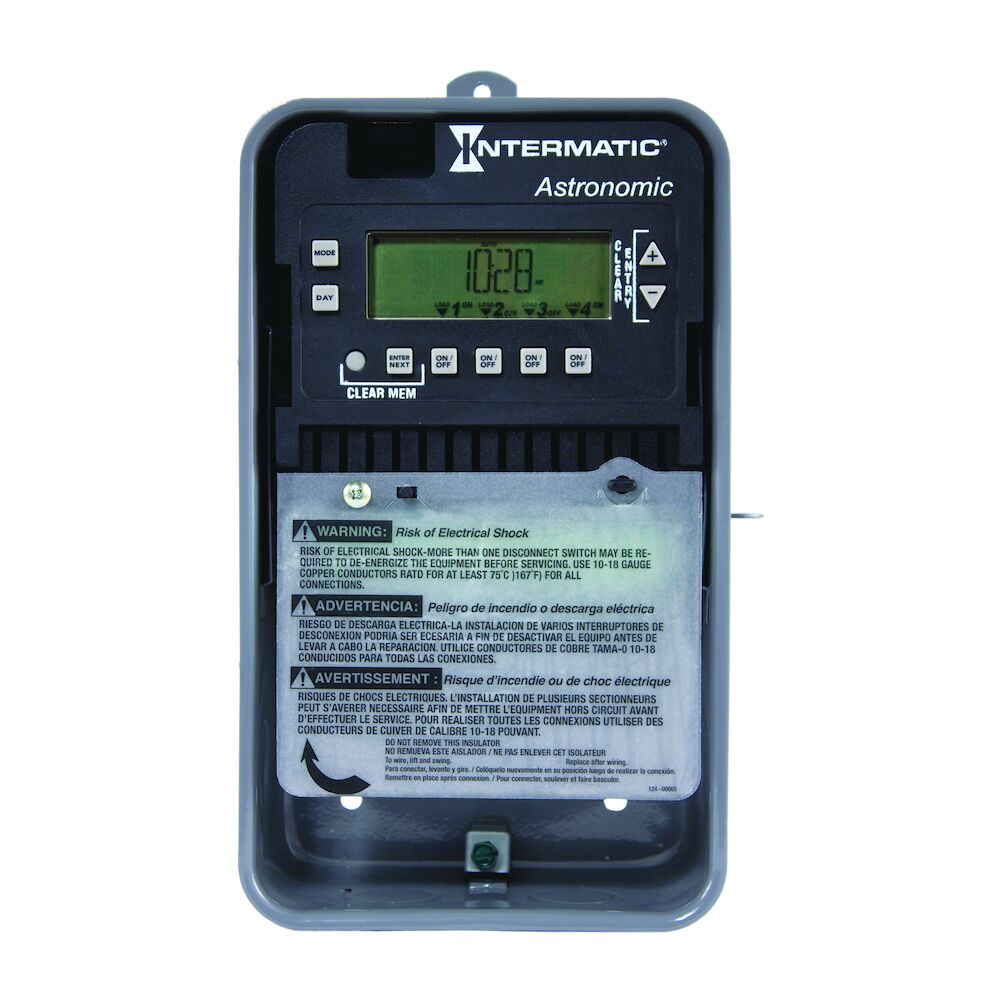

Intermatic® ET8415CR Electronic Time Switch, 1 min to 6 Days 23 hr 59 min Time Setting, 120/277 VAC, 1 hp/2 hp, 1 Pole
Custom_Product_Images_Illustration
Intermatic®
Intermatic® ET8415CR Electronic Time Switch, 1 min to 6 Days 23 hr 59 min Time Setting, 120/277 VAC, 1 hp/2 hp, 1 Pole
SKU659514
MFGR #ET8415CR
Your Cost: $668.73/ea
List: Intermatic® Electronic Time Switch, Operation Mode: 7 Days, 120/277 VAC, 30 A, 1 hp/2 hp, 1 Pole, 1NO SPST, 1 min to 6 Days 23 hr 59 min, Wire Lead, NEMA 3R, -40 to 155 deg F, Wall Mount, 257.2 mm H x 165.1 mm W x 92.1 mm D
Intermatic® Electronic Time Switch, Operation Mode: 7 Days, 120/277 VAC, 30 A, 1 hp/2 hp, 1 Pole, 1NO SPST, 1 min to 6 Days 23 hr 59 min, Wire Lead, NEMA 3R, -40 to 155 deg F, Wall Mount, 257.2 mm H x 165.1 mm W x 92.1 mm D
Action 4 x SPST Amperage Rating 30 A Application Indoor Lighting, Outdoor Lighting, Bell Ringing, Billboard Lighting, Gas Stations, Security Lighting ARRA Compliant N Brand Intermatic® Buy American Compliant N Catalog Number ET8415CR Connection Wire Lead Contact Configuration 1 NO Contact Form 1NO SPST Contact Rating 30 AMP @ 120/240 VAC (Resistive), 20 AMP @ 28 VDC (Resistive), 30 AMP @ 120/240 VAC (Inductive), 5 AMP @ 120/240 VAC (Tungsten), 20 AMP @ 120 - 277 VAC (Ballast) Country of Origin MX Currency USD Dimensions 257.2 mm H x 165.1 mm W x 92.1 mm D Electrical Connections Lead Wire Enclosure Type 3R Steel Enclosure Type NEMA 3R EU RoHS Indicator N Gross Weight Per Pack 3.3900 lb Gross Weight per Pack Metric 1.79 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9107008000 Height 10.12 in Height [Metric] 25.7048 cm Horsepower 1, 2 hp Length 6.50 in Length [Metric] 16.5100 cm Manufacturer Intermatic Incorporated Mounting Wall Mount Mounting Type Wall Number Of Poles 1 Operating Temperature -40 to +155 DEG F, -40 to +68 DEG C Standard cCSAus Certified, California TITLE 24 Compliant, Title CA 20 Listed Standards California TITLE 20 Compliant, cCSAus Certified, RoHS Compliant Stock Status NORMALLY STOCKED Temperature Rating -40 to 155 °F Time Setting 1 min to 6 Days 23 hr 59 min Timer Duration 7 days Timing Range 1 MIN - 6 DAYS 23 HR 59 MIN Type Astronomic Electronic UNSPSC 39122208 UPC 11 07827512554 UPC 12 07827512554 Voltage Rating 120 to 277 VAC Width 3.50 in Width [Metric] 8.8900 cm Indoor Lighting, Outdoor Lighting, Bell Ringing, Billboard Lighting, Gas Stations, Security Lighting Features: Automatically Adjusts Voltages between 120 and 277 VAC, 50/60Hz, 56 ON/OFF Events Per Week, 8 Astronomic Events, 100+ Hour Supercapacitor Maintains Time and Date After Power Loss, Temporary Override or Permanent Manual Override, Automatic Daylight Saving Time adjustment, 1 Year Warranty Program can be repeated on a weekly basis To-the-minute programming for accurate load control and reduced energy costs Up to 28 ON/28 OFF set points or events and 8 Astronomic events Astronomic feature provides sunset ON and sunrise OFF settings to eliminate the need for separate photo control devices Non-volatile EEPROM memory protects programming indefinitely Temporary override or permanent manual override Astronomic models enable dusk-to-dawn scheduling Sunrise/Sunset Astronomic events can be distributed throughout the days of the week Automatic Daylight Saving Time (DST) ON/OFF adjustment (factory enabled) 100 hour super capacitor maintains time and date after power loss Steel enclosure 1 hp at 120 VAC, 2 hp at 240 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | 4 x SPST |
| Amperage Rating | 30 A |
| Application | Indoor Lighting, Outdoor Lighting, Bell Ringing, Billboard Lighting, Gas Stations, Security Lighting |
| ARRA Compliant | N |
| Brand | Intermatic® |
| Buy American Compliant | N |
| Catalog Number | ET8415CR |
| Connection | Wire Lead |
| Contact Configuration | 1 NO |
| Contact Form | 1NO SPST |
| Contact Rating | 30 AMP @ 120/240 VAC (Resistive), 20 AMP @ 28 VDC (Resistive), 30 AMP @ 120/240 VAC (Inductive), 5 AMP @ 120/240 VAC (Tungsten), 20 AMP @ 120 - 277 VAC (Ballast) |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 257.2 mm H x 165.1 mm W x 92.1 mm D |
| Electrical Connections | Lead Wire |
| Enclosure | Type 3R Steel |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 3.3900 lb |
| Gross Weight per Pack Metric | 1.79 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9107008000 |
| Height | 10.12 in |
| Height [Metric] | 25.7048 cm |
| Horsepower | 1, 2 hp |
| Length | 6.50 in |
| Length [Metric] | 16.5100 cm |
| Manufacturer | Intermatic Incorporated |
| Mounting | Wall Mount |
| Mounting Type | Wall |
| Number Of Poles | 1 |
| Operating Temperature | -40 to +155 DEG F, -40 to +68 DEG C |
| Standard | cCSAus Certified, California TITLE 24 Compliant, Title CA 20 Listed |
| Standards | California TITLE 20 Compliant, cCSAus Certified, RoHS Compliant |
| Stock Status | NORMALLY STOCKED |
| Temperature Rating | -40 to 155 °F |
| Time Setting | 1 min to 6 Days 23 hr 59 min |
| Timer Duration | 7 days |
| Timing Range | 1 MIN - 6 DAYS 23 HR 59 MIN |
| Type | Astronomic Electronic |
| UNSPSC | 39122208 |
| UPC 11 | 07827512554 |
| UPC 12 | 07827512554 |
| Voltage Rating | 120 to 277 VAC |
| Width | 3.50 in |
| Width [Metric] | 8.8900 cm |
| Indoor Lighting, Outdoor Lighting, Bell Ringing, Billboard Lighting, Gas Stations, Security Lighting |
| Features: Automatically Adjusts Voltages between 120 and 277 VAC, 50/60Hz, 56 ON/OFF Events Per Week, 8 Astronomic Events, 100+ Hour Supercapacitor Maintains Time and Date After Power Loss, Temporary Override or Permanent Manual Override, Automatic Daylight Saving Time adjustment, 1 Year Warranty |
| Program can be repeated on a weekly basis |
| To-the-minute programming for accurate load control and reduced energy costs |
| Up to 28 ON/28 OFF set points or events and 8 Astronomic events |
| Astronomic feature provides sunset ON and sunrise OFF settings to eliminate the need for separate photo control devices |
| Non-volatile EEPROM memory protects programming indefinitely |
| Temporary override or permanent manual override |
| Astronomic models enable dusk-to-dawn scheduling |
| Sunrise/Sunset Astronomic events can be distributed throughout the days of the week |
| Automatic Daylight Saving Time (DST) ON/OFF adjustment (factory enabled) |
| 100 hour super capacitor maintains time and date after power loss |
| Steel enclosure |
| 1 hp at 120 VAC, 2 hp at 240 VAC |
