Intermatic®
Intermatic® EH10 EH Series Electronic Water Heater Timer, 1 min to 7 Days Time Setting, 120 VAC, 1 hp, 1NO SPST Contact Form
Custom_Product_Images_Illustration
Intermatic®

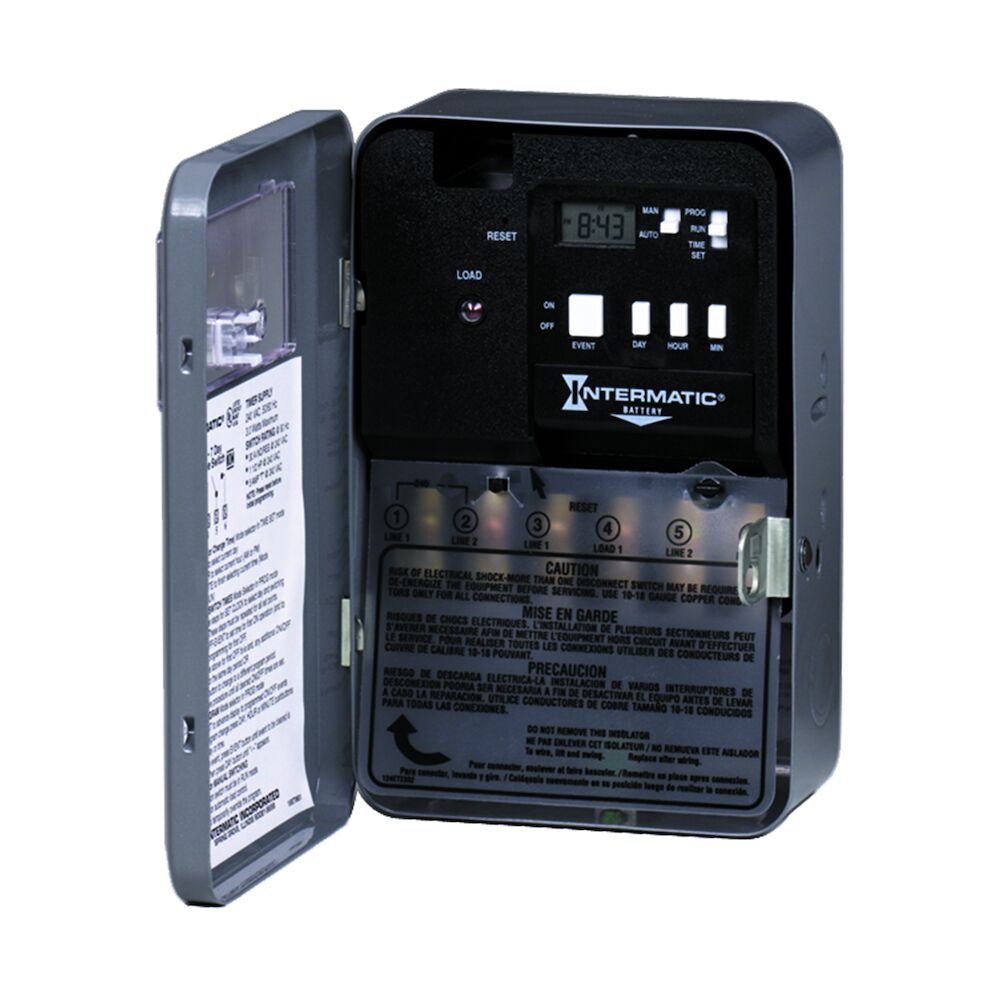

Intermatic® EH10 EH Series Electronic Water Heater Timer, 1 min to 7 Days Time Setting, 120 VAC, 1 hp, 1NO SPST Contact Form
SKU184149
MFGR #EH10
Your Cost: $188.39/ea
The EH Series Electronic Time Switches provide control for electric water heaters with to-the-minute accuracy in programming and time-keeping. The use of a water heater timer allows the customer to shift electricity use to "off-peak" time periods in an attempt to reduce utility costs. These time switches can be programmed for repeat daily scheduling, 5-day work week scheduling, weekend scheduling or individual day scheduling.
The EH Series Electronic Time Switches provide control for electric water heaters with to-the-minute accuracy in programming and time-keeping. The use of a water heater timer allows the customer to shift electricity use to "off-peak" time periods in an attempt to reduce utility costs. These time switches can be programmed for repeat daily scheduling, 5-day work week scheduling, weekend scheduling or individual day scheduling.
Action 1 x SPST h Amperage Rating 30 A Application Water Heaters, Indoor, HVACR ARRA Compliant N Buy American Compliant N Catalog Number EH10 Connection Teeter Type Contact Configuration 1 NO Contact Rating 30 AMP @ 120 VAC (Inductive), 30 AMP @ 120 VAC (Resistive), 5 AMP @ 120 VAC (Tungsten) Country of Origin CN Currency USD Enclosure NEMA 1 EU RoHS Indicator N Frequency Rating 50/60 Hz Gross Weight Per Pack 14.8500 lb Gross Weight per Pack Metric 1.12 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9107008000 Height 8.00 in Height [Metric] 20.3200 cm Length 5.30 in Length [Metric] 13.4620 cm Motor Power 1 HP 120 VAC Mounting Wall Mount Number Of Poles 1 Operating Temperature -40 to +104 DEG F, -40 to +40DEG C Power Consumption 1 W Size 7-3/4 HEIGHT X 5 WIDTH X 3 DEPTH IN, 19.7 HEIGHT X 12.7 WIDTH X 7.62 DEPTH CM Standard cCSAus Certified LR3730, HVACR Standards cCSAus File No. LR3730 Certified, HVACR, RoHS Compliant Timer Duration 7 days Timing Range 1 MIN - 7 DAYS Type Electronic UNSPSC 39122208 UPC 11 07827504289 UPC 12 07827504289 Width 3.30 in Width [Metric] 8.3820 cm Stock Status NONSTOCK Brand Intermatic® Manufacturer Intermatic Incorporated Voltage Rating 120 VAC Water Heaters, Indoor, HVACR Features: 42 ON/OFF Events Per Week, To-the-Minute Programming and Time-Keeping Accuracy, External Override Switch, LED Load Indicator, Replaceable Battery Backup, 1 Year Warranty Timers can be scheduled for operation during the lowest time-of-day rates External override switch LED load indicator Battery carryover protects time keeping and program information for a minimum of 3 years Digital/electrical mechanism To-the-minute programming and time-keeping accuracy Replaceable battery backup 5 A at 120 VAC (tungsten), 30 A at 120 VAC (resistive), 30 A at 120 VAC (inductive) 60 Hz 42 ON/OFF events per week Indoor enclosure
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | 1 x SPST h |
| Amperage Rating | 30 A |
| Application | Water Heaters, Indoor, HVACR |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EH10 |
| Connection | Teeter Type |
| Contact Configuration | 1 NO |
| Contact Rating | 30 AMP @ 120 VAC (Inductive), 30 AMP @ 120 VAC (Resistive), 5 AMP @ 120 VAC (Tungsten) |
| Country of Origin | CN |
| Currency | USD |
| Enclosure | NEMA 1 |
| EU RoHS Indicator | N |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 14.8500 lb |
| Gross Weight per Pack Metric | 1.12 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9107008000 |
| Height | 8.00 in |
| Height [Metric] | 20.3200 cm |
| Length | 5.30 in |
| Length [Metric] | 13.4620 cm |
| Motor Power | 1 HP 120 VAC |
| Mounting | Wall Mount |
| Number Of Poles | 1 |
| Operating Temperature | -40 to +104 DEG F, -40 to +40DEG C |
| Power Consumption | 1 W |
| Size | 7-3/4 HEIGHT X 5 WIDTH X 3 DEPTH IN, 19.7 HEIGHT X 12.7 WIDTH X 7.62 DEPTH CM |
| Standard | cCSAus Certified LR3730, HVACR |
| Standards | cCSAus File No. LR3730 Certified, HVACR, RoHS Compliant |
| Timer Duration | 7 days |
| Timing Range | 1 MIN - 7 DAYS |
| Type | Electronic |
| UNSPSC | 39122208 |
| UPC 11 | 07827504289 |
| UPC 12 | 07827504289 |
| Width | 3.30 in |
| Width [Metric] | 8.3820 cm |
| Stock Status | NONSTOCK |
| Brand | Intermatic® |
| Manufacturer | Intermatic Incorporated |
| Voltage Rating | 120 VAC |
| Water Heaters, Indoor, HVACR |
| Features: 42 ON/OFF Events Per Week, To-the-Minute Programming and Time-Keeping Accuracy, External Override Switch, LED Load Indicator, Replaceable Battery Backup, 1 Year Warranty |
| Timers can be scheduled for operation during the lowest time-of-day rates |
| External override switch |
| LED load indicator |
| Battery carryover protects time keeping and program information for a minimum of 3 years |
| Digital/electrical mechanism |
| To-the-minute programming and time-keeping accuracy |
| Replaceable battery backup |
| 5 A at 120 VAC (tungsten), 30 A at 120 VAC (resistive), 30 A at 120 VAC (inductive) |
| 60 Hz |
| 42 ON/OFF events per week |
| Indoor enclosure |
