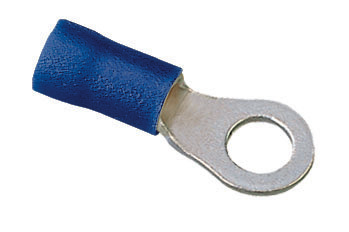

Ideal® 83-2231 1-Hole Insulated Ring Terminal, 16 to 14 AWG, #8 Stud, Brass
Custom_Product_Images_Illustration
Ideal® 83-2231 1-Hole Insulated Ring Terminal, 16 to 14 AWG, #8 Stud, Brass
SKU486178
MFGR #83-2231
The complete line of IDEAL crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.
The complete line of IDEAL crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.
ARRA Compliant N Barrel Size 0.394 in L Barrel Type Beveled/Butted Seam Buy American Compliant N Cable Size 16 - 14 AWG Catalog Number 83-2231 Color Blue Country of Origin TWN Currency USD EU RoHS Indicator Y Gross Weight Per Pack 0.1000 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Height 0.75 in Height [Metric] 19.0500 mm Insulation PVC Length 3.75 in Length [Metric] 9.5250 cm Material Composition Declaration https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF Number Of Holes 1 Overall Length 0.858 in Series Vinyl Ring Standard UL Listed, RoHS Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed Temperature Rating 75 °C Tongue Size 0.335 in W Tongue Type PVC Type Vinyl Ring UNSPSC 39121405 UPC 11 78325048982 UPC 12 783250489824 Voltage Rating 600 VAC Width 2.50 in Width [Metric] 6.3500 cm Stock Status NONSTOCK Brand IDEAL® Manufacturer Ideal Industries Conductor Size 16 to 14 AWG Material Tin Plated Brass Stud Size 0.164 in Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools Butted seam-construction prevents splitting under maximum pressure Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance Tin plated brass construction for corrosion resistance Shouldered barrel insulation quickly positions terminal for proper crimping Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support Color-coded insulation and wire range stamped on terminal for easy identification Vinyl insulated Insulated 0.307 in Hole Centre to Barrel
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | N |
| Barrel Size | 0.394 in L |
| Barrel Type | Beveled/Butted Seam |
| Buy American Compliant | N |
| Cable Size | 16 - 14 AWG |
| Catalog Number | 83-2231 |
| Color | Blue |
| Country of Origin | TWN |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1000 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Height | 0.75 in |
| Height [Metric] | 19.0500 mm |
| Insulation | PVC |
| Length | 3.75 in |
| Length [Metric] | 9.5250 cm |
| Material Composition Declaration | https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF |
| Number Of Holes | 1 |
| Overall Length | 0.858 in |
| Series | Vinyl Ring |
| Standard | UL Listed, RoHS |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed |
| Temperature Rating | 75 °C |
| Tongue Size | 0.335 in W |
| Tongue Type | PVC |
| Type | Vinyl Ring |
| UNSPSC | 39121405 |
| UPC 11 | 78325048982 |
| UPC 12 | 783250489824 |
| Voltage Rating | 600 VAC |
| Width | 2.50 in |
| Width [Metric] | 6.3500 cm |
| Stock Status | NONSTOCK |
| Brand | IDEAL® |
| Manufacturer | Ideal Industries |
| Conductor Size | 16 to 14 AWG |
| Material | Tin Plated Brass |
| Stud Size | 0.164 in |
| Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools |
| Butted seam-construction prevents splitting under maximum pressure |
| Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance |
| Tin plated brass construction for corrosion resistance |
| Shouldered barrel insulation quickly positions terminal for proper crimping |
| Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support |
| Color-coded insulation and wire range stamped on terminal for easy identification |
| Vinyl insulated |
| Insulated |
| 0.307 in Hole Centre to Barrel |
