IDEAL®

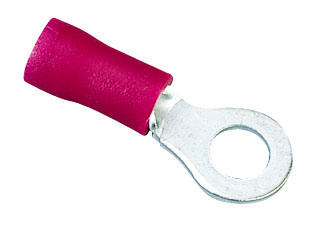

Ideal® 83-2151 Vinyl Insulated Ring Terminal, 22-18 AWG, 1/4" Stud, Box of 25
Custom_Product_Images_Illustration
IDEAL®
Ideal® 83-2151 Vinyl Insulated Ring Terminal, 22-18 AWG, 1/4" Stud, Box of 25
SKU540738
MFGR #83-2151
$/ea
The complete line of IDEAL crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.
The complete line of IDEAL crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.
ARRA Compliant N Barrel Size 0.394 in L Barrel Type Beveled/Butted Seam Buy American Compliant N Cable Size 22 - 18 AWG Catalog Number 83-2151 Color Red Country of Origin TWN Currency USD EU RoHS Indicator Y Gross Weight Per Pack 0.1000 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Height 0.75 in Height [Metric] 19.0500 mm Insulation PVC Length 3.75 in Length [Metric] 9.5250 cm Material Composition Declaration https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF Number Of Holes 1 Overall Length 1.055 in Series Vinyl Ring Standard UL Listed, RoHS Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed Temperature Rating 75 °C Tongue Size 0.457 in W Tongue Type PVC Type Vinyl Ring UNSPSC 39121405 UPC 11 78325048979 UPC 12 783250489794 Voltage Rating 600 VAC Width 2.50 in Width [Metric] 6.3500 cm Stock Status NONSTOCK Brand IDEAL® Manufacturer Ideal Industries Conductor Size 22 to 18 AWG Material Tin Plated Brass Stud Size 0.25 in Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools Butted seam-construction prevents splitting under maximum pressure Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance Tin plated brass construction for corrosion resistance Shouldered barrel insulation quickly positions terminal for proper crimping Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support Color coded insulation and wire range stamped on terminal for easy identification Vinyl insulated Insulated 0.433 in Hole Centre to Barrel
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | N |
| Barrel Size | 0.394 in L |
| Barrel Type | Beveled/Butted Seam |
| Buy American Compliant | N |
| Cable Size | 22 - 18 AWG |
| Catalog Number | 83-2151 |
| Color | Red |
| Country of Origin | TWN |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1000 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Height | 0.75 in |
| Height [Metric] | 19.0500 mm |
| Insulation | PVC |
| Length | 3.75 in |
| Length [Metric] | 9.5250 cm |
| Material Composition Declaration | https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF |
| Number Of Holes | 1 |
| Overall Length | 1.055 in |
| Series | Vinyl Ring |
| Standard | UL Listed, RoHS |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed |
| Temperature Rating | 75 °C |
| Tongue Size | 0.457 in W |
| Tongue Type | PVC |
| Type | Vinyl Ring |
| UNSPSC | 39121405 |
| UPC 11 | 78325048979 |
| UPC 12 | 783250489794 |
| Voltage Rating | 600 VAC |
| Width | 2.50 in |
| Width [Metric] | 6.3500 cm |
| Stock Status | NONSTOCK |
| Brand | IDEAL® |
| Manufacturer | Ideal Industries |
| Conductor Size | 22 to 18 AWG |
| Material | Tin Plated Brass |
| Stud Size | 0.25 in |
| Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools |
| Butted seam-construction prevents splitting under maximum pressure |
| Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance |
| Tin plated brass construction for corrosion resistance |
| Shouldered barrel insulation quickly positions terminal for proper crimping |
| Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support |
| Color coded insulation and wire range stamped on terminal for easy identification |
| Vinyl insulated |
| Insulated |
| 0.433 in Hole Centre to Barrel |
