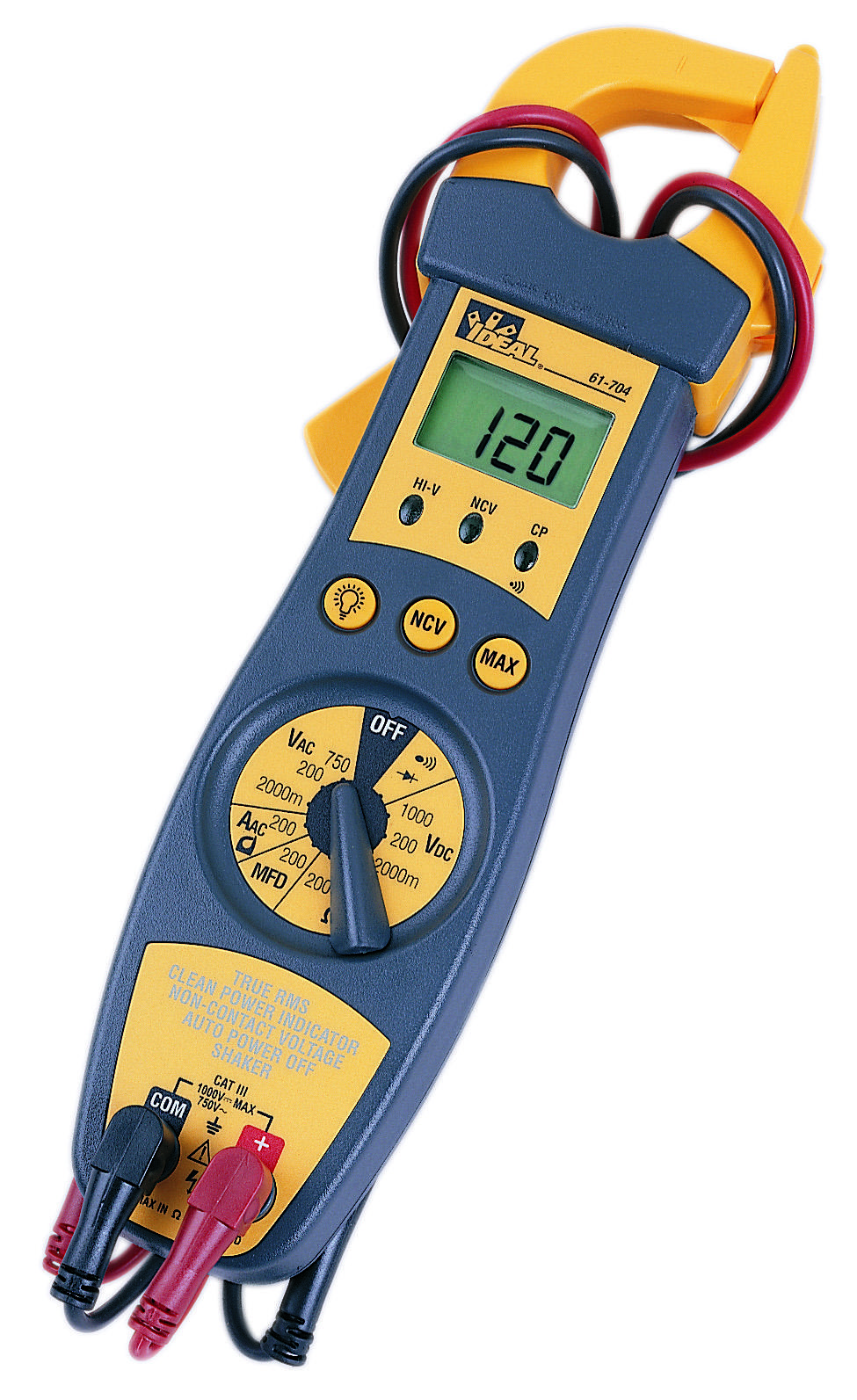

Ideal® 61-704 4-in-1 True RMS Clamp Meter With Non-Contact Voltage Tester, 200 A 750 VAC/1000 VDC, 200 kOhm, 50/60 Hz
Custom_Product_Images_Illustration
Ideal® 61-704 4-in-1 True RMS Clamp Meter With Non-Contact Voltage Tester, 200 A 750 VAC/1000 VDC, 200 kOhm, 50/60 Hz
SKU59792
MFGR #61-704
Your Cost: $314.80/ea
IDEAL® Clamp Meter, 4-in-1 True RMS, 200 A 750 VAC/1000 VDC, 200 kOhm, 50/60 Hz, 1.2 in Jaw, Counts: 2000, LCD Display, 3% Accuracy, 1.2% AC/0.5% DC Accuracy, Safety Rating: CAT III 1000 V, 9 V NEDA 1604 Battery, 32 to 122 deg F Operating, 13 in L x 6 in W x 3 in H
IDEAL® Clamp Meter, 4-in-1 True RMS, 200 A 750 VAC/1000 VDC, 200 kOhm, 50/60 Hz, 1.2 in Jaw, Counts: 2000, LCD Display, 3% Accuracy, 1.2% AC/0.5% DC Accuracy, Safety Rating: CAT III 1000 V, 9 V NEDA 1604 Battery, 32 to 122 deg F Operating, 13 in L x 6 in W x 3 in H
AC Current Accuracy 3% AC Response 150 HR Typical With Alkaline, 75 HR Typical With Carbon Zinc Battery Of 9 V NEDA 1604 ARRA Compliant C Buy American Compliant C Catalog Number 61-704 Country of Origin USA Counts 2000 Currency USD Dimensions Internal EU RoHS Indicator Y Gross Weight Per Pack 1.3100 lb Gross Weight per Pack Metric 0.59 Gross Weight UOM Metric kg Height 3.00 in Height [Metric] 7.6200 cm Length 13.00 in Length [Metric] 33.0200 cm Material Composition https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF Material Composition Declaration https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF Operating Temperature 32 to 122 °F Power Source 9 VDC NEDA 1604 Alkaline Battery Safety Rating CAT III 1000 VAC Series CAT III-1000V, UL 61010 Listed, CE, C 12966 Standards UL Listed, Safety Rating Cat III 1000 V, CAT III-1000V, UL 61010 Listed, CE Certified, C 12966 Type 4-in-1 UNSPSC 41113630 UPC 11 78325061704 UPC 12 78325061704 Voltage Accuracy 1/2% Width 6.00 in Width [Metric] 15.2400 cm Stock Status NORMALLY STOCKED Brand IDEAL® Manufacturer Ideal Industries Display Type LCD Electrical Ratings 200 A, 2000m/200/750 VAC, 2000m/200/1000 VDC Frequency Rating 50/60 Hz Jaw Capacity 1.3 in Resistance 200 kOhm Features: True Rms; Non-Contact Voltage; Backlight; CAT III - 1000V; 200A Current Capability; Audible Continuity; Diode Test; Data Hold/Max Hold; Low Battery Indicator; Overload; Protection On All Ranges; Silicone Leads; Sleep Mode ; Compact Head Design; Audible continuity, diode test, data hold/max hold, low battery indicator, overload protection on all ranges, silicone leads Audible dangerous voltage warning, sleep mode, ergonomic hourglass shape, compact head design True rms, backlight, harmonics indicator, shaker mode to verify AC voltage, cat III - 1000 V rated Performs as multimeter/clamp meter, non-contact voltage tester, voltage tester with shaker and harmonics tester 1.2 in jaw capacity, peak hold Overload protection on all ranges Non-contact voltage tester - detects voltage from 40-600 VAC without test leads Voltage tester with shaker - shakes when AC voltage is present, simulating the feel of a solenoid tester Harmonics tester - clean power LED verifies less than 5% total harmonic distortion of AC voltage 2000 m V - 200/600 VAC measuring range 1% resistance accuracy 3.0% capacitance accuracy 200.0 uF capacitance 200 Ohm/200 kOhm resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| AC Current Accuracy | 3% |
| AC Response | 150 HR Typical With Alkaline, 75 HR Typical With Carbon Zinc Battery Of 9 V NEDA 1604 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 61-704 |
| Country of Origin | USA |
| Counts | 2000 |
| Currency | USD |
| Dimensions | Internal |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1.3100 lb |
| Gross Weight per Pack Metric | 0.59 |
| Gross Weight UOM Metric | kg |
| Height | 3.00 in |
| Height [Metric] | 7.6200 cm |
| Length | 13.00 in |
| Length [Metric] | 33.0200 cm |
| Material Composition | https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF |
| Material Composition Declaration | https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF |
| Operating Temperature | 32 to 122 °F |
| Power Source | 9 VDC NEDA 1604 Alkaline Battery |
| Safety Rating | CAT III 1000 VAC |
| Series | CAT III-1000V, UL 61010 Listed, CE, C 12966 |
| Standards | UL Listed, Safety Rating Cat III 1000 V, CAT III-1000V, UL 61010 Listed, CE Certified, C 12966 |
| Type | 4-in-1 |
| UNSPSC | 41113630 |
| UPC 11 | 78325061704 |
| UPC 12 | 78325061704 |
| Voltage Accuracy | 1/2% |
| Width | 6.00 in |
| Width [Metric] | 15.2400 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | IDEAL® |
| Manufacturer | Ideal Industries |
| Display Type | LCD |
| Electrical Ratings | 200 A, 2000m/200/750 VAC, 2000m/200/1000 VDC |
| Frequency Rating | 50/60 Hz |
| Jaw Capacity | 1.3 in |
| Resistance | 200 kOhm |
| Features: True Rms; Non-Contact Voltage; Backlight; CAT III - 1000V; 200A Current Capability; Audible Continuity; Diode Test; Data Hold/Max Hold; Low Battery Indicator; Overload; Protection On All Ranges; Silicone Leads; Sleep Mode ; Compact Head Design; |
| Audible continuity, diode test, data hold/max hold, low battery indicator, overload protection on all ranges, silicone leads |
| Audible dangerous voltage warning, sleep mode, ergonomic hourglass shape, compact head design |
| True rms, backlight, harmonics indicator, shaker mode to verify AC voltage, cat III - 1000 V rated |
| Performs as multimeter/clamp meter, non-contact voltage tester, voltage tester with shaker and harmonics tester |
| 1.2 in jaw capacity, peak hold |
| Overload protection on all ranges |
| Non-contact voltage tester - detects voltage from 40-600 VAC without test leads |
| Voltage tester with shaker - shakes when AC voltage is present, simulating the feel of a solenoid tester |
| Harmonics tester - clean power LED verifies less than 5% total harmonic distortion of AC voltage |
| 2000 m V - 200/600 VAC measuring range |
| 1% resistance accuracy |
| 3.0% capacitance accuracy |
| 200.0 uF capacitance |
| 200 Ohm/200 kOhm resistance |
