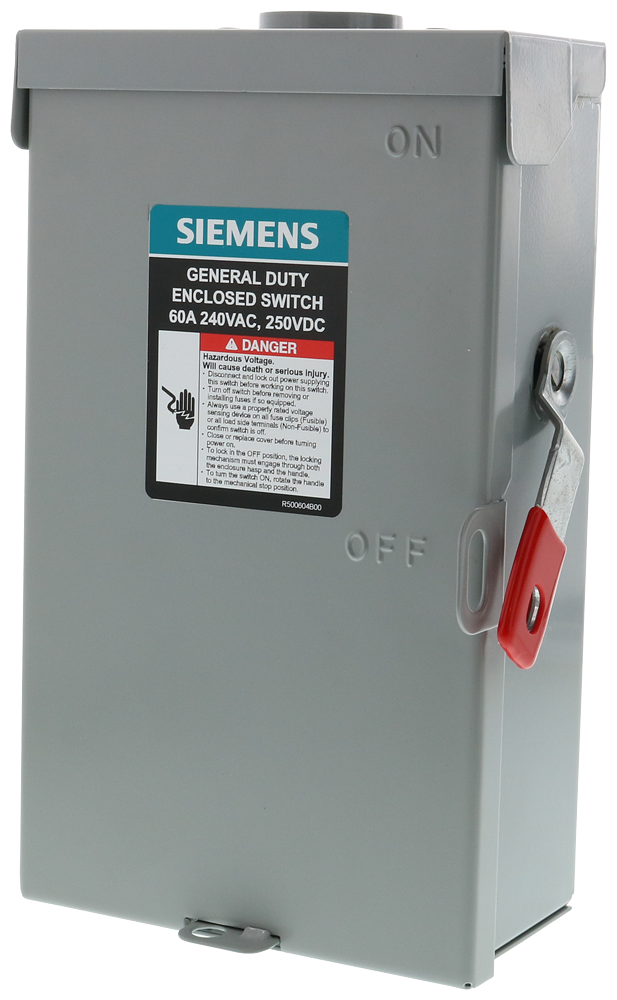

ITE GF222NRA GDSS FUS 2P3W 240V 60A NEMA 3R SERIES A
General Duty Safety Switches
1091894
MFG #: GF222NRA
Siemens
134.61000
/ ea
SIEMENS LOW VOLTAGE VBII DOUBLE-BREAK ENCLOSED SAFETY SWITCH. SERIES A 2-POLE 3-WIRE FUSED GENERAL DUTY SWITCH. RATED 240V 60A. SPECIAL FEATURES NEMA TYPE 3R OUTDOOR ENCLOSURE.
- Catalog URL - Siemens_GNF322RA_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - SIE_2D_Switch_gd_60a_f_1.dxf(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - SIE_2D_Switch_gd_60a_f_1.zip(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:GF222NRA&language=en(Spec Sheet URL)
- Spec Sheet URL - SIE_SS_Switch_60A_240A_F3R.pdf(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- User Manual URL - SIE_IS_GF222NRA_R500587K00.pdf(User Manual URL)
- Applications
- Features
| DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| Updated switch is an enhancement of legacy VBII design |
| New compact sizes for improved space efficiency |
| Visible blade, double break switching action |
| Padlocking provisions to lock cover closed or to lock switch in the OFF position |
| Rated 10 kA with Class H fuses or circuit breaker, 100 kA with Class R fuses |
| 10 hp at 240 VAC 1-phase 2-wire, 15 hp at 240 VAC 3-phase 3-wire, 10 hp at 250 VDC |
