Bussmann

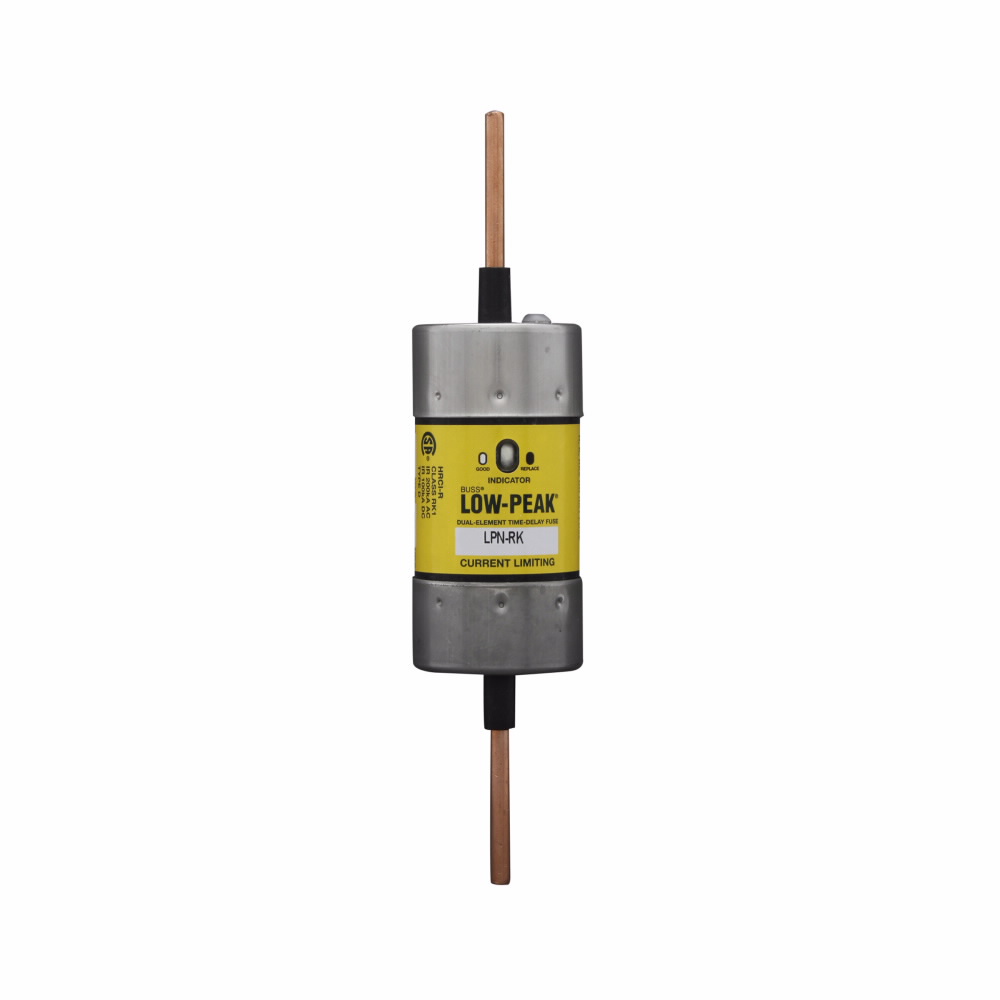

INDICATING LPN-RK-100SP
Custom_Product_Images_Illustration
Bussmann
INDICATING LPN-RK-100SP
SKU567083
MFGR #LPN-RK-100SPI
Your Cost: $124.76/ea
List: Ultimate protection Class RK1 dual element, current- limiting time-delay fuses available with optional open fuse indication. Time-delay - 10 seconds (minimum) at 500% of rated current (8 seconds for 0 - 30 A sizes).
Ultimate protection Class RK1 dual element, current- limiting time-delay fuses available with optional open fuse indication. Time-delay - 10 seconds (minimum) at 500% of rated current (8 seconds for 0 - 30 A sizes).
Alternate Catalog Number LPN-RK-100SPI Application Ind Facilities & Factories - Facility: Safety and Security Systems ARRA Compliant C Body Size 1.1 in Dia x 5.88 in L Buy American Compliant C Catalog Number LPN-RK-100SPI Connection Blade end x blade end Country of Origin MX Currency USD Element Dual EU RoHS Indicator C Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.68 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 1.10 in Height [Metric] 2.7940 cm Length 5.88 in Length [Metric] 14.9352 cm Material Melamine Mounting Type Holder Response Time 10 S at 500% Series LPN-RK Size 1.10 In Diameter X 5.88 In Length Standard CE Marked Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedGuide No. JDDZ UL File No. E4273CSA Class 1422-02CSA File No. 53787CSA C22.2CSA File No. 248.12 Sub Brand Bussmann Series Terminal Type Knife Blade Type Fuse UNSPSC 39121606 UPC 11 05171262652 UPC 12 051712626521 Width 1.10 in Width [Metric] 2.7940 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 100 A Class RK-1 Interrupt Rating 300 kAIC at 250 Vac100 kAIC at 250 Vdc Voltage Rating 250 VAC//VDC Ind Facilities & Factories - Facility: Safety and Security Systems Indicating, High in-rush current motor protection Fast short circuit protection and dual element, time delay performance provide ultimate protection Insulated endcaps reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak® fuses Consistent 2:1 ampacity ratios for all Low-Peak® fuses make selective coordination easy Time delay that permits 130% FLA sizing for back up motor protection Inventory consolidation of class RK1, RK5 and H fuses for reduced SKU investment and minimizing potential for misapplying fuse Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current limitation and selective coordination ratio of 2:1 (within Low-Peak® fuse family) prevents widespread blackouts Protects against 1-phase motor damage Proper sizing can provide "No Damage" type 2 coordinated protection for NEMA® and IEC® motor controllers
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LPN-RK-100SPI |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| ARRA Compliant | C |
| Body Size | 1.1 in Dia x 5.88 in L |
| Buy American Compliant | C |
| Catalog Number | LPN-RK-100SPI |
| Connection | Blade end x blade end |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.68 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 1.10 in |
| Height [Metric] | 2.7940 cm |
| Length | 5.88 in |
| Length [Metric] | 14.9352 cm |
| Material | Melamine |
| Mounting Type | Holder |
| Response Time | 10 S at 500% |
| Series | LPN-RK |
| Size | 1.10 In Diameter X 5.88 In Length |
| Standard | CE Marked |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedGuide No. JDDZ UL File No. E4273CSA Class 1422-02CSA File No. 53787CSA C22.2CSA File No. 248.12 |
| Sub Brand | Bussmann Series |
| Terminal Type | Knife Blade |
| Type | Fuse |
| UNSPSC | 39121606 |
| UPC 11 | 05171262652 |
| UPC 12 | 051712626521 |
| Width | 1.10 in |
| Width [Metric] | 2.7940 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 100 A |
| Class | RK-1 |
| Interrupt Rating | 300 kAIC at 250 Vac100 kAIC at 250 Vdc |
| Voltage Rating | 250 VAC//VDC |
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Indicating, High in-rush current motor protection |
| Fast short circuit protection and dual element, time delay performance provide ultimate protection |
| Insulated endcaps reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing |
| Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents |
| Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak® fuses |
| Consistent 2:1 ampacity ratios for all Low-Peak® fuses make selective coordination easy |
| Time delay that permits 130% FLA sizing for back up motor protection |
| Inventory consolidation of class RK1, RK5 and H fuses for reduced SKU investment and minimizing potential for misapplying fuse |
| Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current limitation and selective coordination ratio of 2:1 (within Low-Peak® fuse family) prevents widespread blackouts |
| Protects against 1-phase motor damage |
| Proper sizing can provide "No Damage" type 2 coordinated protection for NEMA® and IEC® motor controllers |
