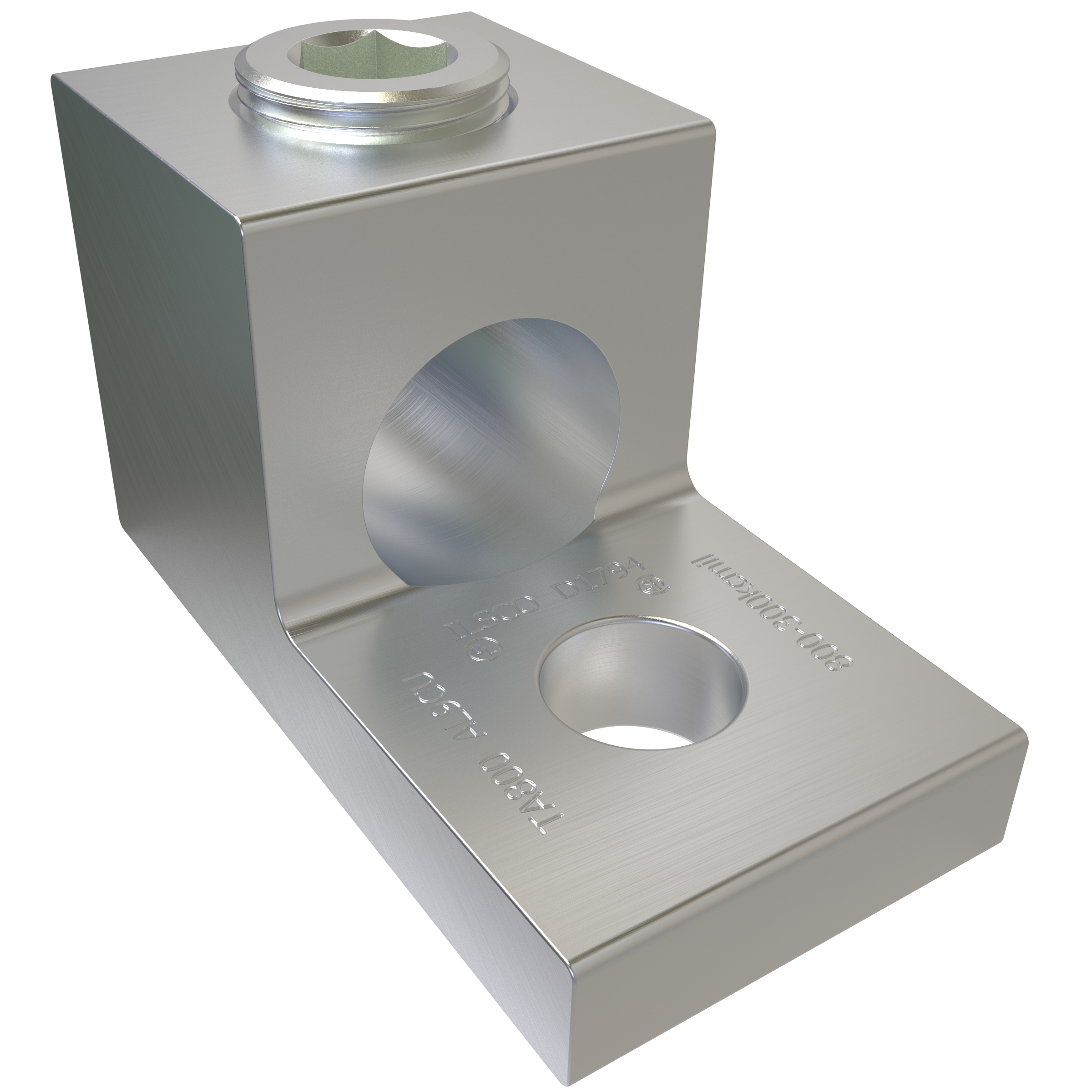

ILSCO® TA-800 TA Series Dual Rated Mechanical Terminal Lug, 300 kcmil to 800 kcmil Aluminum/Copper Conductor, 5/8 in Stud
Custom_Product_Images_Illustration
ILSCO® TA-800 TA Series Dual Rated Mechanical Terminal Lug, 300 kcmil to 800 kcmil Aluminum/Copper Conductor, 5/8 in Stud
SKU459311
MFGR #TA-800
Your Cost: $42.45/ea
ILSCO® Mechanical Terminal Lug, Dual Rated, Series: TA Series, Aluminum/Copper Conductor, 300 kcmil to 800 kcmil Conductor, 5/8 in Stud, 1 Bolt Hole, 1.75 in L x 1.75 in W x 0.5 in THK Tongue, Straight Tongue, 2000 VAC, 1/2 in Hex, 90 deg C, Aluminum, Electro-Plated Tin, 3.375 in L x 1.75 in W x 1.938 in H
ILSCO® Mechanical Terminal Lug, Dual Rated, Series: TA Series, Aluminum/Copper Conductor, 300 kcmil to 800 kcmil Conductor, 5/8 in Stud, 1 Bolt Hole, 1.75 in L x 1.75 in W x 0.5 in THK Tongue, Straight Tongue, 2000 VAC, 1/2 in Hex, 90 deg C, Aluminum, Electro-Plated Tin, 3.375 in L x 1.75 in W x 1.938 in H
Application Mechanical Lug, One Conductor ARRA Compliant C Brand ILSCO® Buy American Compliant C Catalog Number TA-800 Color Silver Conductor Range [Main|Primary] AL Solid (Primary, run, main, line):NA;CU Solid (Primary, run, main, line):NA;CU Stranded (Primary, run, main, line):800 kcmil - 300 kcmil;AL Stranded (Primary, run, main, line):800 kcmil - 300 kcmil Conductor Range [Tap|Secondary] AL Solid (Secondary, tap, load):NA;CU Solid (Secondary, tap, load):NA;AL Stranded (Secondary, tap, load):NA;CU Stranded (Secondary, tap, load):NA Connection Mechanical Country of Origin MX Currency USD EU RoHS Indicator C Finish Tin Plated Gross Weight Per Pack 0.6290 lb Gross Weight per Pack Metric 0.28 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 1.94 in Height [Metric] 4.9225 cm Insulation NA Length 3.38 in Length [Metric] 8.5725 cm Manufacturer ILSCO Material Aluminum Number Of Mounting Holes 1 Standard CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed Standards LR-29601 CSA Certified, RoHS Compliant, UL 453-G, UL 486A, UL 486B Listed Stock Status NONSTOCK Sub Brand ILSCO Temperature Rating 90 °C Type TA:1 CONDUCTOR AL/CU UNSPSC 39121408 UPC 11 78366989320 UPC 12 78366989320 Voltage Rating 35,000 V Width 1.75 in Width [Metric] 4.4450 cm Mechanical Lug, One Conductor Rated for copper or aluminum conductors;Suitable for use in circuits rated 35KV or less;Chamfered entry for ease of conductor insertion;test Chamfered wire entry provides ease of installation Suitable for use with either copper or aluminum conductors Manufactured from high strength 6061-T6 aluminum alloy Provides low contact resistance Ensures reliability for copper or aluminum conductors 1 stud of 5/8 in 3/Pack, Standard Package
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Mechanical Lug, One Conductor |
| ARRA Compliant | C |
| Brand | ILSCO® |
| Buy American Compliant | C |
| Catalog Number | TA-800 |
| Color | Silver |
| Conductor Range [Main|Primary] | AL Solid (Primary, run, main, line):NA;CU Solid (Primary, run, main, line):NA;CU Stranded (Primary, run, main, line):800 kcmil - 300 kcmil;AL Stranded (Primary, run, main, line):800 kcmil - 300 kcmil |
| Conductor Range [Tap|Secondary] | AL Solid (Secondary, tap, load):NA;CU Solid (Secondary, tap, load):NA;AL Stranded (Secondary, tap, load):NA;CU Stranded (Secondary, tap, load):NA |
| Connection | Mechanical |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Finish | Tin Plated |
| Gross Weight Per Pack | 0.6290 lb |
| Gross Weight per Pack Metric | 0.28 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 1.94 in |
| Height [Metric] | 4.9225 cm |
| Insulation | NA |
| Length | 3.38 in |
| Length [Metric] | 8.5725 cm |
| Manufacturer | ILSCO |
| Material | Aluminum |
| Number Of Mounting Holes | 1 |
| Standard | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed |
| Standards | LR-29601 CSA Certified, RoHS Compliant, UL 453-G, UL 486A, UL 486B Listed |
| Stock Status | NONSTOCK |
| Sub Brand | ILSCO |
| Temperature Rating | 90 °C |
| Type | TA:1 CONDUCTOR AL/CU |
| UNSPSC | 39121408 |
| UPC 11 | 78366989320 |
| UPC 12 | 78366989320 |
| Voltage Rating | 35,000 V |
| Width | 1.75 in |
| Width [Metric] | 4.4450 cm |
| Mechanical Lug, One Conductor |
| Rated for copper or aluminum conductors;Suitable for use in circuits rated 35KV or less;Chamfered entry for ease of conductor insertion;test |
| Chamfered wire entry provides ease of installation |
| Suitable for use with either copper or aluminum conductors |
| Manufactured from high strength 6061-T6 aluminum alloy |
| Provides low contact resistance |
| Ensures reliability for copper or aluminum conductors |
| 1 stud of 5/8 in |
| 3/Pack, Standard Package |
