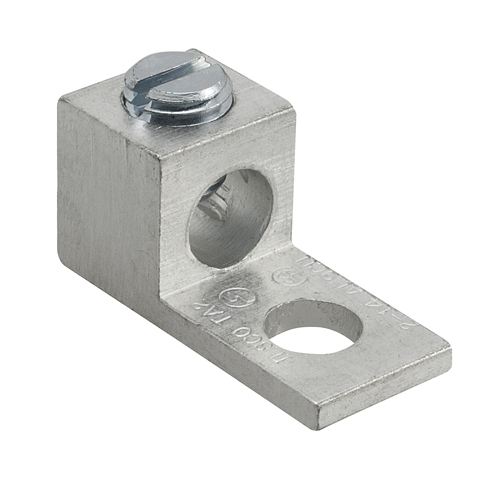

ILSCO® TA-2 TA Series Dual Rated Mechanical Terminal Lug, 14 to 2 AWG Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Holes
Mechanical Terminal Lugs
313424
MFG #: TA-2
ILSCO®
3.54000
/ ea
ILSCO® Mechanical Terminal Lug, Dual Rated, Series: TA Series, Aluminum/Copper Conductor, 14 to 2 AWG Conductor, 1/4 in Stud, 1 Bolt Hole, 0.687 in L x 0.5 in W x 0.1 in THK Tongue, Straight Tongue, 2000 VAC, Slotted Hex, 90 deg C, Aluminum, Electro-Plated Tin, 1.1563 in L x 0.5 in W x 0.55 in H
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Install Instructions URL - ILSCO_AU_0_Installation_Instructions.pdf(Install Instructions URL)
- Spec Sheet URL - 10975_NZ5QKUDCI6P79FTG.pdf(Spec Sheet URL)
- Warranty URL - ILSCO_GGC_2_Warranty.pdf(Warranty URL)
- Video - https://www.youtube.com/embed/SXIDc-w-v9U&t=6s(Video)
- Spec Sheet URL - TA.pdf(Spec Sheet URL)
- Tech Drawing URL - D0980-22.PDF(Tech Drawing URL)
- Tech Drawing URL - 10975_UA275LG984J16HYS.pdf(Tech Drawing URL)
- Features
| Rated for copper or aluminum conductors;Suitable for use in circuits rated 35KV or less;Chamfered entry for ease of conductor insertion;test |
| Chamfered wire entry provides ease of installation |
| Suitable for use with either copper or aluminum conductors |
| Manufactured from high strength 6061-T6 aluminum alloy |
| Provides low contact resistance |
| 14 to 2 AWG or (2) 14 to 10 AWG copper or (2) 12 to 10 AWG aluminum conductor size |
| 1 stud of 1/4 in |
| 2 - 14 AWG or (2) 10 - 14 AWG CU or (2) 10 - 12 AWG AL |
| 100/Pack, Standard Package |
