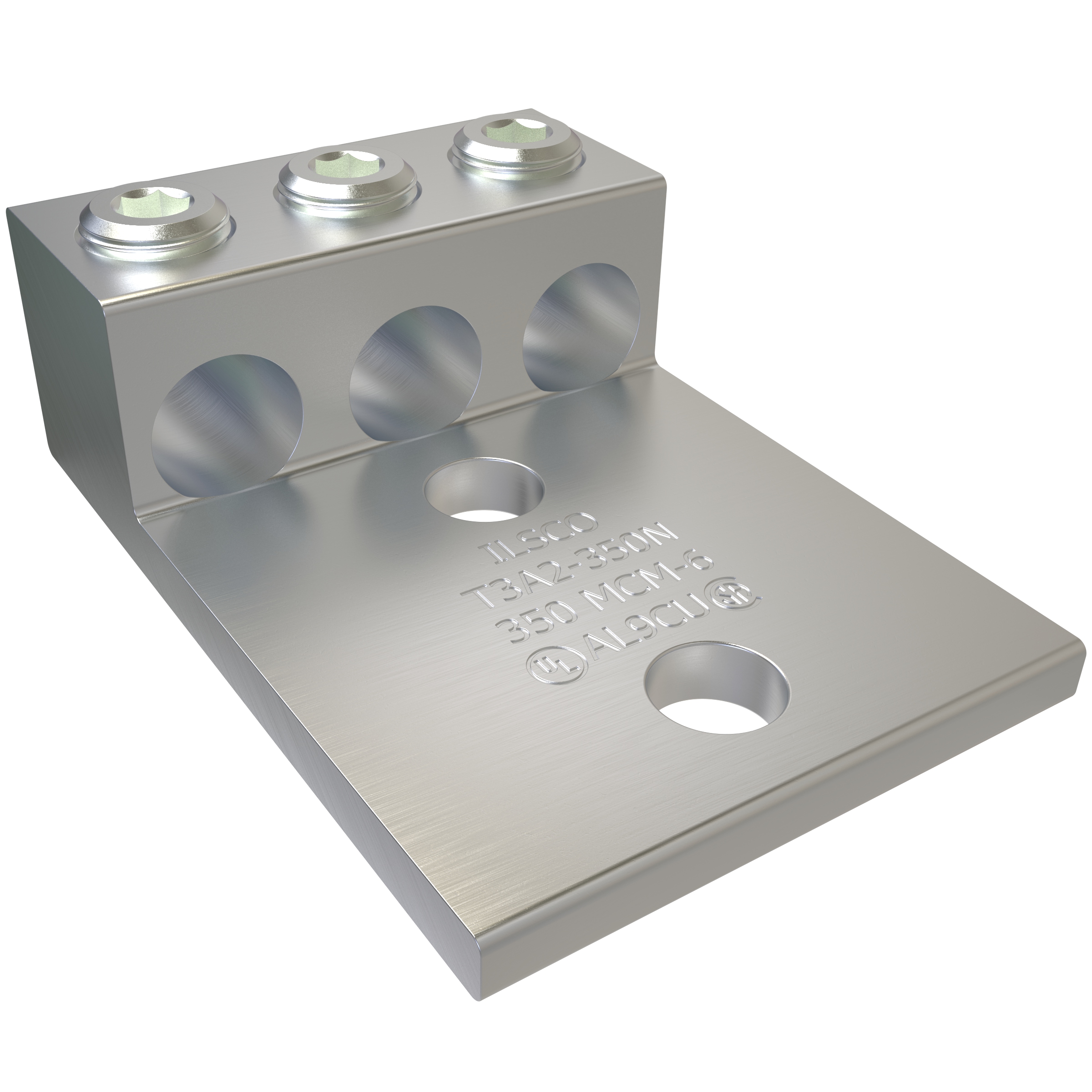

ILSCO® T3A2-350N T3A Dual Rated Mechanical Terminal Lug, 6 AWG to 350 kcmil Aluminum/Copper Conductor, 1/2 in Stud, 3 Bolt Holes
Mechanical Terminal Lugs
271658
MFG #: T3A2-350N
ILSCO®
246.77000
/ ea
ILSCO® Mechanical Terminal Lug, Dual Rated, Series: T3A, Aluminum/Copper Conductor, 6 AWG to 350 kcmil Conductor, 1/2 in Stud, 3 Bolt Holes, 3 in L x 3 in W x 0.312 in THK Tongue, Straight Tongue, 2000 VAC, 5/16 in Hex, 1-3/4 in Mounting Hole Spacing, 90 deg C, Aluminum, Electro-Plated Tin, 4.313 in L x 3 in W x 1.375 in H
- http://www.ilsco.com(Seller Home Page URL)
- Install Instructions URL - ILSCO_AU_0_Installation_Instructions.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 10975_35MW0JKTZ4Q2ARP1.pdf(Spec Sheet URL)
- Tech Drawing URL - 10975_OERFKWCA4XT7V0MN.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/SXIDc-w-v9U&t=6s(Video)
- Warranty URL - ILSCO_GGC_2_Warranty.pdf(Warranty URL)
- Features
| Rated for copper or aluminum conductors;Suitable for use in circuits rated 35KV or less;Chamfered entry for ease of conductor insertion;Must be mounted with a minimum of two bolts |
| Chamfered wire entry provides ease of installation |
| Suitable for use with either copper or aluminum conductors |
| Must be mounted with a minimum of 2 bolts |
| Manufactured from high strength 6061-T6 aluminum alloy |
| Provides low contact resistance |
| Ensures reliability for copper or aluminum conductors |
| Suitable for use with either copper or aluminum conductors |
| 2-studs |
