ILSCO®

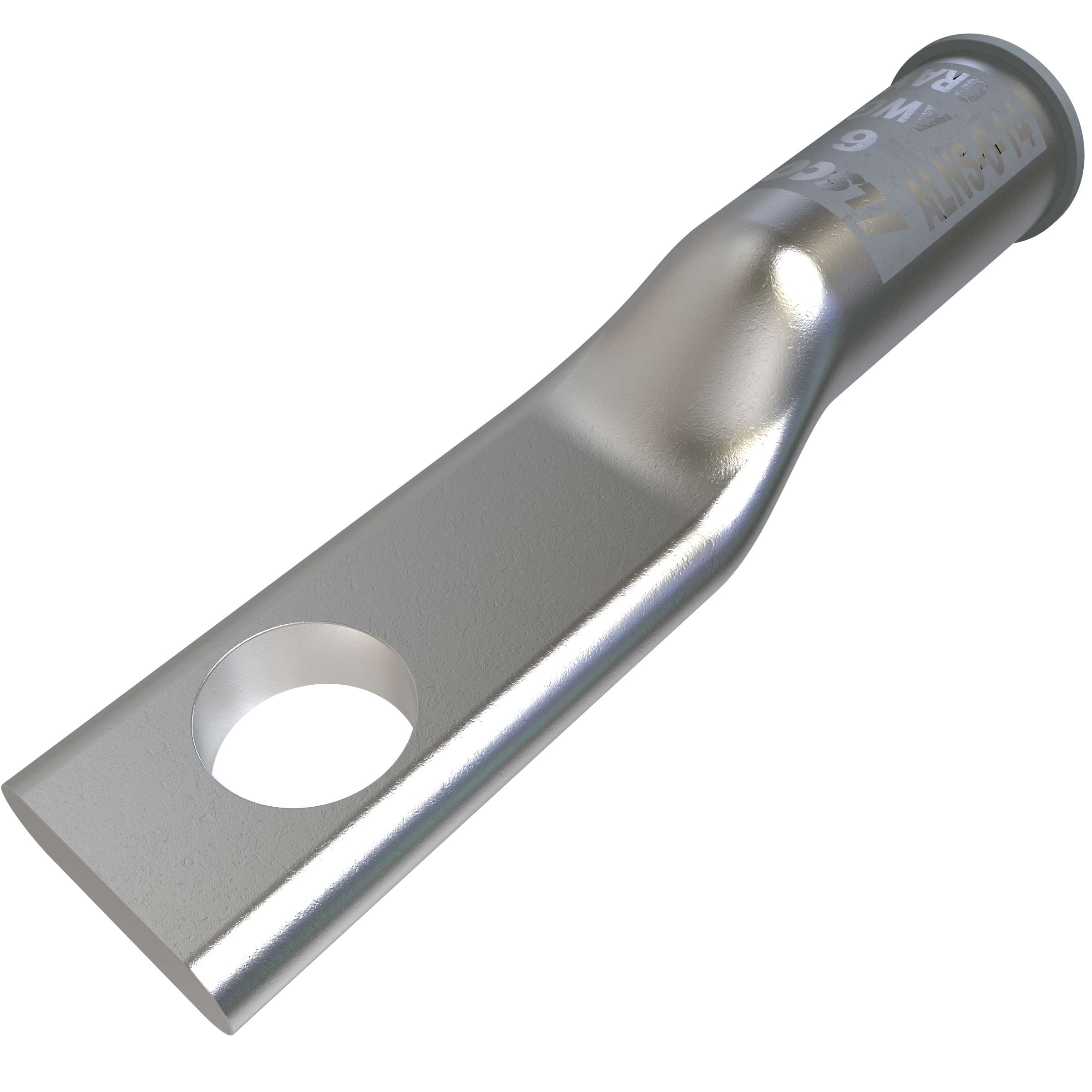

ILSCO® SURECRIMP® ALNS 1-Hole Compression Lug, 6 AWG Aluminum/Copper Conductor, 1/4 in Stud, 346, Aluminum/Copper
Custom_Product_Images_Illustration
ILSCO®
ILSCO® SURECRIMP® ALNS 1-Hole Compression Lug, 6 AWG Aluminum/Copper Conductor, 1/4 in Stud, 346, Aluminum/Copper
SKU850180
MFGR #ALNS-6-14
Your Cost: $14.12/ea
ILSCO® SURECRIMP® Compression Lug, 1-Hole, Series: ALNS, Aluminum/Copper Conductor, 6 AWG Conductor, Die Code: 346, 35 kVAC, 1/4 in Stud, 0.895 in L x 0.449 in W Tongue, 1.86 in Overall Length, Long, 0.602 in L Barrel, 0.6645 in Wire Stripe Length, 90 deg C, 0.281 in Mounting Hole, Aluminum/Copper, Gray, 0.194 in ID x 0.338 in OD
ILSCO® SURECRIMP® Compression Lug, 1-Hole, Series: ALNS, Aluminum/Copper Conductor, 6 AWG Conductor, Die Code: 346, 35 kVAC, 1/4 in Stud, 0.895 in L x 0.449 in W Tongue, 1.86 in Overall Length, Long, 0.602 in L Barrel, 0.6645 in Wire Stripe Length, 90 deg C, 0.281 in Mounting Hole, Aluminum/Copper, Gray, 0.194 in ID x 0.338 in OD
ARRA Compliant C Barrel Size 0.194 in ID x 0.338 in OD x 0.602 in L Barrel Type Chamfered/Long Buy American Compliant C Catalog Number ALNS-6-14 Color Gray Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 0.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 0.37 in Height [Metric] 0.9398 cm Length 1.86 in Length [Metric] 4.7244 cm Mounting Hole Size 9/32 in Dia Overall Length 1.86 in Series ALNS Specifications 0.6645 in L Wire Strip, Electro Tin Plated Finish Standards ARRA CompliantBuy American Act CompliantUL 486A/B File No. E6207CSA File No. LR29601ECCN EAR99PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation Temperature Rating 90 °C Tongue Size 0.895 in L x 0.449 in W Type 1-Hole UNSPSC 39121448 UPC 11 78366969044 UPC 12 78366969044 Width 0.45 in Width [Metric] 1.1405 cm Stock Status NONSTOCK Brand ILSCO® Manufacturer ILSCO Conductor Size 6 AWG Conductor Type Aluminum/Copper Die Code 346 Material Aluminum Stud Size 1/4 in Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;Pre-filled with De-Ox® oxide inhibiting compound to prevent oxides from forming;Color coded end cap to identify proper compression die and prevent foreign materials from entering prior to use;Roll marking signfies key details including correct die;Chamfered entry for ease of conductor insertion Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics Electro tin plated provides low contact resistance Chamfered entry for easy conductor insertion Color coded end cap identifies the proper compression die Roll marked barrel for easy identification and proper location of crimps Pre-filled with De-ox® prevents oxide from forming Dual rated for aluminum and copper conductor If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV Expanded wire size applicable when installed with specified dieless tools
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Barrel Size | 0.194 in ID x 0.338 in OD x 0.602 in L |
| Barrel Type | Chamfered/Long |
| Buy American Compliant | C |
| Catalog Number | ALNS-6-14 |
| Color | Gray |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 0.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 0.37 in |
| Height [Metric] | 0.9398 cm |
| Length | 1.86 in |
| Length [Metric] | 4.7244 cm |
| Mounting Hole Size | 9/32 in Dia |
| Overall Length | 1.86 in |
| Series | ALNS |
| Specifications | 0.6645 in L Wire Strip, Electro Tin Plated Finish |
| Standards | ARRA CompliantBuy American Act CompliantUL 486A/B File No. E6207CSA File No. LR29601ECCN EAR99PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation |
| Temperature Rating | 90 °C |
| Tongue Size | 0.895 in L x 0.449 in W |
| Type | 1-Hole |
| UNSPSC | 39121448 |
| UPC 11 | 78366969044 |
| UPC 12 | 78366969044 |
| Width | 0.45 in |
| Width [Metric] | 1.1405 cm |
| Stock Status | NONSTOCK |
| Brand | ILSCO® |
| Manufacturer | ILSCO |
| Conductor Size | 6 AWG |
| Conductor Type | Aluminum/Copper |
| Die Code | 346 |
| Material | Aluminum |
| Stud Size | 1/4 in |
| Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;Pre-filled with De-Ox® oxide inhibiting compound to prevent oxides from forming;Color coded end cap to identify proper compression die and prevent foreign materials from entering prior to use;Roll marking signfies key details including correct die;Chamfered entry for ease of conductor insertion |
| Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics |
| Electro tin plated provides low contact resistance |
| Chamfered entry for easy conductor insertion |
| Color coded end cap identifies the proper compression die |
| Roll marked barrel for easy identification and proper location of crimps |
| Pre-filled with De-ox® prevents oxide from forming |
| Dual rated for aluminum and copper conductor |
| If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV |
| Expanded wire size applicable when installed with specified dieless tools |
