ILSCO®

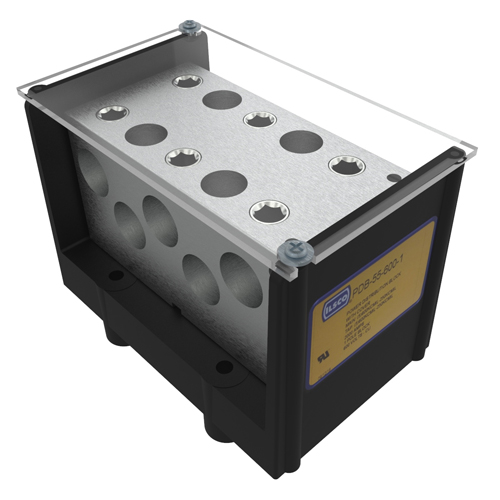

ILSCO® ClearChoice® PDB-55-600-1 Type PDB Power Distribution Block, 600 VAC, 2000 A, 1 Pole, 250 to 600 kcmil Wire
Custom_Product_Images_Illustration
ILSCO®
ILSCO® ClearChoice® PDB-55-600-1 Type PDB Power Distribution Block, 600 VAC, 2000 A, 1 Pole, 250 to 600 kcmil Wire
SKU353116
MFGR #PDB-55-600-1
Your Cost: $700.67/ea
ILSCO® ClearChoice® Power Distribution Block, Type PDB, 600 VAC, 2000 A, 1 Pole, 5 Primary Connections/Pole, 5/Pole Secondary Connection/Pole, 250 to 600 kcmil Wire, 10 kA Short Circuit Current Rating, Aluminum, Tin Plated, Black, 6-7/32 in L x 4 in W x 4-3/8 in H
ILSCO® ClearChoice® Power Distribution Block, Type PDB, 600 VAC, 2000 A, 1 Pole, 5 Primary Connections/Pole, 5/Pole Secondary Connection/Pole, 250 to 600 kcmil Wire, 10 kA Short Circuit Current Rating, Aluminum, Tin Plated, Black, 6-7/32 in L x 4 in W x 4-3/8 in H
ARRA Compliant C Buy American Compliant C Catalog Number PDB-55-600-1 Color Black Country of Origin MX Currency USD Dimensions 6-7/32 in L x 4 in W x 4-3/8 in H EU RoHS Indicator C Finish Electro-Plated Tin Gross Weight Per Pack 4.0300 lb Gross Weight per Pack Metric 1.83 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 4.01 in Height [Metric] 10.1981 cm Length 6.32 in Length [Metric] 16.0630 cm Number Of Poles 1 Primary Connections|Pole 5 Secondary Connection|Pole 5 Short Circuit Current Rating 10 kA Standards ARRA CompliantBuy American Act CompliantCSA File No. LR29601UL 1059UL 486A-B File No. E84782/E112158ECCN EAR99PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Type Type PDB Dual Rated Mechanical UNSPSC 39121408 UPC 11 78366971157 UPC 12 783669711578 Width 4.69 in Width [Metric] 11.9126 cm Stock Status NONSTOCK Brand ILSCO® Manufacturer ILSCO® Amperage Rating 2000 A Material Aluminum Alloy Voltage Rating 600 VAC Wire Size 250 to 600 kcmil Rated for copper or aluminum conductors;Lay-in primary ports allow feed through of two primary conductors with no need to break the main feeder cable;Valox insulating base provides a high degree of impact resistance with superior insulating qualities Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains Range taking - Provides tapping flexibility over a broad wire range Electro tin plated provides low contact resistance Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability Provides low contact resistance Suitable for use with either copper or aluminum conductors Ensures reliability Range taking for reduced inventories and flexibility 3/8 in hex primary, 3/8 in hex secondary 90 deg C temperature rating Block W (5) box lug primary, (5) box lug secondary 250 to 600 kcmil primary and secondary wire size Valox® insulating base UL assigned short circuit current rating Provides great flexibility in using the connector as an in-line splice or to reduce conductor size Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | PDB-55-600-1 |
| Color | Black |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6-7/32 in L x 4 in W x 4-3/8 in H |
| EU RoHS Indicator | C |
| Finish | Electro-Plated Tin |
| Gross Weight Per Pack | 4.0300 lb |
| Gross Weight per Pack Metric | 1.83 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 4.01 in |
| Height [Metric] | 10.1981 cm |
| Length | 6.32 in |
| Length [Metric] | 16.0630 cm |
| Number Of Poles | 1 |
| Primary Connections|Pole | 5 |
| Secondary Connection|Pole | 5 |
| Short Circuit Current Rating | 10 kA |
| Standards | ARRA CompliantBuy American Act CompliantCSA File No. LR29601UL 1059UL 486A-B File No. E84782/E112158ECCN EAR99PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Type | Type PDB Dual Rated Mechanical |
| UNSPSC | 39121408 |
| UPC 11 | 78366971157 |
| UPC 12 | 783669711578 |
| Width | 4.69 in |
| Width [Metric] | 11.9126 cm |
| Stock Status | NONSTOCK |
| Brand | ILSCO® |
| Manufacturer | ILSCO® |
| Amperage Rating | 2000 A |
| Material | Aluminum Alloy |
| Voltage Rating | 600 VAC |
| Wire Size | 250 to 600 kcmil |
| Rated for copper or aluminum conductors;Lay-in primary ports allow feed through of two primary conductors with no need to break the main feeder cable;Valox insulating base provides a high degree of impact resistance with superior insulating qualities |
| Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains |
| Range taking - Provides tapping flexibility over a broad wire range |
| Electro tin plated provides low contact resistance |
| Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only |
| Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors |
| UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability |
| Provides low contact resistance |
| Suitable for use with either copper or aluminum conductors |
| Ensures reliability |
| Range taking for reduced inventories and flexibility |
| 3/8 in hex primary, 3/8 in hex secondary |
| 90 deg C temperature rating |
| Block W |
| (5) box lug primary, (5) box lug secondary |
| 250 to 600 kcmil primary and secondary wire size |
| Valox® insulating base |
| UL assigned short circuit current rating |
| Provides great flexibility in using the connector as an in-line splice or to reduce conductor size |
| Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1 |
