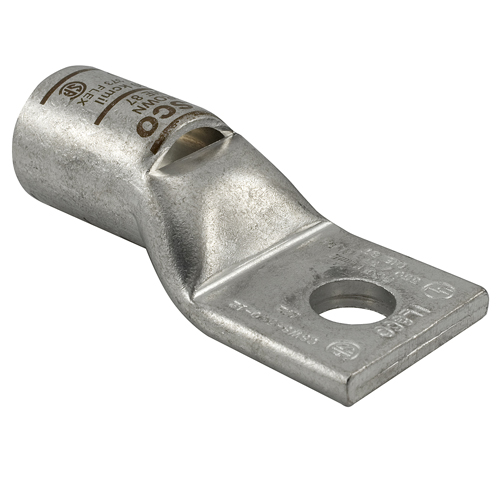

ILSCO® CSWS-6-10 SureCrimp® CSWS 1-Hole Compression Lug, 6 AWG, #10 Stud, I-24, Copper
Custom_Product_Images_Illustration
ILSCO® CSWS-6-10 SureCrimp® CSWS 1-Hole Compression Lug, 6 AWG, #10 Stud, I-24, Copper
SKU578481
MFGR #CSWS-6-10
Your Cost: $5.42/ea
ILSCO® SureCrimp® Compression Lug, 1-Hole, Series: CSWS, 6 AWG Conductor, Die Code: I-24, 600 VAC, #10 Stud, 0.562 in L x 0.44 in W Tongue, 1.257 in Overall Length, Short/Standard, 1/2 in Barrel, 90 deg C, Copper, Blue, 0.225 in ID x 0.32 in OD
ILSCO® SureCrimp® Compression Lug, 1-Hole, Series: CSWS, 6 AWG Conductor, Die Code: I-24, 600 VAC, #10 Stud, 0.562 in L x 0.44 in W Tongue, 1.257 in Overall Length, Short/Standard, 1/2 in Barrel, 90 deg C, Copper, Blue, 0.225 in ID x 0.32 in OD
ARRA Compliant C Barrel Size 0.225 in ID x 0.312 in OD x 0.5 in L Barrel Type Chamfered/Short/Standard Buy American Compliant C Catalog Number CSWS-6-10 Color Blue Country of Origin IN Currency USD Dimensions 0.411 in W EU RoHS Indicator C Gross Weight Per Pack 0.0130 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 0.30 in Height [Metric] 0.7493 cm Length 1.26 in Length [Metric] 3.1928 cm Mounting Hole Size 0.219 in Overall Length 1.257 in Series CSWS Specifications 0.562 in L Wire Strip Standards ARRA CompliantBuy American Act CompliantNEBS Level 3UL 467UL 486A-486B File No. E6207CSA File No. LR29601ECCN EAR99PROP65: This product is in compliance with PROP65, it is not known to contain any chemicals associated with this regulation Temperature Rating 90 °C Tongue Size 0.562 in L x 0.411 in W x 0.092 in THK Type 1-Hole UNSPSC 39121448 UPC 11 78366962893 UPC 12 78366962893 Voltage Rating 600 VAC to 35 kV VAC Width 0.41 in Width [Metric] 1.0437 cm Stock Status NONSTOCK Brand ILSCO® Manufacturer ILSCO Conductor Size 6 AWG Conductor Type Flex Copper Die Code ILD-24 Material Tin Plated Copper Stud Size #10 Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die Manufactured from high strength seamless copper tubing, electro-tin plated Color coded Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used Offers maximum conductivity and excellent crimping characteristics Provides low contact resistance For easy conductor insertion Identifies the proper compression die Application versatility Reduces inventory requirements For grounding and bonding applications Chamfered barrel for visual inspection of proper cable insertion #6 flexible, #6 solid alternate conductor size Electro-tin plated Standard barrel length with chamfered entry
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Barrel Size | 0.225 in ID x 0.312 in OD x 0.5 in L |
| Barrel Type | Chamfered/Short/Standard |
| Buy American Compliant | C |
| Catalog Number | CSWS-6-10 |
| Color | Blue |
| Country of Origin | IN |
| Currency | USD |
| Dimensions | 0.411 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0130 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 0.30 in |
| Height [Metric] | 0.7493 cm |
| Length | 1.26 in |
| Length [Metric] | 3.1928 cm |
| Mounting Hole Size | 0.219 in |
| Overall Length | 1.257 in |
| Series | CSWS |
| Specifications | 0.562 in L Wire Strip |
| Standards | ARRA CompliantBuy American Act CompliantNEBS Level 3UL 467UL 486A-486B File No. E6207CSA File No. LR29601ECCN EAR99PROP65: This product is in compliance with PROP65, it is not known to contain any chemicals associated with this regulation |
| Temperature Rating | 90 °C |
| Tongue Size | 0.562 in L x 0.411 in W x 0.092 in THK |
| Type | 1-Hole |
| UNSPSC | 39121448 |
| UPC 11 | 78366962893 |
| UPC 12 | 78366962893 |
| Voltage Rating | 600 VAC to 35 kV VAC |
| Width | 0.41 in |
| Width [Metric] | 1.0437 cm |
| Stock Status | NONSTOCK |
| Brand | ILSCO® |
| Manufacturer | ILSCO |
| Conductor Size | 6 AWG |
| Conductor Type | Flex Copper |
| Die Code | ILD-24 |
| Material | Tin Plated Copper |
| Stud Size | #10 |
| Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die |
| Manufactured from high strength seamless copper tubing, electro-tin plated |
| Color coded |
| Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used |
| Offers maximum conductivity and excellent crimping characteristics |
| Provides low contact resistance |
| For easy conductor insertion |
| Identifies the proper compression die |
| Application versatility |
| Reduces inventory requirements |
| For grounding and bonding applications |
| Chamfered barrel for visual inspection of proper cable insertion |
| #6 flexible, #6 solid alternate conductor size |
| Electro-tin plated |
| Standard barrel length with chamfered entry |
