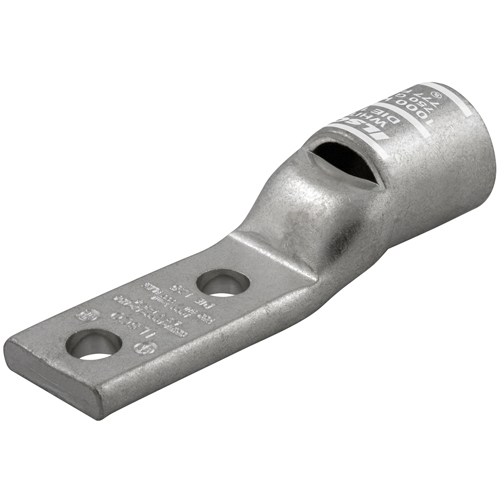

ILSCO® CSWN-1/0-14 SureCrimp® CSWN Compression Lug With Sight Hole, 1/0 AWG, 1/4 in Stud, I-42, Copper
Custom_Product_Images_Illustration
ILSCO® CSWN-1/0-14 SureCrimp® CSWN Compression Lug With Sight Hole, 1/0 AWG, 1/4 in Stud, I-42, Copper
SKU800401
MFGR #CSWN-1/0-14
Your Cost: $43.22/ea
List: ILSCO® SureCrimp® Compression Lug, Series: CSWN, 1/0 AWG Conductor, Die Code: I-42, 600 VAC, 1/4 in Stud, Narrow Tongue, 7/8 in L x 1/2 in W x 1/8 in THK Tongue, 1.981 in Overall Length, Short/Standard, 3/4 in L Barrel, 90 deg C, 0.281 in Mounting Hole, Copper, Pink, 0.39 in ID x 0.515 in OD
ILSCO® SureCrimp® Compression Lug, Series: CSWN, 1/0 AWG Conductor, Die Code: I-42, 600 VAC, 1/4 in Stud, Narrow Tongue, 7/8 in L x 1/2 in W x 1/8 in THK Tongue, 1.981 in Overall Length, Short/Standard, 3/4 in L Barrel, 90 deg C, 0.281 in Mounting Hole, Copper, Pink, 0.39 in ID x 0.515 in OD
ARRA Compliant C Barrel Size 0.39 in ID x 0.515 in OD x 0.75 in L Barrel Type Chamfered/Short/Standard Buy American Compliant C Catalog Number CSWN-1/0-14 Color Pink Country of Origin US Currency USD Dimensions 1/2 in W EU RoHS Indicator C Gross Weight Per Pack 0.0500 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Mounting Hole Size 0.281 in Overall Length 1.981 in Series CSWN Specifications 13/16 in L Wire Strip Standards ARRA CompliantBuy American Act/RoHS CompliantNEBS Level 3CSA LR-29601UL 486A-B/467/E6207PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation Temperature Rating 90 °C Tongue Size 7/8 in L x 1/2 in W x 1/8 in THK Tongue Type Narrow Type 1-Hole UNSPSC 39121448 UPC 11 78366968537 UPC 12 78366968537 Voltage Rating 600 VAC Stock Status NONSTOCK Brand ILSCO® Manufacturer ILSCO Conductor Size 1/0 AWG Conductor Type Copper Die Code I-42 Stud Size 1/4 in Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die Electro tin plated Manufactured from high strength seamless copper tubing Narrow tang width for limited space applications Chamfered entry Color coded Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used Offers maximum conductivity and excellent crimping characteristics Provides low contact resistance For easy conductor insertion Identifies the proper compression die Application versatility Reduces inventory requirements Alternate conductor size of NO 1 Flex Expanded conductor size of 1/0-6 AWG 0.8125 in L Strip
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Barrel Size | 0.39 in ID x 0.515 in OD x 0.75 in L |
| Barrel Type | Chamfered/Short/Standard |
| Buy American Compliant | C |
| Catalog Number | CSWN-1/0-14 |
| Color | Pink |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 1/2 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0500 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Mounting Hole Size | 0.281 in |
| Overall Length | 1.981 in |
| Series | CSWN |
| Specifications | 13/16 in L Wire Strip |
| Standards | ARRA CompliantBuy American Act/RoHS CompliantNEBS Level 3CSA LR-29601UL 486A-B/467/E6207PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation |
| Temperature Rating | 90 °C |
| Tongue Size | 7/8 in L x 1/2 in W x 1/8 in THK |
| Tongue Type | Narrow |
| Type | 1-Hole |
| UNSPSC | 39121448 |
| UPC 11 | 78366968537 |
| UPC 12 | 78366968537 |
| Voltage Rating | 600 VAC |
| Stock Status | NONSTOCK |
| Brand | ILSCO® |
| Manufacturer | ILSCO |
| Conductor Size | 1/0 AWG |
| Conductor Type | Copper |
| Die Code | I-42 |
| Stud Size | 1/4 in |
| Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die |
| Electro tin plated |
| Manufactured from high strength seamless copper tubing |
| Narrow tang width for limited space applications |
| Chamfered entry |
| Color coded |
| Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used |
| Offers maximum conductivity and excellent crimping characteristics |
| Provides low contact resistance |
| For easy conductor insertion |
| Identifies the proper compression die |
| Application versatility |
| Reduces inventory requirements |
| Alternate conductor size of NO 1 Flex |
| Expanded conductor size of 1/0-6 AWG |
| 0.8125 in L Strip |
