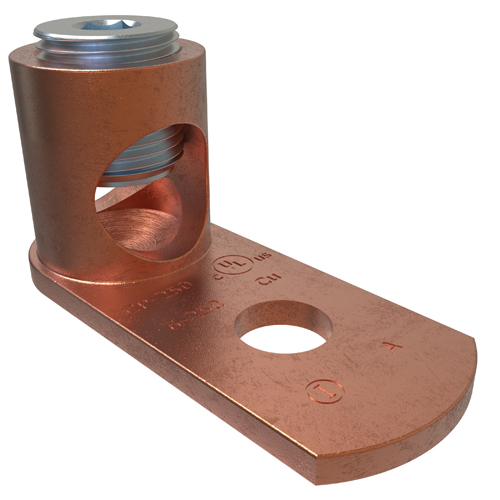

ILSCO® CP-250 CP Series Compact Post Connector, 6 AWG to 250 kcmil Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Copper
Mechanical Terminal Lugs
93375
MFG #: CP-250
ILSCO®
37.22000
/ ea
ILSCO® Post Connector, Compact, Series: CP Series, Copper Conductor, 6 AWG to 250 kcmil Conductor, 3/8 in Stud, 1 Bolt Hole, 1.107 in L x 0.125 in THK Tongue, Straight Tongue, 2000 VAC, 1/4 in Hex, 90 deg C, Copper, 1.9688 in L x 0.9375 in W x 1.0625 in H
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 10975_QG3OWFZJYDX8KPTN.pdf(Spec Sheet URL)
- Spec Sheet URL - CP.pdf(Spec Sheet URL)
- Tech Drawing URL - 10975_AXT4C1QBGVOURY6W.pdf(Tech Drawing URL)
- Tech Drawing URL - R0595.PDF(Tech Drawing URL)
- Video - https://www.youtube.com/embed/SXIDc-w-v9U&t=6s(Video)
- Warranty URL - ILSCO_GGC_2_Warranty.pdf(Warranty URL)
- Applications
- Features
| Post Connector |
| For copper conductors only;Compact design saves space and reduces installation time;Suitable for use in circuits rated 35KV or less;Re-usable for efficient use and flexibility in the field |
| Re-usable |
| Range taking for reduced inventories and flexibility and permits inventories to be kept to a minimum |
| Manufactured from high conductivity copper alloy provides long lasting reliable contact |
| Provides efficient use and flexibility in the field |
| Ensures reliability for copper conductor |
| Compact design saves space and reduces installation time |
| Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used |
| Application versatility |
| 1-stud |
| For copper conductor only |
